Specifications
| Specification |
Details |
| Model |
PA-7050 |
| Firewall Throughput (App-ID Enabled) |
120 Gbps |
| Threat Prevention Throughput (DSRI Enabled) |
100 Gbps |
| Threat Prevention Throughput |
60 Gbps |
| IPSec VPN Throughput |
24 Gbps |
| New Sessions per Second |
720,000 |
| Max Sessions |
24,000,000 |
| Virtual Routers |
225 |
| Virtual Systems (Base/Max) |
25/225 |
| Security Zones |
900 |
| Max. Number of Policies |
40,000 |
Hardware Specifications
| Specification |
Details |
| I/O |
(72) 10/100/1000, (48) Gigabit SFP, (24) 10 Gigabit SFP+ |
| Management I/O |
(2) 10/100/1000, (2) 40Gbps high availability, (1) 10/100/1000 out-of-band management, (1) RJ45 console port |
| Storage Options |
80GB SSD System Drive + 4x1TB HDD on Log Processing Card |
| Storage Capacity |
2TB RAID1 |
| Power Supply (Avg/Max Power Consumption) |
4x2500W AC (2400W / 2700W) |
| Max BTU/hr |
9,213 |
| Input Voltage (Input Frequency) |
200-240VAC (50-60Hz) |
| Max Current Consumption |
12A@240VAC |
| Max Inrush Current |
200A |
| Dimensions |
15.75"H x 19"W x 24"D |
| Safety |
UL, CUL, CB |
| EMI |
FCC Class A, CE Class A, VCCI Class A |
| Operating Temperature |
32° to 122° F, 0° to 50° C |
| Non-Operating Temperature |
-4° to 158° F, -20° to 70° C |

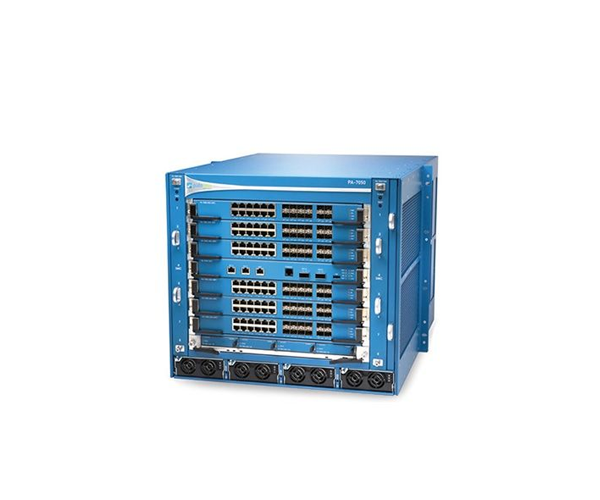

PA-7050 Overview
The PA-7050 protects datacenters and high-speed networks with firewall throughput of up to 120 Gbps and full threat prevention at speeds of up to 100 Gbps. To address the computationally intensive nature of full-stack classification and analysis at speeds of 120 Gbps, more than 400 processors are distributed across networking, security, switch management, and logging functions. The result is that the PA-7050 allows you to deploy next-generation security in your datacenters without compromising performance.
The controlling element of the PA-7050 is PAN-OSTM, a security-specific operating system that natively classifies all traffic, inclusive of applications, threats, and content, then ties that traffic to the user, regardless of location or device type. The application, content, and user—the elements that run your business—are then used as the basis of your security policies, resulting in an improved security posture and a reduction in incident response time. All traffic classification, content inspection, policy lookup, and execution are performed in a single pass. The single pass software architecture, when combined with the processing power of the PA-7050, ensures that you achieve predictable throughput.
Key Security Features
- Application Visibility
- Port numbers, protocols, and IP addresses are useful for network devices, but they tell you nothing about what is on your network. Detailed information about the applications, users, and content traversing your network empowers you to quickly determine any risks they pose and quickly respond. Leveraging the rich context provided by Palo Alto Networks firewalls, our visualization, analysis, and reporting tools let you quickly learn more about activity on your network and analyze incidents from a current or comparative perspective.
- User Visibility
- An integral component for secure application enablement policies. Traditionally, security policies were applied based on IP addresses, but the increasingly dynamic nature of users and applications mean that IP addresses alone have become ineffective as a policy control element for safe application enablement.
- Antivirus
- Network-based Malware Protection. The broadening use of social media, messaging, and other non-work-related applications introduces a variety of vectors for viruses, spyware, worms, and other types of malware. Palo Alto Networks next-generation firewalls allow you to block unwanted applications with App-ID, and then scan allowed applications for malware.
- Data Filtering & File Blocking
- The application function level control, file blocking by type, and data filtering features of our next-generation firewalls allow you to implement a range of policies that help balance permitting the use of personal or non-work-related applications, with the business and security risks of unauthorized file and data transfer.
- Modern Malware Protection
- WildFire: Protection from targeted and unknown threats. Modern attackers are increasingly using targeted and new unknown variants of malware to sneak past traditional security solutions. To address this, Palo Alto Networks developed WildFire, which identifies new malware in minutes. By executing suspect files in a virtual environment and observing their behavior, Palo Alto Networks identifies malware quickly and accurately, even if the malware sample has never been seen before. Once a file is deemed malicious, WildFire automatically generates protections that are delivered to all WildFire subscribers within an hour of detection. A WildFire license provides your IT team with a wealth of forensics to see exactly who was targeted, the application used in the delivery, and any URLs that were part of the attack.
Compare to Similar Items
| Model |
Firewall Throughput (App-ID Enabled) |
Threat Prevention Throughput (DSRI Enabled) |
Threat Prevention Throughput |
IPSec VPN Throughput |
New Sessions per Second |
Max Sessions |
Virtual Systems (Base/Max) |
| PAN-PA-7050 |
120 Gbps |
100 Gbps |
60 Gbps |
24 Gbps |
720,000 |
24,000,000 |
25/225 |
| PAN-PA-7080 |
200 Gbps |
160 Gbps |
100 Gbps |
80 Gbps |
1,200,000 |
80,000,000 |
25/225 |
