Specification
| Specification |
Details |
| Model |
PAN-CG-ION-7000 |
| Description |
ION 7000 Hardware Appliance |
| Use Case |
Large remote office data center |
| Controller Ports |
10/100/1000 RJ45 (2) |
| WAN/LAN/Internet Ports |
10 GE SFP+ (6), 10/100/1000 RJ45 (8) |
| Bypass Pairs |
2 pairs—ports 5/6 and 7/8 |
| Throughput |
Up to 5 Gbps |
| Power and Mechanical |
1+1 redundant PSU 650 W (AC), 90–264 V, 47–63 Hz, Hot swappable fans (4) |
| Certifications |
IEC 60950-1, cULus, FCC & CE Class A, BIS, CCC, KCC |
| Operating Temperature |
32°F to 104°F (0°C to 40°C) |
| Storage Temperature |
-4°F to 158°F (-20°C to 70°C) |
| Operating Humidity (non-condensing) |
5% to 95% |
| Storage Humidity (non-condensing) |
5% to 95% |
| Dimensions (LxWxH) |
21.45” x 17.16” x 1.72” |

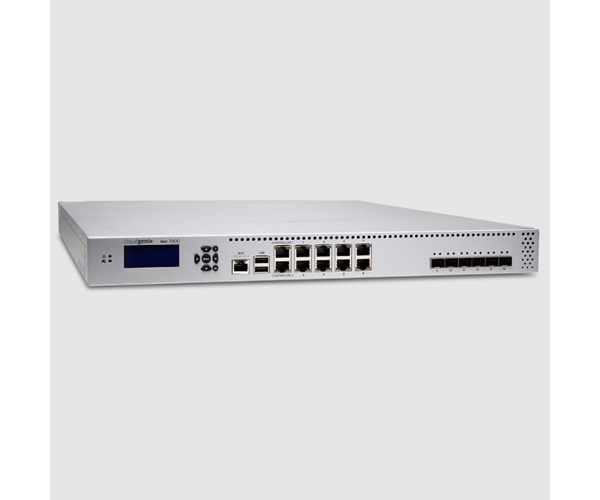

ION 7000 Overview
The Prisma SD-WAN Instant-On Network (ION) models, such as the PAN-CG-ION-7000, are designed to enhance WAN connectivity and performance, improve security and compliance, and reduce WAN complexity and costs. The ION 7000 is tailored for large remote office data centers.
Key Features:
- Deep SD-WAN Analysis: Provides comprehensive insights into WAN health and performance, aiding in network planning, problem resolution, and analytics.
- Network DVR License: Optional license for retaining up to 90 days of statistics, policy, configuration, alarms, and alerts.
- WAN Reporting License: Optional license for access to auto-generated and downloadable reports on utilization trends and network hotspots.
- Zone-based Firewall License: Includes an application-based, zone-based firewall (ZBFW) for securing the WAN perimeter and segmenting traffic within branch sites. Can integrate with on-premises security devices or external, hosted security services.
- Prisma SD-WAN CloudBlades: Platform for API-based integration of the branch CPE, providing centralized programming and app-flow engine at the CPE, access to SD-WAN telemetry, and secure authenticated API access.
- High Availability (HA): Features an industry-leading HA deployment model ensuring 100% WAN capacity even in case of a device failure.
Comparison with Similar Items:
| Model |
PAN-CG-ION-1000 |
PAN-CG-ION-2000 |
PAN-CG-ION-3000 |
PAN-CG-ION-7000 |
PAN-CG-ION-9000 |
| Use Case |
Small remote office |
Small remote office |
Remote office |
Large remote office data center |
Multi-gigabit remote office data center and large campus |
| Controller Ports |
N/A |
10/100/1000 RJ45 (1) |
10/100/1000 RJ45 (2) |
10/100/1000 RJ45 (2) |
10/100/1000 RJ45 (2) |
| WAN/LAN/Internet Ports |
10/100/1000 RJ45 (4) |
10/100/1000 RJ45 (5) |
10/100/1000 RJ45 (up to 12) |
10 GE SFP+ (6), 10/100/1000 RJ45 (8) |
10 GE SFP+ (8), 10/100/1000 RJ45 (8) |
| Bypass Pairs |
N/A |
1 pair—ports 4/5 |
6 pairs—all ports |
2 pairs—ports 5/6 and 7/8 |
4 pairs—ports 1/2, 3/4, 5/6, 7/8 |
| Throughput |
Up to 100 Mbps |
Up to 250 Mbps |
Up to 500 Mbps |
Up to 5 Gbps |
Up to 10 Gbps |
| Power and Mechanical |
36 W power adapter (AC), 100–240 V, 50–60 Hz, Fanless |
60 W power adapter (AC), 100–240 V, 50–60 Hz, Fanless |
1 PSU 150 W (AC), 100–240 V, 50–60 Hz, Smart fan |
1+1 redundant PSU 650 W (AC), 90–264 V, 47–63 Hz, Hot swappable fans (4) |
1+1 Hot swappable redundant PSU 450 W (AC), 100-240 V 50-60 Hz, Hot swappable fans (4) |
