Specification
| Specification |
Details |
| Product Code |
PAN-M-600 |
| Description |
Palo Alto Networks M-600 chassis with 16TB storage (4x8TB RAID certified drives) and 4 post rack mount rails |
| Power Supplies |
Two 750W AC power supplies; the second power supply is for redundancy |
| Input Voltage and Frequency |
100-240VAC (50-60Hz) |
| Power Consumption |
486W |
| Maximum Current Consumption |
4.5A@240VAC |
| Maximum Inrush Current (per power supply) |
35A |
| Storage |
16TB (4x8TB RAID certified drives) |
| Form Factor |
2U Rack-mountable |
| I/O Ports |
4 Ethernet ports, 1 IPMI port, 1 console port, USB ports, SFP+ ports |

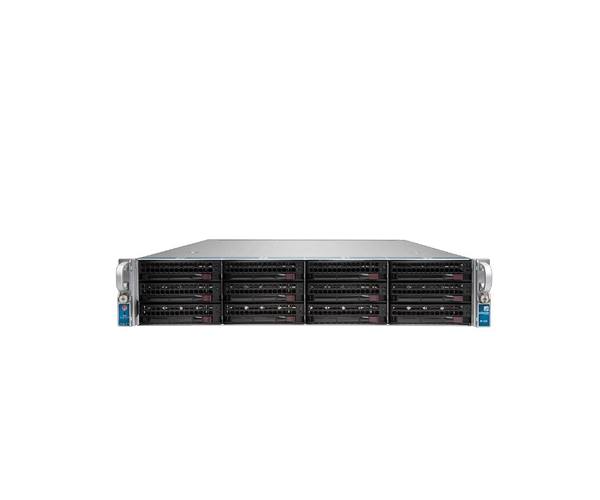

M-600 Overview
The Palo Alto Networks M-600 appliance is a versatile, multi-function device designed to meet various network security management needs. It can be configured to operate in Panorama Management mode, Panorama Management-only mode, Panorama Log Collector mode, or PAN-DB Private Cloud mode (M-600 only).
Key Features:
- Flexible Configuration: The M-600 can be set up to function in multiple modes depending on the network security requirements, offering flexibility and scalability.
- High Storage Capacity: Equipped with 16TB of storage (4x8TB RAID certified drives), it ensures ample space for logging and management data.
- Redundant Power Supplies: Comes with two 750W AC power supplies to ensure redundancy and uninterrupted operation.
- Efficient Power Consumption: Designed to consume 486W of power with a maximum current consumption of 4.5A@240VAC, ensuring energy efficiency.
Front Panel Overview:
- Power button
- Reset button
- Power LED
- Power failure LED
- Hard-disk drive (HDD) LED
- System information (overheat and UID) LED
- Hard-disk drives (HDDs)
- Hard-disk drive (HDD) LEDs
Back Panel Overview:
- System drive
- Power supplies
- Ethernet ports
- USB ports
- IPMI port
- Console port
- Unique Identification (UID) button and LED
- SFP+ ports
Comparison with Similar Items:
| Model |
PAN-M-200 |
PAN-M-600 |
| Description |
Palo Alto Networks M-200, 16TB RAID storage (4x8TB RAID certified drives preinstalled). Rack mount rails included. |
Palo Alto Networks M-600 chassis with 16TB storage (4x8TB RAID certified drives) and 4 post rack mount rails |
| Power Supplies |
Two 750W AC power supplies; the second power supply is for redundancy. |
Two 750W AC power supplies; the second power supply is for redundancy. |
| Input Voltage and Frequency |
100-240VAC (50-60Hz) |
100-240VAC (50-60Hz) |
| Power Consumption |
330W |
486W |
| Maximum Current Consumption |
9.5A@100VAC |
4.5A@240VAC |
| Maximum Inrush Current (per power supply) |
35A |
35A |
