Specification
| Specification |
Details |
| Model |
PAN-CG-ION-9000 |
| Description |

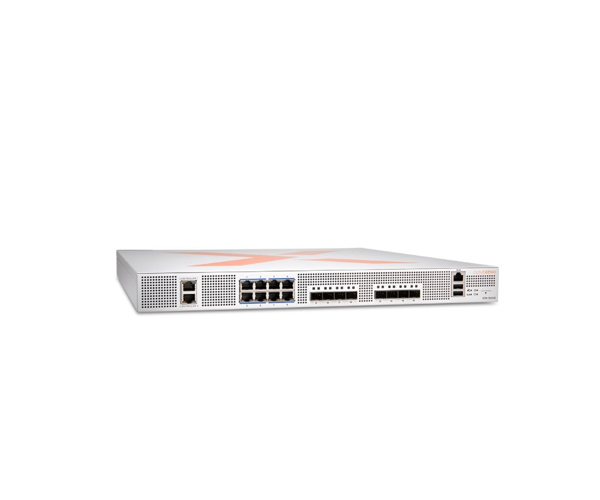

ION 9000 Hardware Appliance |
| Use Case |
Multi-gigabit remote office data center and large campus |
| Controller Ports |
10/100/1000 RJ45 (2) |
| WAN/LAN/Internet Ports |
10 GE SFP+ (8), 10/100/1000 RJ45 (8) |
| Bypass Pairs |
4 pairs—ports 1/2, 3/4, 5/6, 7/8 |
| Throughput |
Up to 10 Gbps |
| Power and Mechanical |
1+1 Hot swappable redundant PSU 450 W (AC), 100-240 V 50-60 Hz, Hot swappable fans (4) |
| Certifications |
IEC 60950-1, cULus, FCC & CE Class A |
| Operating Temperature |
32°F to 104°F (0°C to 40°C) |
| Storage Temperature |
-4°F to 158°F (-20°C to 70°C) |
| Operating Humidity (non-condensing) |
5% to 90% |
| Storage Humidity (non-condensing) |
5% to 95% |
| Dimensions (LxWxH) |
17.2” x 19.69” x 1.73” |
ION 9000 Overview
The Prisma SD-WAN Instant-On Network (ION) models, such as the PAN-CG-ION-9000, are designed to enhance WAN connectivity and performance, improve security and compliance, and reduce WAN complexity and costs. The ION 9000 is tailored for multi-gigabit remote office data centers and large campus environments.
Key Features:
- Deep SD-WAN Analysis: Provides comprehensive insights into WAN health and performance, aiding in network planning, problem resolution, and analytics.
- Network DVR License: Optional license for retaining up to 90 days of statistics, policy, configuration, alarms, and alerts.
- WAN Reporting License: Optional license for access to auto-generated and downloadable reports on utilization trends and network hotspots.
- Zone-based Firewall License: Includes an application-based, zone-based firewall (ZBFW) for securing the WAN perimeter and segmenting traffic within branch sites. Can integrate with on-premises security devices or external, hosted security services.
- Prisma SD-WAN CloudBlades: Platform for API-based integration of the branch CPE, providing centralized programming and app-flow engine at the CPE, access to SD-WAN telemetry, and secure authenticated API access.
- High Availability (HA): Features an industry-leading HA deployment model ensuring 100% WAN capacity even in case of a device failure.
Comparison with Similar Items:
| Model |
PAN-CG-ION-1000 |
PAN-CG-ION-2000 |
PAN-CG-ION-3000 |
PAN-CG-ION-7000 |
PAN-CG-ION-9000 |
| Use Case |
Small remote office |
Small remote office |
Remote office |
Large remote office data center |
Multi-gigabit remote office data center and large campus |
| Controller Ports |
N/A |
10/100/1000 RJ45 (1) |
10/100/1000 RJ45 (2) |
10/100/1000 RJ45 (2) |
10/100/1000 RJ45 (2) |
| WAN/LAN/Internet Ports |
10/100/1000 RJ45 (4) |
10/100/1000 RJ45 (5) |
10/100/1000 RJ45 (up to 12) |
10 GE SFP+ (6), 10/100/1000 RJ45 (8) |
10 GE SFP+ (8), 10/100/1000 RJ45 (8) |
| Bypass Pairs |
N/A |
1 pair—ports 4/5 |
6 pairs—all ports |
2 pairs—ports 5/6 and 7/8 |
4 pairs—ports 1/2, 3/4, 5/6, 7/8 |
| Throughput |
Up to 100 Mbps |
Up to 250 Mbps |
Up to 500 Mbps |
Up to 5 Gbps |
Up to 10 Gbps |
| Power and Mechanical |
36 W power adapter (AC), 100–240 V, 50–60 Hz, Fanless |
60 W power adapter (AC), 100–240 V, 50–60 Hz, Fanless |
1 PSU 150 W (AC), 100–240 V, 50–60 Hz, Smart fan |
1+1 redundant PSU 650 W (AC), 90–264 V, 47–63 Hz, Hot swappable fans (4) |
1+1 Hot swappable redundant PSU 450 W (AC), 100-240 V 50-60 Hz, Hot swappable fans (4) |
