Specification
| Specification |
Details |
| Model |
PAN-M-200 |
| Description |
Palo Alto Networks M-200, 16TB RAID storage (4x8TB RAID certified drives preinstalled). Rack mount rails included |
| Rack units (U) and dimensions |
1U, 1.7” H x 29” D x 17.2” W (4.32cm H x 73.67cm D x 43.69cm W) |
| Power Supplies |
Two 750W AC power supplies; the second power supply is for redundancy |
| Input Voltage and Frequency |
100-240VAC (50-60Hz) |
| Power Consumption |
330W |
| Maximum Current Consumption |
9.5A@100VAC |
| Maximum Inrush Current (per power supply) |
35A |
| Operating Temperature Range |
41°F to 104°F (5°C to 40°C) |
| Non-Operating Temperature |
-40°F to 140°F (-40°C to 60°C) |
| Humidity Tolerance |
Operating relative humidity (noncondensing)—8% to 90%; Non-operating relative humidity (noncondensing)—5% to 95% |
| Airflow |
Front-to-back |
| Maximum BTU/hr |
1,114 BTU/hr (127VAC); 1,090 BTU/hr (240VAC) |
| Electromagnetic Interference (EMI) |
FCC Part 15, EN 55032, CISPR 32 |
| Maximum Operating Altitude |
7,500ft (2,286m) |

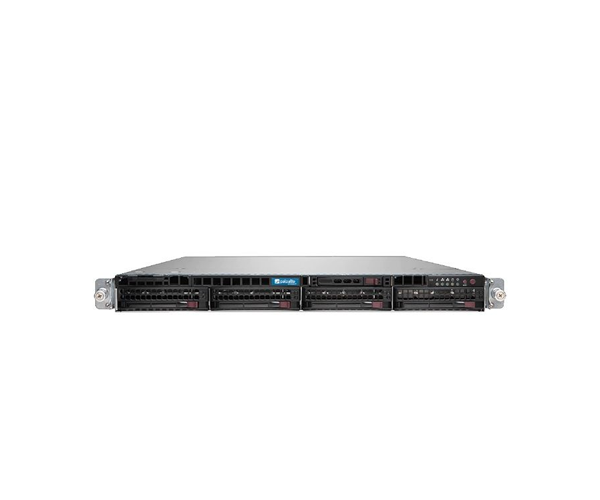

M-200 Overview
The Palo Alto Networks M-200 appliance is a versatile multi-function device designed to provide robust network security management. It can be configured to operate in Panorama Management mode, Panorama Management-only mode, Panorama Log Collector mode, or PAN-DB Private Cloud mode (M-600 only).
Key Features:
- Versatile Functionality: Can be configured in various modes to suit different network management needs, ensuring flexibility and scalability.
- High Storage Capacity: Equipped with 16TB of RAID storage (4x8TB RAID certified drives) to handle extensive logging and data storage requirements.
- Redundant Power Supplies: Comes with two 750W AC power supplies for redundancy, ensuring continuous operation even if one power supply fails.
- Efficient Power Consumption: Consumes 330W of power, making it energy efficient.
- Wide Operating Temperature Range: Can operate in a temperature range of 41°F to 104°F (5°C to 40°C), suitable for various environments.
Front Panel Overview:
- System drive
- Unique Identification (UID) button
- System information (overheat and UID) LED
- Network activity LEDs
- Hard-disk drive (HDD) LED
- Power LED
- Reset button
- Power button
- Hard-disk drives (HDDs)
- Hard-disk drive (HDD) LEDs
Back Panel Overview:
- Power supplies
- Ethernet ports
- USB ports
- IPMI port
- Console port
- Unique Identification (UID) LED
Comparison with Similar Items:
| Model |
PAN-M-200 |
PAN-M-600 |
| Description |
Palo Alto Networks M-200, 16TB RAID storage (4 8TB RAID certified drives preinstalled). Rack mount rails included. |
Palo Alto Networks M-600 chassis with 16TB storage (4x8TB RAID certified drives) and 4 post rack mount rails |
| Power Supplies |
Two 750W AC power supplies; the second power supply is for redundancy. |
Two 750W AC power supplies; the second power supply is for redundancy. |
| Input Voltage and Frequency |
100-240VAC (50-60Hz) |
100-240VAC (50-60Hz) |
| Power Consumption |
330W |
486W |
| Maximum Current Consumption |
9.5A@100VAC |
4.5A@240VAC |
| Maximum Inrush Current (per power supply) |
35A |
35A |
