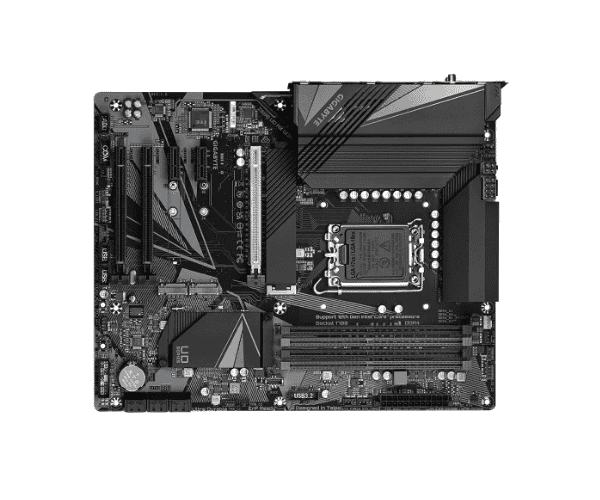

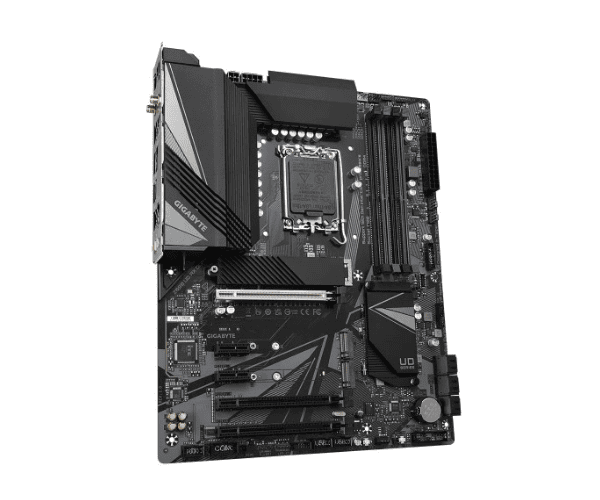

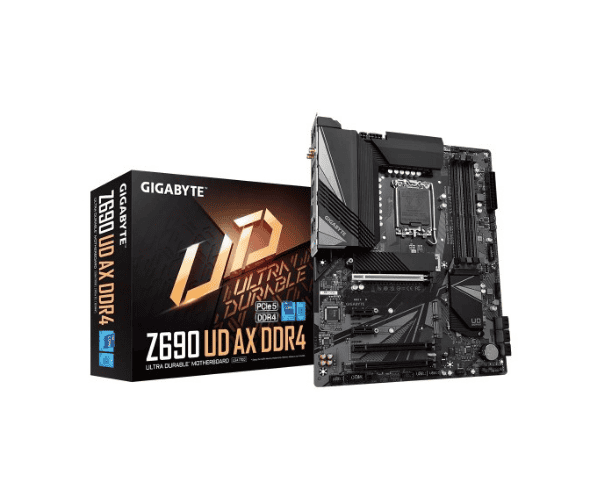

About the GIGABYTE Z690 UD AX DDR4 ATX Motherboard
The
GIGABYTE Z690 UD AX DDR4 ATX Motherboard features support for Intel's 14th, 13th, and 12th Gen Core processors, utilizing an LGA1700 socket. This would be great for high-performance computing with three PCIe 4.0 x4 M.2 slots and dual-channel DDR4 memory support. Further, it equips with the best connectivity, including Wi-Fi 6 by Intel for high-performance gaming.
Specification
| Specification |
Details |
| Brand |
GIGABYTE |
| Model |
Z690 UD AX |
| Supported CPU |
Intel 14th/13th/12th Gen Core (LGA1700) |
| Chipset |
Intel Z690 Express Chipset |
| Form Factor |
ATX (30.5 cm x 24.4 cm) |
| Memory Type |
DDR4 |
| Maximum Memory Support |
Up to 128GB (32GB per DIMM) |
| Graphics Outputs |
1 x HDMI, 1 x DisplayPort |
| Expansion Slots |
1 x PCIe x16 (PCIe 5.0), 1 x PCIe x16 (PCIe 3.0), 1 x PCIe x1 (PCIe 3.0) |
| USB Ports |
1 x USB Type-C, 1 x USB 3.2 Gen 2x2, 6 x USB 3.2 Gen 1, 8 x USB 2.0 |
| LAN |
Realtek 2.5GbE Ethernet |
| Wi-Fi |
Intel Wi-Fi 6 802.11ax, Bluetooth 5.2 |
| Storage Support |
3 x M.2 PCIe 4.0, 6 x SATA 6Gb/s |
| RAID Support |
RAID 0, RAID 1, RAID 5, RAID 10 |
| Audio |
Realtek Audio CODEC, 2/4/5.1/7.1-channel HD Audio |
| Internal I/O |
Multiple connectors including USB, SATA, and RGB headers |

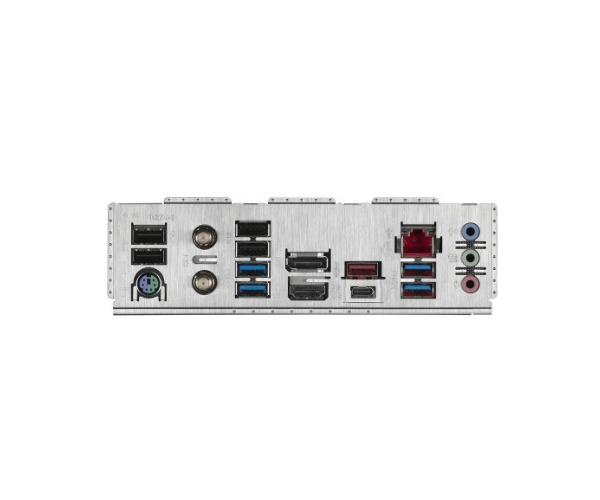

| Back Panel Connectors |
1 x USB Type-C, 1 x HDMI, 1 x DisplayPort, 4 x USB 3.2, 4 x USB 2.0, 1 x RJ-45, 3 x audio jacks |
| Special Features |
Wi-Fi 6, Bluetooth 5.2, Q-Flash Plus, RGB Fusion |
| Bundled Software |
Norton Internet Security, Realtek Gaming LAN Bandwidth Control Utility |
Description
GIGABYTE Z690 UD AX DDR4 ATX Motherboard in Bangladesh
The
GIGABYTE Z690 UD AX DDR4 ATX Motherboard is available in Bangladesh. It is a strong motherboard for gamers, content creators, and professionals to take full advantage of Intel's latest 12th Gen processors. With high-speed connectivity options and support for advanced storage technologies, this motherboard delivers premium performance.
User Experience of GIGABYTE Z690 UD AX DDR4 ATX Motherboard
A lot of users appreciate the
GIGABYTE Z690 UD AX DDR4 ATX Motherboard as delivering fantastic gaming and video editing, even for content creations performance. In addition, the Intel CPU is used at its best version in order to overcome challenging tasks very smoothly while it allows users to have a very high speed regarding its slots due to PCIe 4.0. Furthermore, onboard Intel Wi-Fi 6 enables fast, reliable internet connections, even during heavy network traffic. Users also report a smooth and easy setup process, thanks to the clear and intuitive BIOS interface.
Why Choose This GIGABYTE Z690 UD AX DDR4 ATX Motherboard?
The
GIGABYTE Z690 UD AX DDR4 ATX Motherboard offers outstanding value and performance for users seeking a reliable and future-proof system. From 12th, 13th, and up to 14th Gen Intel processors are supported on this motherboard, so users can go for a powerful PC without having any compromise on specifications. The PCIe 5.0 slots ensure that you have the most current interface available for your graphics card, and the integrated Intel Wi-Fi 6E facilitates the fastest available wireless speeds. It's perfect for gamers and pros who want their system to churn out the maximum performance.
Key Features
- Intel 12th Gen CPU Support: The GIGABYTE Z690 UD AX DDR4 ATX Motherboard is compatible with Intel’s 14th, 13th, and 12th Gen Core processors, delivering top-tier processing power.
- PCIe 5.0 Support: This motherboard features PCIe 5.0 slots for next-gen GPUs and SSDs, ensuring high-speed performance and future-proofing your system.
- Wi-Fi 6 and Bluetooth 5.2: Integrated Intel Wi-Fi 6 and Bluetooth 5.2 support fast, reliable wireless connections that ensure lag-free gaming and content streaming.
- DDR4 Memory: Support for up to 128 GB of DDR4 RAM at speeds of up to 5333 MHz (OC), ensuring smooth multitasking and high-performance applications.
- Multiple Storage Options: With a total of 3 x M.2 PCIe 4.0 slots and 6 x SATA 6Gb/s connectors, this motherboard provides numerous options for rapid and vast storage configurations.
- RAID Support: RAID 0, RAID 1, RAID 5, and RAID 10 for better storage performance and redundancy
- Customizable RGB Lighting: RGB Fusion 2.0 fully customizable to match your theme
- Q-Flash Plus: Updates BIOS from the UEFI BIOS without using a CPU, memory, or graphics card
Installation Steps of GIGABYTE Z690 UD AX DDR4 ATX Motherboard
- Prepare Workspace: Keep a Clean and Static-Free Environment for Your PC Build.
- Mount CPU: Plug in the Intel 12th Gen processor into the LGA1700 socket correctly.
- Mount the RAM: Install DDR4 memory modules to DIMM slots by forcing firmly to make it snap.
- Mount the CPU Cooler: Install CPU cooler which is the primary mechanism that dissipates the heat in a CPU.
- Install with a dot of thermal paste applied between.
- Install Motherboard: Use supplied screws and install motherboard inside your case.
- Install Storage Devices: Install your M.2 SSDs into the PCIe 4.0 slots and other SATA drives into the SATA connectors.
- Install Expansion Cards: Install your GPU and other PCIe cards into the appropriate slots.
- Connect Power Cables: Connect the 24-pin ATX and 8-pin CPU power connectors coming from your PSU.
- Connect Internal Headers: Connect the front panel, USB, and other internal headers according to the motherboard manual.
- Power On: The system is turned on, and the BIOS is entered to configure settings before booting the operating system.
Why Buy From Crystal Vision Solution?
Crystal Vision Solution offers the
GIGABYTE Z690 UD AX DDR4 ATX Motherboard at competitive prices with excellent customer service and expert support. We ensure timely delivery, secure payments, and hassle-free returns, making it easy to purchase with confidence from a trusted supplier for your PC build.
What is the Price of the GIGABYTE Z690 UD AX DDR4 ATX Motherboard in Bangladesh?
The latest price of
Gigabyte Z690 UD AX DDR4 ATX Motherboard in Bangladesh depends on quantity.
Crystal Vision Solution ensures this motherboard has the best market price in Bangladesh. Our product is 100% original and lowest price in Bangladesh. All kinds of services are the best in Bangladesh, and contact us for any information and latest price.
