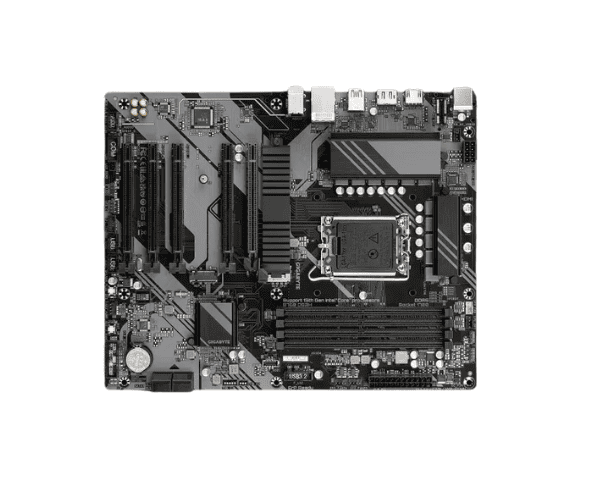

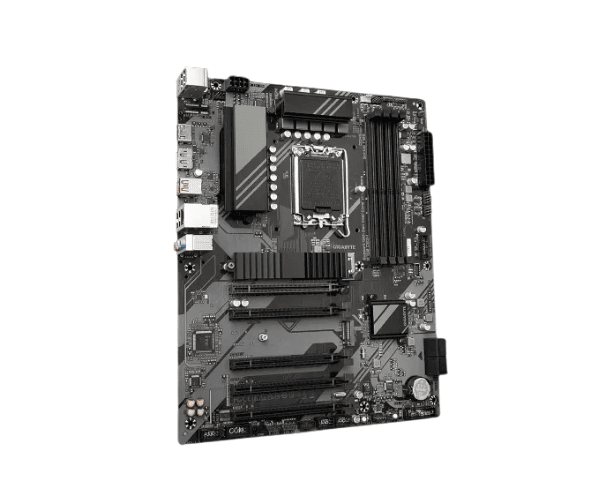

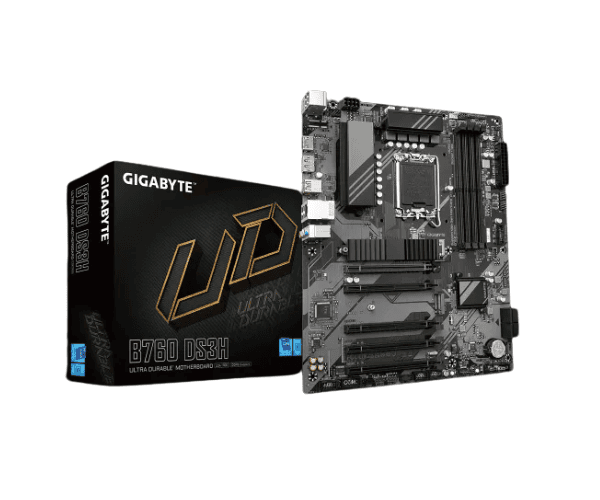

About the GIGABYTE B760 DS3H ATX Motherboard
The
GIGABYTE B760 DS3H ATX Motherboard is one of the perfect selections for Intel processors of the 12th and 13th generation. This model will offer great performance, stability, and expandability, as it supports PCIe 4.0, DDR4 memory up to 128 GB, and has a number of storage options available. Reliable and efficient solution for gaming, productivity, general computing.
Specification
| Specification |
Details |
| Brand |
GIGABYTE |
| Model |
B760 DS3H ATX |
| Supported CPU |
Intel 12th and 13th Gen Core i9/i7/i5/i3, Pentium Gold, Celeron (LGA1700) |
| Chipset |
Intel B760 Express Chipset |
| Form Factor |
ATX (30.5 cm x 24.4 cm) |
| Memory Type |
DDR4 |
| Maximum Memory Support |
Up to 128GB (32GB per DIMM) |
| Graphics Outputs |
1 x HDMI, 1 x DisplayPort, 1 x D-Sub |
| Expansion Slots |
1 x PCIe x16 (PCIe 4.0), 2 x PCIe x1 (PCIe 3.0) |
| USB Ports |
1 x USB Type-C, 5 x USB 3.2 Gen 1, 2 x USB 2.0 |
| LAN |
Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| Storage Support |
2 x M.2 PCIe 4.0, 4 x SATA 6Gb/s |
| RAID Support |
RAID 0, RAID 1, RAID 5, RAID 10 |
| Audio |
Realtek Audio CODEC, HD Audio, 2/4/5.1/7.1-channel |
| Internal I/O |
1 x 24-pin ATX, 1 x 8-pin ATX 12V, 4 x SATA, 1 x M.2 |

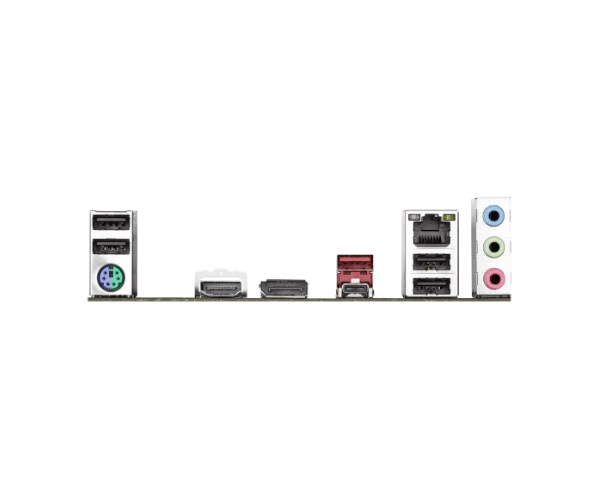

| Back Panel Connectors |
2 x USB 2.0/1.1, 1 x PS/2, 1 x HDMI, 1 x DisplayPort, 3 x USB 3.2, 1 x RJ-45, 3 x audio jacks |
| Special Features |
GIGABYTE Control Center, Q-Flash Plus, RGB Fusion |
| Bundled Software |
Norton Internet Security, LAN bandwidth management |
Description
GIGABYTE B760 DS3H ATX Motherboard in Bangladesh
The
GIGABYTE B760 DS3H ATX Motherboard is available in Bangladesh. It is a powerful means for users to fulfill their computing needs. This motherboard features Intel's 12th and 13th Generation processors, PCIe 4.0, and high-speed storage, making it ideal for gamers and professionals alike. It provides high performance and reliability for all your tasks.
User Experience of GIGABYTE B760 DS3H ATX Motherboard
User review: The
GIGABYTE B760 DS3H ATX Motherboard is an outstanding performance, value, and build quality. Installation is easy with stability on demanding applications. This supports great results in general office work, and the gaming and video editing performance was great. Configuration of several connectivity options such as USB Type-C, PCIe 4.0, and multi-graphic outputs is also allowed.
Why This GIGABYTE B760 DS3H ATX Motherboard?
This
GIGABYTE B760 DS3H ATX motherboard is the perfect building block for people who are creating a budget high-performance PC. With the options of Intel 12th and 13th Gen CPU, PCIe 4.0 compatibility, and numerous connectivity options, this unit is best suited for any gamer, professional, or DIYer. It supports up to 128GB DDR4 memory and supports multiple storage solutions so that it may serve all demanding tasks that might arise in the future, be it gaming, multitasking, or content creation. This motherboard also provides RAID support, RGB Fusion, and easier BIOS update that makes it much more versatile and future-proof.
Key Features
- Intel 12th and 13th Gen CPU Support: The GIGABYTE B760 DS3H ATX Motherboard supports the latest Intel Core processors (i9, i7, i5, i3, Pentium Gold, Celeron).
- PCIe 4.0: The PCIe 4.0 slot provides fast data transfer speeds for GPUs and NVMe SSDs, making it ideal for gaming and high-performance tasks.
- DDR4 Memory Support: The motherboard supports up to 128GB of DDR4 memory for smooth multitasking and high-speed computing.
- Multiple Graphics Outputs: Supports HDMI, DisplayPort, and D-Sub for a wide range of display configurations.
- Storage Expansion: The motherboard provides ample storage options with 2 x M.2 PCIe slots and 4 x SATA 6Gb/s connectors for SSDs and hard drives.
- RAID Support: The motherboard supports RAID 0, RAID 1, RAID 5, and RAID 10 for efficient data redundancy and performance.
- GIGABYTE Control Center: The motherboard comes with GIGABYTE's software suite to customize and monitor your system.
How to Install GIGABYTE B760 DS3H ATX motherboard
- Prepare the Workspace: Put on an anti-static wristband and ensure that your workspace is free of dust and debris.
- Install the Processor: Place the Intel processor into the LGA1700 socket. Ensure that it is aligned.
- Apply Thermal Paste: Apply a small amount of thermal paste to the CPU for optimal cooling.
- Install Memory Modules: Place the DDR4 RAM into the DIMM slots. It will be locked into place once it clicks.
- Mount the Motherboard: Mount the motherboard into the PC case, aligning it with the standoffs, and screw it in.
- Connect Power Cables: Attach the 24-pin and 8-pin power cables from the PSU to the motherboard.
- Install Storage Devices: Place the SSDs and hard drives into the M.2 slots and SATA ports.
- Install Expansion Cards: Install the GPU or other expansion cards into the PCIe x16 slots.
- Internal Headers: Connect the front panel, USB, audio, and other internal connectors.
- Power On: Power on the system, enter BIOS, and set your settings.
Why Buy From Crystal Vision Solution?
Crystal Vision Solution offers the
GIGABYTE B760 DS3H ATX motherboard at competitive prices with excellent customer service and expert support. We ensure timely delivery, secure payments, and hassle-free returns, making it easy to purchase with confidence from a trusted supplier for your PC build.
What is the Price of the GIGABYTE B760 DS3H ATX motherboard in Bangladesh?
The latest price of
Gigabyte B760 DS3H ATX motherboard in Bangladesh depends on quantity.
Crystal Vision Solution ensures this motherboard has the best market price in Bangladesh. Our product is 100% original and lowest price in Bangladesh. All kinds of services are the best in Bangladesh, and contact us for any information and latest price.
