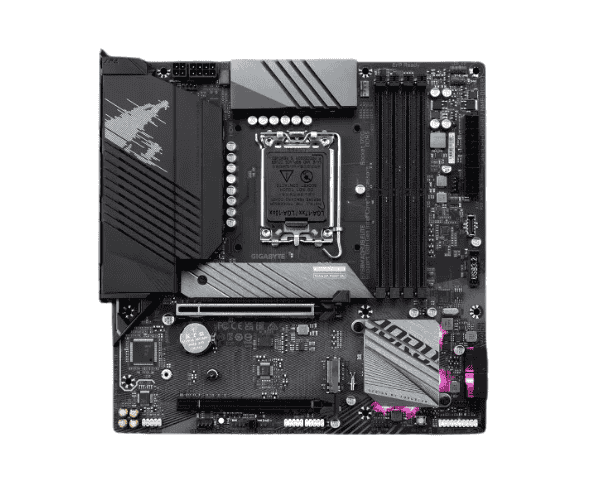

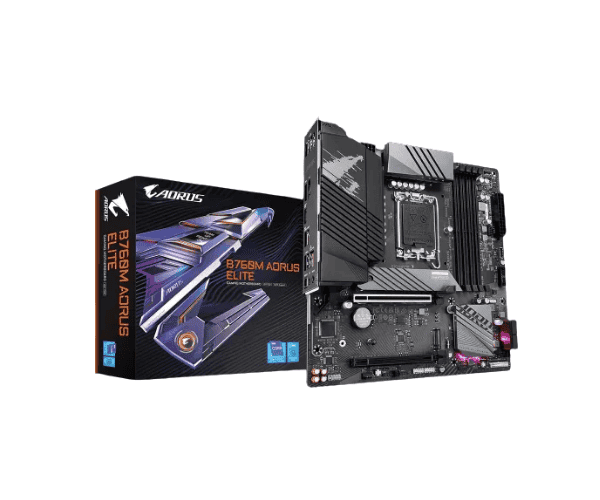

About the GIGABYTE B760M AORUS ELITE DDR5 mATX Motherboard
High-performance gaming or professional use is adequately covered by Intel's 12th, 13th, and 14th Generation processors with
GIGABYTE B760M AORUS ELITE DDR5 mATX Motherboard. Some other great add-ons to this motherboard, including DDR5 memory support, PCIe 4.0, and 2.5GbE LAN-are ensuring advanced connectivity options so your next PC build gets a very strong backbone.
Specification
| Feature |
Details |
| Brand |
GIGABYTE |
| Model |
B760M AORUS ELITE DDR5 |
| Form Factor |
Micro ATX (24.4 cm x 24.4 cm) |
| Supported CPU |
14th/13th/12th Gen Intel Core, Pentium Gold, and Celeron processors (LGA1700) |
| Chipset |
Intel B760 Express Chipset |
| Memory Slots |
4 x DDR5, Max 192GB (up to 7600(OC)) |
| Expansion Slots |
1 x PCIe x16 (PCIe 4.0, running at x16) |
|
1 x PCIe x16 (PCIe 4.0, running at x4) |
|
Supports AMD CrossFireX technology |
| Graphics Output |
1 x HDMI (4096x2160@60Hz), 1 x DisplayPort (4096x2304@60Hz) |
| USB Ports |
1 x USB Type-C (3.2 Gen 2x2) |
|
1 x USB Type-C (3.2 Gen 2, internal) |
|
1 x USB 3.2 Gen 2 Type-A (red, rear) |
|
1 x USB 3.2 Gen 1 (rear) |
|
4 x USB 2.0/1.1 (internal) |
|
4 x USB 3.2 Gen 1 (internal) |
| Networking |
Realtek 2.5GbE LAN (2.5Gbps/1Gbps/100Mbps) |
| Storage |
1 x M.2 PCIe 4.0 x4 (Socket 3, M key, type 2280/22110/2280 SSD) |
|
4 x SATA 6Gb/s connectors |
| RAID Support |
RAID 0, RAID 1, RAID 5, RAID 10 for SATA devices |
| Audio |
Realtek Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel |
| Internal I/O Ports |
1 x 24-pin ATX main power connector |
|
1 x 8-pin ATX 12V power connector |
|
1 x CPU fan header |
|
3 x system fan headers |
|
2 x addressable LED strip headers |
|
2 x RGB LED strip headers |
|
2 x M.2 Socket 3 connectors |
|
4 x SATA 6Gb/s connectors |
|
1 x front panel header |
|
1 x USB Type-C header (with USB 3.2 Gen 2 support) |
| Special Features |
Support for GIGABYTE Control Center (GCC) |
|
Q-Flash and Q-Flash Plus |
| Dimensions |
24.4 cm x 24.4 cm |
| Operating System |
Windows 10/11 |
Description
GIGABYTE B760M AORUS ELITE DDR5 mATX Motherboard in Bangladesh
The
GIGABYTE B760M AORUS ELITE DDR5 mATX Motherboard is also very much available within the premises of Bangladesh. It will go well with advanced and power-based motherboards in case one needs it for gaming purposes or professional work. Introduction of Intel's newest processors along with this model and high-speed memory, this can be a great option for gamers and enthusiasts in search of the best regarding performance.
User Experience with GIGABYTE B760M AORUS ELITE DDR5 mATX Motherboard
Reviews note that the
GIGABYTE B760M AORUS ELITE DDR5 mATX Motherboard has extremely high satisfaction in gaming and high-power computing. The motherboard will assure users with heavy workloads of smooth gameplay and fast data transfer due to solid performance. From what is expected, this must be ideal for users who need speed-reliability because it does support DDR5 high-speed memory and 2.5GbE LAN.
Why Is It Worth Using the GIGABYTE B760M AORUS ELITE DDR5 mATX Motherboard?
The
GIGABYTE B760M AORUS ELITE DDR5 mATX Motherboard is for high-demand applications, assuring super performance in both gaming and productivity. Equipped with the latest Intel 12th, 13th, and 14th Generation processors, this is top-notch processing. Further, it includes DDR5 memory support up to 192GB for top speed in heavy multitasking and gaming. The PCIe 4.0 slots offer faster data transfer, while the 2.5GbE LAN allows for quicker networking. Moreover, it comes with Wi-Fi 6 and Bluetooth 5.2 for great modern and speedy computing.
Key Features
- DDR5 Memory Support: Supports high-speed DDR5 memory, providing improved performance and efficiency, with a maximum capacity of 192GB.
- Intel 12th/13th/14th Generation CPU Compatibility: Fully compatible with the latest processors of Intel at the LGA 1700 socket, ensuring the latest in processing power.
- PCIe 4.0 Slots: The two PCIe x16 slots run at x16 and x4, respectively, for faster data transfer and can accommodate demanding graphics cards.
- 2.5GbE LAN Chip: Equipped with Realtek 2.5GbE LAN for the faster network connection, this gaming motherboard is designed with lag-free online gaming and data transfer in mind.
- Advanced connectivity options include USB 3.2 Gen 2x2, USB Type-C, and high-speed USB.
- Dual Display Outputs: Support for two displays through either HDMI or DisplayPort outputs makes for a solid multi-monitor experience-up to 4K.
- RAID Support: Supporting RAID 0, 1, 5 and 10 configurations allows for optimization of storage performance and redundancy.
Installation Steps of GIGABYTE B760M AORUS ELITE DDR5 mATX Motherboard
- Prepare the Case: Prepare the case for installation by having enough room for the motherboard.
- Installation of the CPU: Carefully install the processor of the 12th, 13th, or 14th Gen Intel CPU into the LGA 1700 socket.
- Install the RAM: Install the DDR5 memory into the DIMM slots of the motherboard.
- Secure the Motherboard: Place the motherboard into the case and screw it in.
- Connect Power: Connect the 24-pin ATX power and 8-pin CPU power connectors to the motherboard.
- Install Storage: Install your M.2 SSD or SATA drives in the appropriate slots.
- Installation of Expansion Cards: Add any PCIe expansion cards required, along with a SATA power connection if required.
- Peripheral Installation: Hook up all required peripherals and I/O devices like USB, front panel, and audio connectors.
- Power it Up: Fire the system, get into BIOS, setting up what must be, inclusive of performance memory profiles, if possible.
Why Buy From Crystal Vision Solution?
Crystal Vision Solution offers the
GIGABYTE B760M AORUS ELITE DDR5 mATX Motherboard at competitive prices with excellent customer service and expert support. We ensure timely delivery, secure payments, and hassle-free returns, making it easy to purchase with confidence from a trusted supplier for your PC build.
What is the Price of the GIGABYTE B760M AORUS ELITE DDR5 mATX Motherboard in Bangladesh?
The latest price of
Gigabyte B760M AORUS ELITE DDR5 mATX Motherboard in Bangladesh depends on quantity.
Crystal Vision Solution ensures this motherboard has the best market price in Bangladesh. Our product is 100% original and lowest price in Bangladesh. All kinds of services are the best in Bangladesh, and contact us for any information and latest price.
