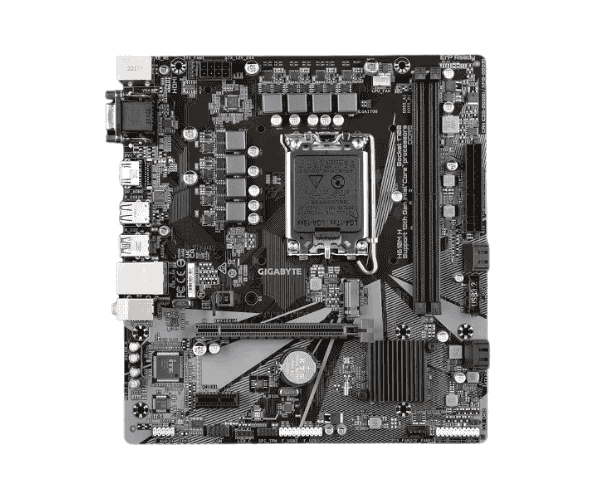

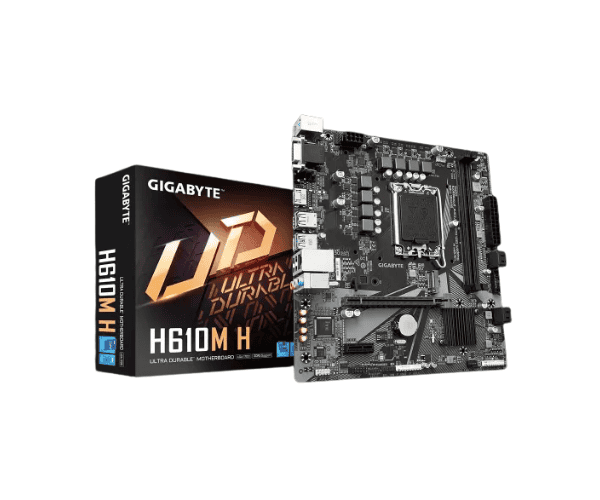

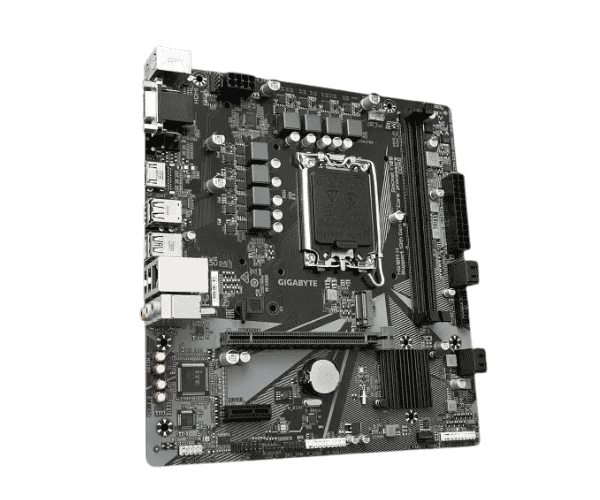

About the GIGABYTE H610M H DDR5 mATX Motherboard
The
GIGABYTE H610M H DDR5 mATX Motherboard is a perfect one for the high-performance computers building with state-of-the-art technology. It is very performing and reliable, with the support of processors from 12th, 13th, and 14th generations of Intel. Moreover, it supports an LGA1700 socket fitted with DDR5 RAM to enhance data processing at speeds not achievable by modules previously. With PCIe 4.0 setup, a motherboard for even faster graphics performance with a bunch of USB ports and a variety of storage options.
Specification
| Feature |
Details |
| Brand |
GIGABYTE |
| Model |
H610M H DDR5 |
| Chipset |
Intel® H610 Express Chipset |
| Socket Type |
LGA 1700 |
| CPU Support |
Intel® 12th, 13th, and 14th Gen Core i9, i7, i5, i3, Pentium®, Celeron® |
| Memory Type |
DDR5 |
| Memory Slots |
2 x DDR DIMM slots |
| Supported Memory |
DDR5 4800(O.C.) / 5200(O.C.) / 5600(O.C.) / 6000(O.C.) / 6400(O.C.) / 7600(O.C.) |
| Maximum Memory |
Up to 64GB (32GB per DIMM) |
| Graphics |
Intel® HD Graphics, 1 x HDMI, 1 x D-Sub port |

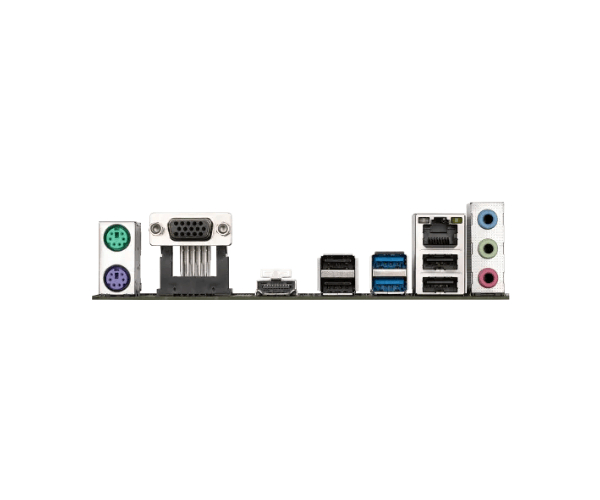

| USB Ports |
4 x USB 3.2 Gen 1, 4 x USB 2.0/1.1 |
| Networking |
Realtek GbE LAN (1Gbps/100Mbps) |
| Storage |
1 x M.2 Connector, 4 x SATA 6Gb/s |
| Audio |
Realtek Audio CODEC, 7.1-Channel High Definition Audio |
| Form Factor |
mATX |
| Power Connectors |
24-pin ATX, 8-pin CPU power connector |
Description
GIGABYTE H610M H DDR5 mATX Motherboard Availability in Bangladesh
The
GIGABYTE H610M H DDR5 mATX Motherboard is widely available in all computer hardware shops of Bangladesh and even in the online marketplace Daraz. Actually, it is a very good option for those users who are searching for high-performance motherboards with advanced and updated features in an economical manner.
User Experience with GIGABYTE H610M H DDR5 mATX Motherboard
Easy to install and reliably working. With wide appreciation from the users, some features included with this
GIGABYTE H610M H DDR5 mATX Motherboard are the newest compatible Intel processors, adding in DDR5 memory for top recommendations on budget builds to deliver some of the strongest possible performance. Meanwhile, PCIe 4.0 connectivity makes this ideal for gamers when it comes to maximizing graphics performance.
Why Choose the GIGABYTE H610M H DDR5 mATX Motherboard
The
GIGABYTE H610M H mATX Motherboard is one heck of a motherboard in terms of reliability and performance for those on a very tight budget. It features the latest support for Intel 12th, 13th, and 14th Generation Processors and also has the next generation DDR5. This model will let users enjoy high performance, rapid speed, PCIe 4.0 for premium graphics, and a wealth of connectivity for every gaming and productivity need. The GIGABYTE H610M H DDR5 mATX Motherboard will ensure that one's PC build is powerful yet efficient.
Key Features
- Intel Processor Support: Supports Intel 12th, 13th, and 14th Gen Core i9, i7, i5, i3, Pentium, and Celeron processors.
- DDR5 Memory Support: Supports up to 64GB of DDR5 memory for the most demanding performance.
- PCIe 4.0 Support: Fast data transfer for enhanced graphics performance.
- Multi-Way Connectivity: Equipped with HDMI 2.1, D-Sub port, USB 3.2, and USB 2.0 ports to meet all your peripheral needs.
- Networking: Realtek GbE LAN for stable, high-speed internet connections.
- Audio: High-quality audio through Realtek Audio CODEC to produce an immersive sound experience with 7.1-channel support.
- Storage: 1x M.2 connector, 4x SATA 6Gb/s connectors for fast storage access.
- Compact mATX Form Factor: Designed for smaller PC builds but compromising nothing in terms of performance.
Installation Steps of GIGABYTE H610M H DDR5 mATX Motherboard
- Preparation of Workspace: Prepare an anti-static workspace for assembling the PC components.
- Fixed CPU: Install the Intel CPU into the socket of LGA 1700.
- Installation of RAM: Install the DDR5 memory into the DIMM slots available.
- Motherboard Mounting: Align the GIGABYTE H610M H mATX Motherboard with mounting holes in the case and secure it.
- Power Supply Installation: The 24-pin ATX power connector and the 8-pin CPU power need to be connected.
- Storage Installation: Connect your SSD or hard drive to the M.2 and SATA connectors.
- GPU Installation: Your GPU should go inside the PCIe x16 slot.
- Connections of Peripherals: Connect your keyboard, mouse, and other devices by using the free USB ports.
Why Buy From Crystal Vision Solution?
Crystal Vision Solution offers the
GIGABYTE H610M H DDR5 mATX Motherboard at competitive prices with excellent customer service and expert support. We ensure timely delivery, secure payments, and hassle-free returns, making it easy to purchase with confidence from a trusted supplier for your PC build.
What is the Price of the GIGABYTE H610M H DDR5 mATX Motherboard in Bangladesh?
The latest price of
Gigabyte H610M H DDR5 mATX Motherboard in Bangladesh depends on quantity.
Crystal Vision Solution ensures this motherboard has the best market price in Bangladesh. Our product is 100% original and lowest price in Bangladesh. All kinds of services are the best in Bangladesh, and contact us for any information and latest price.
