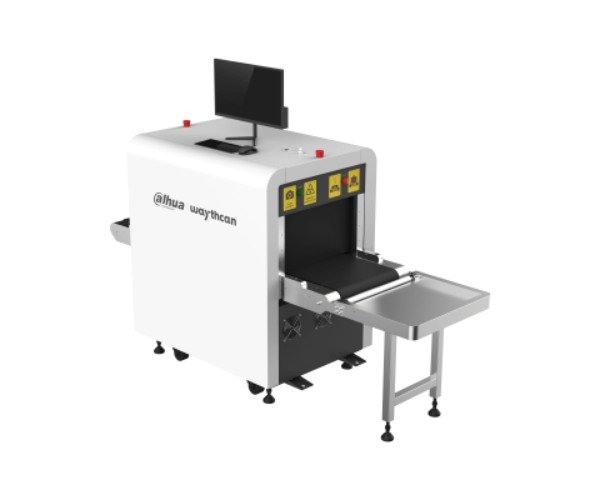

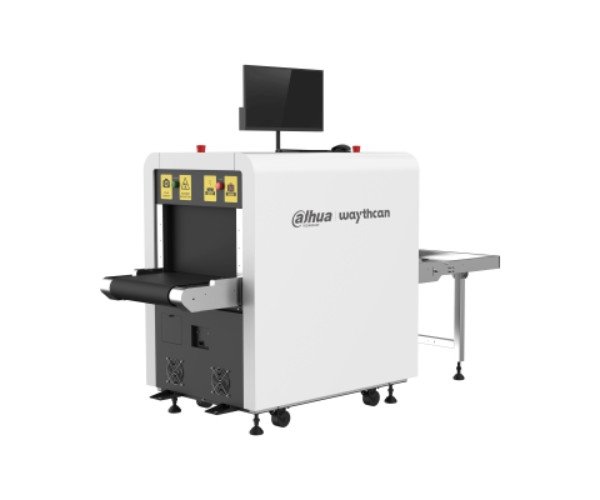

Dahua ISC-M5030AC X-Ray Baggage ScannerThe
Dahua ISC-M5030AC X-Ray Baggage Scanner is an advanced security screening system that combines intelligent design with high-performance detection for reliable scanning. Built to meet modern security demands, this scanner uses X-ray imaging to inspect the shape and composition of items passing on the conveyor. With features like enhanced image processing and real-time AI-based analysis, it detects potentially dangerous items, including guns, lighters, and high-density objects, while allowing users to set custom alert levels. Designed with automated storage management, the scanner’s reporting and storage features make it easy to search and export data as needed, accommodating over 1 million images for thorough record-keeping. It also comes equipped with a high-resolution 21.5-inch monitor, so personnel can view enhanced package images, including penetration enhancement and high-density alerts. Integrated alarms notify users of system issues such as storage or network conflicts, thus ensuring optimal performance.
Dahua ISC-M5030AC X-Ray Baggage Scanner Specifications
| Feature |
Details |
| X-ray Imaging |
Single-view, AI-based recognition of high-risk items |
| Image Processing |
Super enhancement, penetration enhancement, high-density alert |
| User Interface |
Local GUI and Web interface |
| AI Object Recognition |
Detects weapons, lighters, and other contraband |
| Tunnel Size |
500 mm x 300 mm |
| X-ray Tube Voltage |
80 kV |
| Conveyor Speed |
0.2 m/s |
| Max Conveyor Load |
80 kg |
| Resolution |
Typical: 40 AWG; Standard: 38 AWG |
| Penetration Capacity |
Typical: 9 mm steel; Standard: 7 mm |
| Data Storage |
1 million images |
| Data Backup |
USB/Network |
| Temperature Control |
Intelligent fan control based on mainboard and HDD temperature |
| Power Supply |
220–240 VAC, 50/60 Hz |
| Power Consumption |
Typical: 220 W; Max: 500 W |
| Operating Temperature |
0 °C to +45 °C |
| Dimensions |
1665 mm x 766 mm x 1237 mm |
| Weight |
Net: 300 kg; Gross: 400 kg |
Key Features
- X-Ray Dual-View Imaging: Inspects item shape and material, highlighting potential threats.
- Enhanced Image Processing: Offers super enhancement, edge enhancement, and high-density alerts for clearer detection.
- Real-Time AI Recognition: Identifies high-risk items like weapons, lighters, and high-density objects.
- Customizable Alerts: Configure alert thresholds, link to audio, and light alarms for added security.
- User Group Management: Supports multiple user authority levels, including custom permissions and password protection.
- Secure Data Storage: Store up to 1 million images with advanced storage management and reporting.
Applications
- Public Transport Terminals: Reliable baggage scanning in airports, train, and bus stations.
- Event Security: Swift detection for public event venues, adding an extra layer of safety.
- Government and Corporate Facilities: Reinforces security screening for sensitive locations.
