The

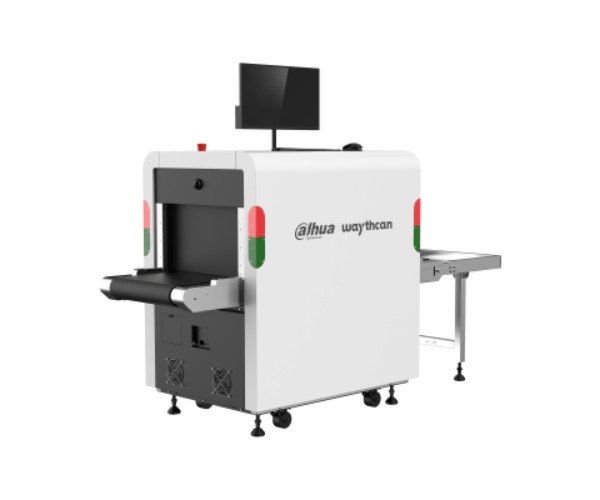

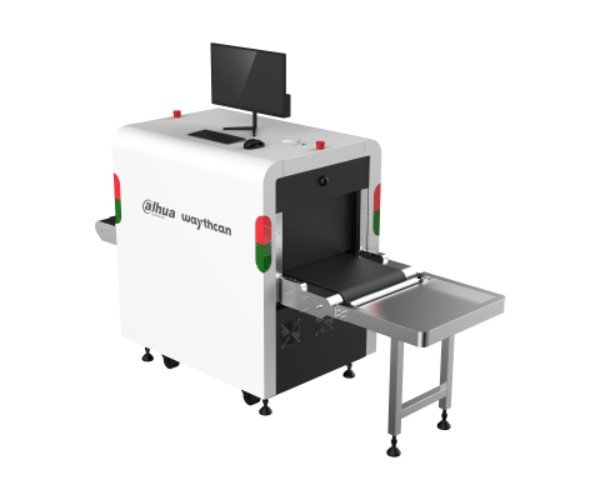

Dahua ISC-M5030 X-Ray Baggage Scanner is a high-performance security solution designed to provide fast, efficient, and reliable baggage inspection. Equipped with advanced dual-view X-ray imaging technology, it offers enhanced detection capabilities for items such as knives, guns, and liquid containers. The device supports AI-based object recognition, allowing it to highlight suspected objects in real-time using an AI overlay, ensuring accurate detection of contraband. Additionally, it features an intuitive interface that enables operators to adjust danger levels, monitor live video, and generate detailed reports.
The system is also equipped with built-in cameras that monitor the entry and exit points of packages, offering a comprehensive surveillance solution. Designed to handle large amounts of data, it can store up to 1 million images and supports RAID storage for data security and easy retrieval. This versatile scanner is ideal for airports, train stations, government buildings, and other high-security environments, ensuring maximum safety through automated analysis and real-time event linkage.
The Dahua ISC-M5030 also excels in its user management capabilities, allowing different permission levels and customized functions to be assigned to individual users. Additionally, self-diagnosis and maintenance management features help minimize downtime, making it an efficient and reliable choice for security screening.
Dahua ISC-M5030 X-Ray Baggage Scanner Specifications
| Specification |
Details |
| Tunnel Size |
500 mm × 300 mm |
| X-ray Generator |
160 kV |
| Penetration (steel) |
Typical: 39 mm, Standard: 36 mm |
| Wire Resolution |
Typical: 40 AWG |
| Conveyor Speed |
0.2 m/s |
| Maximum Belt Load |
170 kg (374.78 lb) |
| Leakage Dose-rate |
≤ 0.9 μSv/h |
| Monitor |
1 × 21.5" LCD display |
| Power Consumption |
Typical: 450W, Max: 1 kW |
| Operating Temperature |
0 °C to +45 °C |
| Operating Humidity |
0%–95% (RH), non-condensing |
| Dimensions (L × W × H) |
1665 mm × 766 mm × 1237 mm |
| Net Weight |
360 kg (793.66 lb) |
| Storage Management |
RAID 0/1/5 (Enterprise-level disks) |
| Video Input |
12-channel input (max 4K) |
| Ethernet Ports |
1 RJ-45 (10M/100M/1000M), 4 PoE ports |
| Alarm Triggers |
I/O alarm, voice prompt, light, conveyor stop |
Key Features
- Dual-view X-ray imaging for accurate threat detection.
- AI recognition for real-time identification of dangerous objects.
- Adjustable danger levels with customizable alarm triggers.
- Real-time video surveillance and playback using IP or PoE cameras.
- Stores up to 1 million images with detailed report generation.
- Supports RAID configuration (RAID 0/1/5) for secure data storage.
- Self-inspection to detect system failures and ensure smooth operation.
- Compatible with user fingerprint login for enhanced security.
Applications
- Airports: Secure baggage screening to detect dangerous items in passengers' luggage.
- Train stations: Fast and reliable inspection of bags for public safety.
- Government buildings: Safeguard high-security facilities with real-time monitoring.
- Corporate offices: Secure package inspection for the protection of personnel and assets.
Price of Dahua ISC-M5030 X-Ray Baggage Scanner in Bangladesh (BD)
Buy the
Dahua X-Ray Baggage Scanner for its advanced imaging technology, fast threat detection, and dependable security performance. Ideal for airports, offices, and public facilities, this scanner provides accurate and thorough baggage screening to ensure a safe environment. When you buy from
Crystal Vision Solutions, you receive genuine Dahua products, competitive pricing, and outstanding customer service. With quick delivery and expert support,
Crystal Vision Solutions offers a seamless purchasing experience for all your security equipment needs.
