The

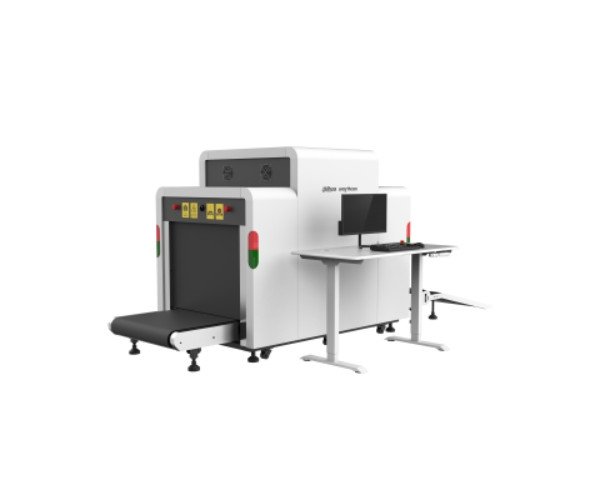

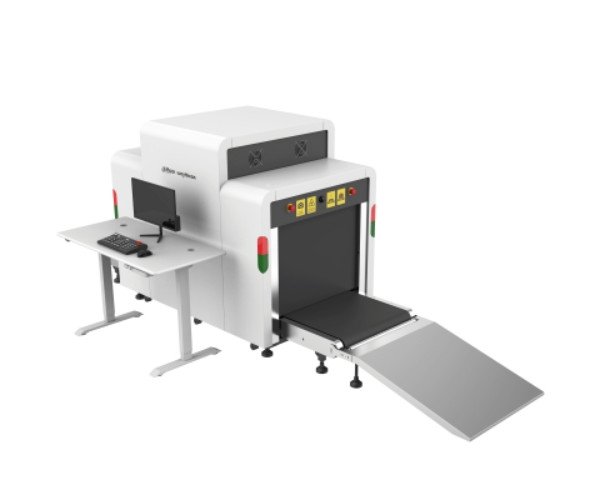

Dahua ISC-M8065 X-Ray Baggage Scanner is a highly advanced, intelligent security solution for comprehensive baggage scanning and monitoring. This state-of-the-art scanner leverages dual-view X-ray technology to capture images from multiple angles, providing thorough inspection of every item. Equipped with AI algorithms, the ISC-M8065 accurately detects a wide range of contraband items, from knives and spray cans to mobile phones and high-density objects, ensuring precise threat identification.
The system’s user interface displays images with enhanced clarity, including super enhancement and high-density alerts, making contraband easy to detect. Customizable danger levels allow security personnel to set alerts based on specific threat types, while a real-time AI overlay visually highlights potential dangers. Dual built-in cameras monitor the entry and exit points of the baggage tunnel, and additional IP and PoE cameras can be added for expanded video surveillance coverage. With RAID storage options and robust backup systems, the ISC-M8065 ensures seamless operation and secure data storage.
Dahua ISC-M8065 X-Ray Baggage Scanner Specifications
| Feature |
Details |
| Imaging Technology |
Dual-view X-ray, AI-powered detection |
| Detection Capability |
Recognizes 23 types of objects, including guns, knives, spray cans, lighters, electronics, and bottles |
| Danger Levels |
Configurable danger levels with linked alerts |
| Tunnel Size |
810 mm × 650 mm |
| X-ray Tube Anode Voltage |
160 kV |
| Conveyor Speed |
0.2 m/s |
| Resolution |
Typical: 38 AWG (0.1 mm); standard: 34 AWG (0.16 mm) |
| Penetration (Steel) |
Up to 39 mm |
| Noise Level |
≤ 63 dB |
| Storage Capacity |
Up to 1 million images, RAID configuration support |
| Network Ports |
1 RJ-45 Ethernet, 4 RJ-45 PoE Ethernet ports |
| Power Requirements |
AC 220–240 V, 50/60 Hz |
| Operating Temperature |
0 °C to +45 °C (32 °F to +113 °F) |
| Dimensions |
3863 mm × 1122 mm × 1486 mm |
| Weight |
Net: 700 kg; Gross: 850 kg |
| Storage Management |
Supports RAID 0/1/5 configurations |
Key Features
- Dual-View X-Ray Imaging: Captures images from multiple angles for enhanced visibility.
- AI-Powered Detection: Recognizes 23 types of dangerous items with real-time overlay tracking.
- Configurable Alerts: Customizable danger levels trigger visual, sound, and belt-stop alarms.
- Comprehensive Reporting: Stores up to 1 million images and generates searchable reports.
- High-Capacity Storage: RAID storage configuration for data reliability and safety.
- Advanced Surveillance: Integrates up to 12 channels, including 4 PoE ports, for comprehensive monitoring.
Applications
- Airports and Ports: Reliable screening of luggage, parcels, and cargo.
- Customs and Border Security: Quick, accurate detection of contraband for improved security.
- Events and High-Security Venues: Provides efficient screening for visitors and cargo.
Price of Dahua ISC-M8065 X-Ray Baggage Scanner in Bangladesh (BD)
Buy the
Dahua X-Ray Baggage Scanner for its advanced imaging technology, fast threat detection, and dependable security performance. Ideal for airports, offices, and public facilities, this scanner provides accurate and thorough baggage screening to ensure a safe environment. When you buy from
Crystal Vision Solutions, you receive genuine Dahua products, competitive pricing, and outstanding customer service. With quick delivery and expert support,
Crystal Vision Solutions offers a seamless purchasing experience for all your security equipment needs.
