The

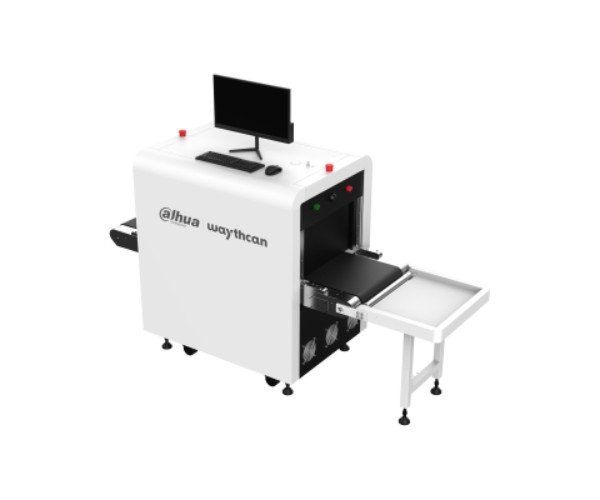

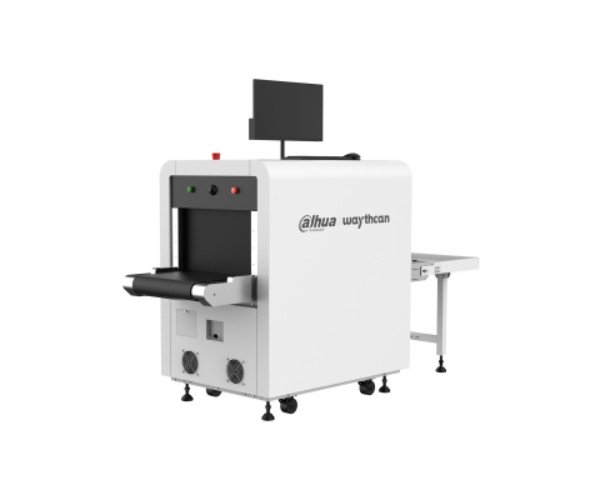

Dahua ISC-M5030A X-Ray Baggage Scanner delivers exceptional security with advanced imaging technology that detects potential threats within packaged items quickly and accurately. With a tunnel size of 500 mm x 300 mm, this scanner is ideal for airports, transit hubs, government facilities, and public events, providing clear, enhanced imaging to identify threats like weapons, explosives, and prohibited electronic devices. The scanner’s AI-driven recognition system automatically overlays alerts on suspected objects, helping security staff efficiently pinpoint risk items. Equipped with an 80 kV X-ray tube and real-time enhancements, including penetration, super, and high-density scanning, the ISC-M5030A offers both safety and precision.
The scanner’s comprehensive storage system accommodates up to 1 million images with danger level categorization, making record management and report generation streamlined and effective. Dual cameras offer continuous monitoring of package flow, while remote network connectivity allows for live video and playback, further enhancing overall security.
Dahua ISC-M5030A X-Ray Baggage Scanner Specifications
| Feature |
Details |
| Tunnel Size |
500 mm x 300 mm (19.69" x 11.81") |
| X-ray Source |
80 kV, oil-cooled with forced air |
| Penetration |
8 mm (steel) |
| Resolution |
40 AWG (0.0787 mm) |
| Conveyor Speed |
0.2 m/s |
| Max Belt Load |
80 kg (176.37 lb) |
| User Interface |
Local GUI; Web-based interface |
| Recognition Types |
21 objects, including guns, knives, spray cans, electronic devices |
| Alarm Configuration |
Configurable danger levels with linked alarm options |
| Storage Capacity |
Up to 1 million images |
| Image Processing |
Color/black and white, penetration, super, density alert, pseudo color, and more |
| Networking |
Ethernet, RS232, HDMI, USB, with ONVIF compatibility |
| Power Supply |
220–240 VAC, 50/60 Hz (optional: 100–130 VAC) |
| Power Consumption |
Typical: 220 W; Maximum: 650 W |
| Operating Temperature |
0°C to +45°C (32°F to +113°F) |
| Dimensions |
1665 mm x 766 mm x 1202 mm (65.55" x 30.16" x 47.40") |
| Weight |
Net: 300 kg (661.39 lb); Gross: 350 kg (771.62 lb) |
| Certifications |
ISO 1600 (film safety), CE, FCC |
Key Features
- AI Recognition & Overlays: Recognizes 21 types of potential threats with AI overlays that move with the package.
- Image Enhancements: Penetration, density, and super enhancements for clear, detailed images.
- Data Storage & Management: Stores up to 1 million images with searchable categorization by danger level and time.
- Customizable Alerts: Danger levels for items trigger visual, audio, and platform notifications, allowing quick action.
- Live Surveillance: Built-in cameras for monitoring and compatibility with network cameras for extended video recording.
- Self-Diagnostics: Automatic system checks and maintenance logs for reliable, ongoing operation.
Applications
- Airports and Transportation Hubs: Enhances security and efficiency at checkpoints.
- Public Events: Controls and manages potential threats for large gatherings.
- High-Security Facilities: Monitors and secures areas with sensitive data or materials.
