The

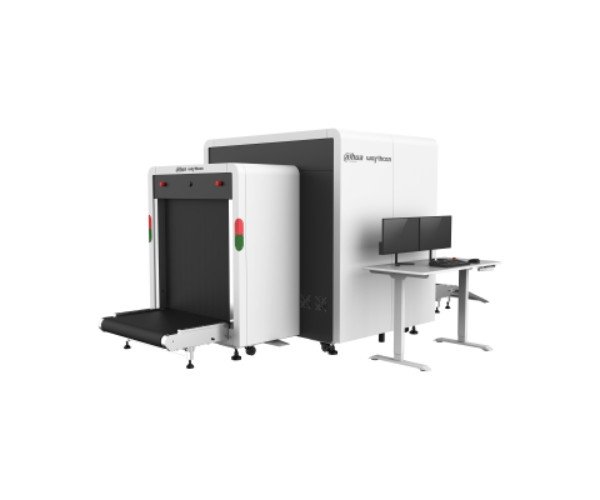

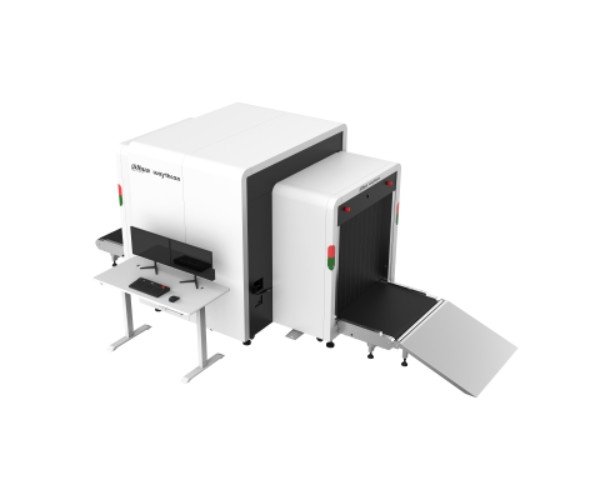

Dahua ISC-M100100D X-Ray Baggage Scanner is a state-of-the-art security solution that enhances the efficiency and accuracy of luggage and package inspection. Using dual-view X-ray technology, this system generates high-resolution images, allowing for precise detection of prohibited items. The scanner features advanced AI algorithms that recognize a wide range of contraband, such as knives, guns, and liquids, improving the recognition rate and reducing false alarms. Additionally, the system supports real-time monitoring with its built-in cameras, providing both video surveillance mode and security screening mode for enhanced security coverage.
This scanner can identify metallic and non-metallic items, automatically adjusting sensitivity levels to ensure accurate detection. It includes an AI overlay function that marks suspected objects in real-time, making it easy for operators to assess and respond to potential threats. Furthermore, the system provides customizable alarm levels based on the detected danger level, and all results are stored for easy report generation and retrieval.
Designed for high-traffic locations such as airports, railway stations, and government facilities, the Dahua ISC-M100100D ensures seamless and secure inspection of baggage with minimal interruption. The device is robust, dust-resistant, and equipped with moth and mold protection to ensure reliable performance in various environments. Its RAID storage capability enhances data management, allowing for safe storage and retrieval of up to 1 million images.
Dahua ISC-M100100D X-Ray Baggage Scanner Specifications
| Specification |
Details |
| Tunnels Size |
1000 mm × 1000 mm (39.37" × 39.37") |
| X-ray Generator |
Dual-View, 160 kV |
| Wire Resolution |
Horizontal: 36AWG; Vertical: 38AWG |
| Penetration (steel) |
Horizontal: 38 mm; Vertical: 40 mm |
| Conveyor Speed |
0.2 m/s |
| Maximum Belt Load |
200 kg (440.92 lb) |
| Leakage Dose-rate |
≤ 0.9 μSv/h |
| Monitor Size |
2 × 21.5" LCD |
| Storage |
RAID 0/1/5, 1 × 4TB disk by default |
| Operating Temperature |
0 °C to +45 °C (32 °F to +113 °F) |
| Dimensions (L × W × H) |
3,599 mm x 1,690 mm x 1,790 mm |
| Power Supply |
220 VAC, 50/60 Hz |
| Power Consumption |
Typical: 1 kW, Maximum: 1.5 kW |
| Net Weight |
1200 kg (2645.55 lb) |
| Operating System |
Embedded Linux OS |
| Recognition Types |
23 types (knives, guns, spray cans, etc.) |
| Image Zooming |
Up to 64x |
Key Features
- Dual-view X-ray imaging for enhanced contraband detection.
- AI-based object recognition for identifying dangerous items.
- Real-time video surveillance through built-in cameras.
- Customizable danger levels with audible and visual alarms.
- Image storage of up to 1 million images for report generation and retrieval.
- Automatic system diagnosis and easy maintenance.
- Dust, moth, and mold protection for key components.
- RAID configuration for advanced data management.
- Seamless integration with external control systems through multiple network interfaces.
Applications
- Airports: Enhance luggage security checks and ensure a safer travel environment.
- Railway stations: Provide seamless security screening for high volumes of passengers.
- Government buildings: Improve security by detecting potential threats quickly and accurately.
- Corporate offices: Monitor incoming packages for safety.
- Customs and border security: Ensure a thorough inspection of imported goods for contraband or dangerous materials.
Price of Dahua ISC-M100100D X-Ray Baggage Scanner in Bangladesh (BD)
Buy the
Dahua X-Ray Baggage Scanner for its advanced imaging technology, fast threat detection, and dependable security performance. Ideal for airports, offices, and public facilities, this scanner provides accurate and thorough baggage screening to ensure a safe environment. When you buy from
Crystal Vision Solutions, you receive genuine Dahua products, competitive pricing, and outstanding customer service. With quick delivery and expert support,
Crystal Vision Solutions offers a seamless purchasing experience for all your security equipment needs.
