The

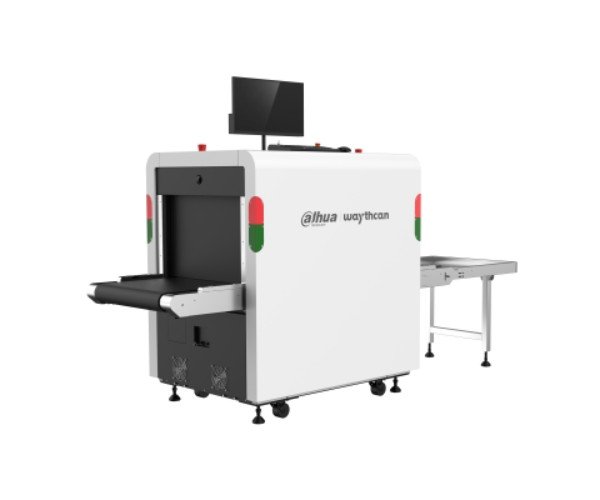

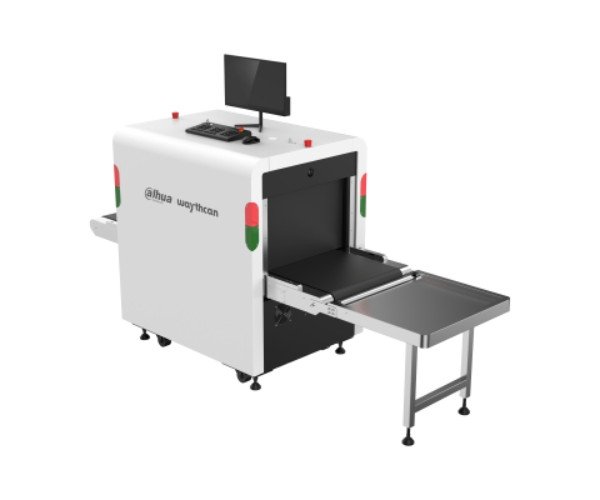

Dahua ISC-M6040 X-Ray Baggage Scanner delivers high-performance security screening with a comprehensive set of features tailored for busy security environments like airports, transportation hubs, and public venues. Equipped with a powerful single-view 160 kV X-ray generator, this system provides detailed, clear images of each item passing through the 620 mm x 420 mm tunnel, enabling accurate threat detection.
This scanner supports advanced imaging enhancements, including high-density alerts, penetration scanning, and super enhancement to provide visibility into complex items. The embedded AI automatically identifies 23 potential threat types, like weapons and hazardous liquids, with visual overlays on suspected objects, allowing quick responses. With a robust capacity for image storage, storing up to one million images, each detection result is logged by danger level, ensuring easy tracking and reporting.
Additionally, the ISC-M6040 incorporates built-in video surveillance and remote monitoring capabilities, utilizing IP and PoE cameras to cover inspection areas comprehensively. The advanced HDD management system with RAID options safeguards data integrity, while a user-friendly control interface simplifies operation.
Dahua ISC-M6040 X-Ray Baggage Scanner Specifications
| Feature |
Details |
| Tunnel Size |
620 mm × 420 mm |
| X-ray Source |
160 kV, sealed oil bath with forced air cooling |
| Penetration (Steel) |
Typical: 39 mm; Standard: 35 mm |
| Resolution |
40 AWG (0.079 mm) |
| Conveyor Speed |
0.2 m/s |
| Max Belt Load |
170 kg (374.78 lb) |
| Alarm Settings |
Configurable levels: High risk, warning, safe; triggers include I/O, voice, and light |
| Image Storage |
Up to 1 million images |
| Image Processing |
High-density alert, color/B&W, penetration scanning, pseudo color, AI overlay |
| Monitoring & Playback |
Supports 12-channel input, 4K IP and PoE camera compatibility |
| Connectivity |
RS232, Ethernet, USB 3.0, 2-channel DVI |
| Operating Voltage |
220–240 VAC ±10%, 50/60 Hz |
| Power Consumption |
Typical: 450 W; Max: 1 kW |
| Operating Temperature |
0 °C to +45 °C (32 °F to +113 °F) |
| Dimensions |
1993 mm x 870 mm x 1297 mm (78.46" x 34.25" x 51.06") |
| Certifications |
ISO 1600 (film safety), CE, FCC |
Key Features
- AI Recognition & Alerts: Automatic detection and overlay for 23 object types with customizable danger levels and alarm triggers.
- Advanced Imaging Enhancements: Includes super enhancement, penetration scanning, high-density alerts, and color options.
- Comprehensive Monitoring: Built-in cameras and network support with IP and PoE compatibility for real-time surveillance and inspection playback.
- High Storage Capacity: Stores up to 1 million images with RAID-configurable storage for data redundancy and security.
- Self-Diagnostic System: Real-time health checks for key components, minimizing maintenance downtime.
Applications
- Airports and Transport Hubs: Fast, accurate scanning of baggage and personal items with real-time alerts.
- Public and Corporate Venues: High-capacity storage and robust detection capabilities for effective entry-point security.
- Events and Secure Facilities: IP-compatible remote monitoring enables real-time security and enhanced threat tracking.
Price of Dahua ISC-M6040 X-Ray Baggage Scanner in Bangladesh (BD)
Buy the
Dahua X-Ray Baggage Scanner for its advanced imaging technology, fast threat detection, and dependable security performance. Ideal for airports, offices, and public facilities, this scanner provides accurate and thorough baggage screening to ensure a safe environment. When you buy from
Crystal Vision Solutions, you receive genuine Dahua products, competitive pricing, and outstanding customer service. With quick delivery and expert support,
Crystal Vision Solutions offers a seamless purchasing experience for all your security equipment needs.
