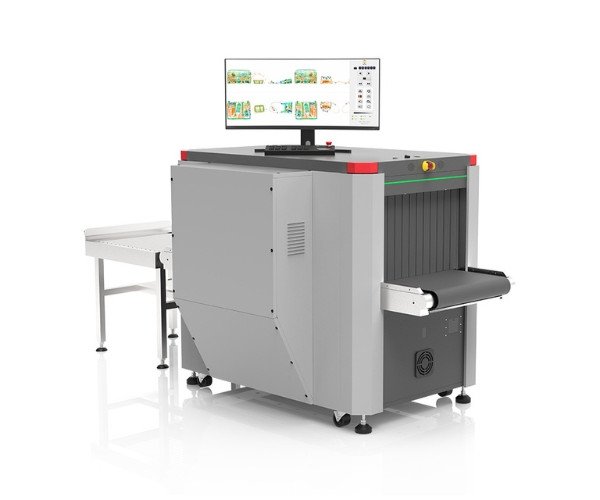

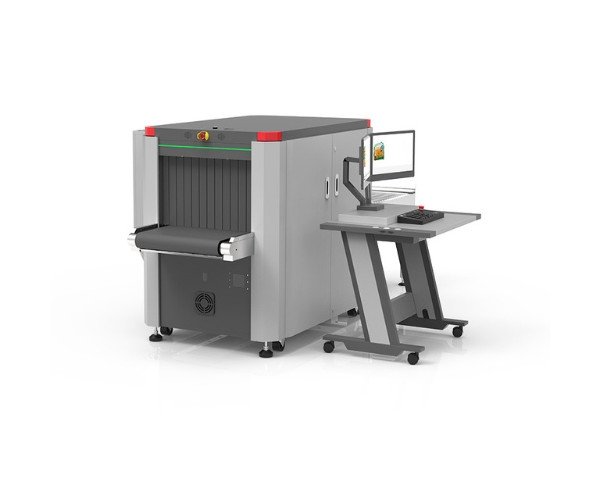

Safeagle HP-SE7555D Dual View X-ray Baggage Scanner combines robust dual-view X-ray technology with advanced 4/7-color imaging. Thus, providing optimal visibility and accurate threat detection in any security-sensitive environment. Equipped with two X-ray generators, this scanner captures horizontal and vertical angles simultaneously. This eliminates the risk of missed items due to overlapping or occlusion.
This scanner’s Zeff-scan function is engineered to highlight potential threats like explosives and narcotics, displaying these materials in color-coded overlays based on atomic numbers for precise identification. With dual-energy capability, the HP-SE7555D clearly distinguishes organic, inorganic, and mixed materials: metals appear blue, while organic substances such as clothing and currency appear orange. Operators benefit from both split-screen and full-screen viewing options. Therefore, allowing them to customize settings for maximum efficiency and accuracy during high-traffic security checks.
Safeagle HP-SE7555D Dual View X-ray Baggage Scanner Specifications
| Feature |
Details |
| Tunnel Size |
754 mm (W) x 558 mm (H) |
| Dimensions |
2590 mm (L) x 1450 mm (W) x 1512 mm (H) |
| Conveyor Max Load |
165 kg |
| Belt Speed |
0.23 m/s, bidirectional |
| X-ray Generator Voltage |
140 kV (dual generators) |
| Wire Detectability |
40 AWG |
| Resolution |
1.0 mm (horizontal and vertical) |
| Steel Penetration |
36 mm typical |
| Tube Current |
0.7 mA |
| Cooling System |
Sealed oil bath with forced air |
| Beam Direction |
Diagonally upward |
| Operating Temperature |
0°C to 40°C (32°F to 104°F) |
| Storage Temperature |
-20°C to 60°C (-4°F to 140°F) |
| Humidity |
Up to 95% non-condensing |
| Power Requirements |
220 VAC ±10%, 50/60 Hz, 10A max |
Key Features
- Dual-View Scanning: Scans from both horizontal and vertical angles to prevent inspection gaps and ensure comprehensive analysis.
- 4/7-Color Imaging: Switchable imaging mode for clear material differentiation, providing color-coding based on atomic numbers.
- Zeff-Scan Explosives Detection: Real-time detection of potential threats, automatically highlighting explosives and narcotics.
- Advanced Dual-Energy Technology: Color-codes metals, organics, and mixtures, improving the accuracy of threat identification.
- Operator-Customizable Views: Split-screen and full-screen options allow operators to choose optimal viewing modes based on traffic and security needs.
Applications
- Airport Security and Border Checkpoints: Provides quick, accurate threat detection and material differentiation.
- Public Transportation Hubs: Ensures passenger safety by detecting and flagging dangerous items in dense crowds.
- Retail and Event Security: Detects prohibited items in high-traffic areas, supporting public safety protocols.
- Corporate and Government Facilities: Adds an essential security layer, protecting restricted areas from unauthorized items.
