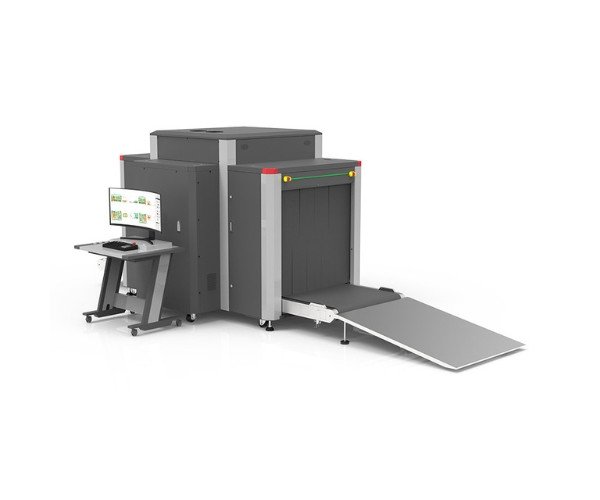

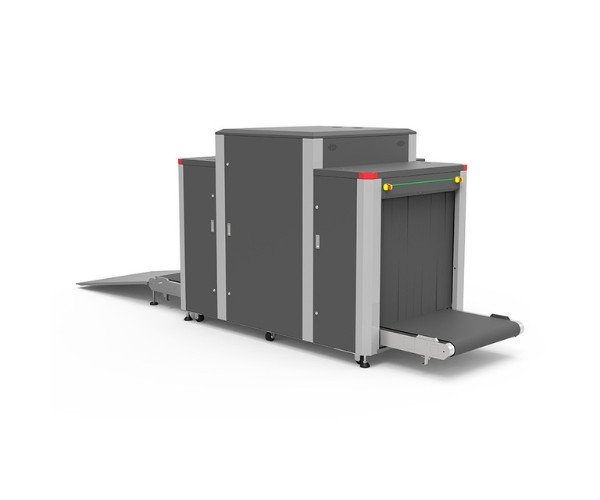

Safeagle HP-SE100100D Large Dual View X-ray Screening System delivers comprehensive and precise cargo inspection for high-security environments, such as border crossings, airports, logistics centers, and other high-risk locations. Equipped with dual X-ray generators, this advanced system captures images from both horizontal and vertical angles, eliminating blind spots caused by overlapping or concealed objects and ensuring a more thorough screening.
Safeagle's unique switchable 4/7-color imaging technology enhances image clarity, assigning specific colors to materials based on their atomic number. This feature enables rapid identification and differentiation of organic and inorganic substances, such as metal and plastic. The innovative Zeff-scan function automatically highlights potential threats, including explosives and narcotics, in real time based on atomic characteristics, making threat detection more efficient. With dual-energy X-ray capabilities, the HP-SE100100D distinguishes concealed items, showing metals in blue and organic items in orange.
The HP-SE100100D includes split-screen and full-screen display options for optimal operator experience. Its robust design and high conveyor load capacity allow it to manage heavy and high-volume screening processes with ease. Therefore making it an invaluable asset for secure, high-traffic environments.
Safeagle HP-SE100100D Large X-ray Screening System Specifications
| Feature |
Details |
| Tunnel Size |
1001 mm (W) x 1001 mm (H) |
| Dimensions |
3036 mm (L) x 1420 mm (W) x 2015 mm (H) |
| Conveyor Max Load |
250 kg |
| Belt Speed |
0.23 m/s, bidirectional |
| X-ray Generator Voltage |
140 kV x 2 |
| Wire Detectability |
40 AWG |
| Spatial Resolution |
1.0 mm horizontal, 1.0 mm vertical |
| Steel Penetration |
36 mm steel, typical |
| Tube Current |
0.7 mA |
| Cooling System |
Sealed oil bath with forced air |
| Beam Direction |
Diagonally upward |
| Dual-Energy |
Yes |
| Operating Temperature |
0°C to 40°C (32°F to 104°F) |
| Storage Temperature |
-20°C to 60°C (-4°F to 140°F) |
| Humidity |
Up to 95% non-condensing |
| Power Requirements |
220 VAC ±10%, 50/60 Hz, 10A max |
Key Features
- Dual View Imaging: Captures images from horizontal and vertical angles, preventing missed inspections.
- 4/7-Color Switchable Imaging: Differentiates materials by atomic range, enhancing threat detection.
- Zeff-Scan Real-Time Detection: Highlights explosives and narcotics, aiding in accurate threat identification.
- Dual-Energy Technology: Identifies materials based on atomic structure, distinguishing between metal and organic items.
- Customizable Display Options: Split-screen and full-screen modes for enhanced operator control.
Applications
- Customs and Border Control: Provides in-depth cargo screening to detect contraband and threats.
- Airport and Port Security: Efficiently manages large volumes of cargo and baggage.
- Logistics Centers: Ensures secure inspection of high-value or sensitive cargo.
- Government and Military Facilities: Enhances security at high-risk entry points.
