The

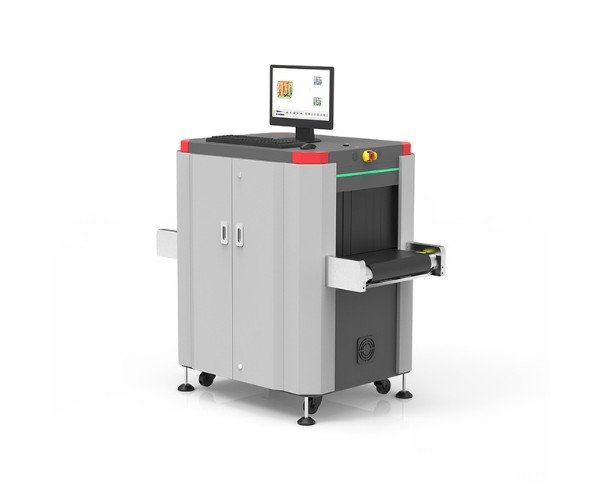

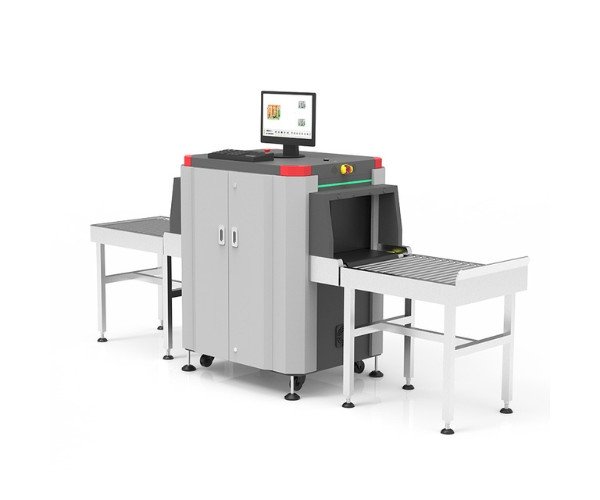

Safeagle HP-SE5335S X-Ray Baggage Scanner is an advanced security solution that uses cutting-edge 3-D Perspective Technology combined with a 7-color imaging system to detect potential threats with unmatched precision. This innovative system allows security operators to view objects in seven distinct colors, each corresponding to specific atomic numbers, providing a comprehensive and holistic view of the scanned items.
Designed to meet the evolving needs of modern security environments, this scanner ensures the accurate detection of concealed items, including hazardous liquids, explosives, and narcotics. The system uses the Zeff-scan function to highlight potential threats in real-time, based on their atomic composition, which helps screeners easily identify dangerous materials. Dual-energy technology further enhances detection by distinguishing between organic and inorganic materials, ensuring that metallic objects such as guns and knives are easily spotted in blue, while organic items like plastics and cloth appear in orange.
The HP-SE5335S scanner is equipped with switchable 4/7-color imaging, allowing operators to customize their display for maximum accuracy. With its bidirectional belt and splicing scanning capability, this scanner provides fast and efficient screening. Therefore, making it ideal for high-traffic locations such as airports, railway stations, and border crossings. The split-screen and full-screen options further improve visibility, allowing operators to monitor the scanned items effectively.
Safeagle HP-SE5335S X-Ray Baggage Scanner Specifications
| Specification |
Details |
| Tunnel Size |
556(W) x 360(H) mm |
| Dimensions |
1359(L) x 877(W) x 1230(H) mm |
| Conveyor Max Load |
150 kg |
| Belt Speed |
0.23m/s Bidirectional |
| X-ray Generator Voltage |
140 kV |
| Wire Detectability |
40 AWG |
| Spatial Resolution |
1.0 mm Horizontal, 1.0 mm Vertical |
| Steel Penetration |
36 mm steel Typical |
| Tube Current |
0.7 mA |
| Cooling |
Sealed Oil Bath with Forced Air |
| Duty Cycle |
100%, No Warm-Up Required |
| Operating Temperature |
0°C - 40°C (32°F - 104°F) |
| Storage Temperature |
-20°C - 60°C (-4°F - 140°F) |
| Humidity |
Up to 95% Non-Condensing |
| Power Requirements |
220VAC±10%, 50/60Hz, 10A Max |
Key Features
- 3-D Perspective Technology: Provides a comprehensive view of potential threats, enhancing detection accuracy.
- 7-color imaging system: Helps identify materials by color-coding objects based on their atomic number.
- Zeff-scan function: Highlights suspicious items such as explosives and narcotics in real time.
- Dual-energy detection: Differentiates between organic and inorganic materials for enhanced accuracy.
- Bidirectional belt: Ensures fast, efficient scanning of luggage.
- Split-screen and full-screen options: Allows operators to customize their viewing preferences.
Applications
- Airports
- Railway stations
- Border crossings
- Government buildings
- Shopping malls
- Event venues
Price of Safeagle HP-SE5335S X-Ray Baggage Scanner in Bangladesh (BD)
The
X-Ray Baggage Scanner ensures thorough and efficient security screening, making it essential for airports, government buildings, and high-security environments. Designed for precision, it quickly detects hidden threats while maintaining fast, reliable operation.
When you buy an X-Ray Baggage Scanner from
Crystal Vision Solutions, you receive authentic, high-quality products, competitive pricing, and expert customer support. Crystal Vision Solutions provides fast shipping and tailored advice, ensuring you find the best security solution for your needs.
