The

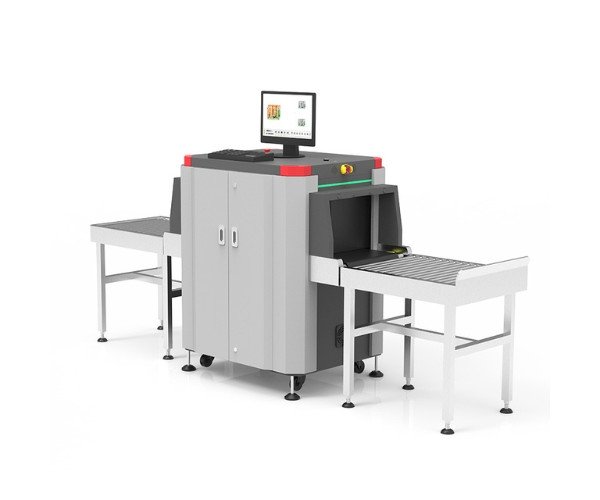

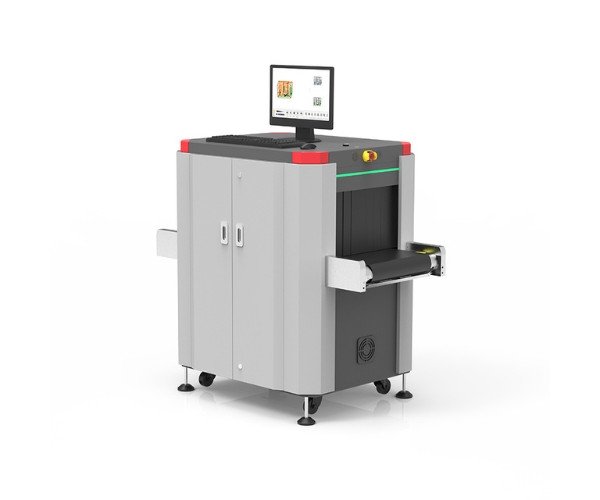

Safeagle HP-SE5030C X-Ray Baggage Scanner is an advanced security solution designed to provide high throughput and enhanced scanning capabilities for various environments. This model features a scanning tunnel size of 510mm x 310mm, allowing for the efficient screening of a wide range of items. Equipped with switchable 4/7-color imaging technology, it offers real-time image processing and clear identification of organic, inorganic, and mixed materials.
The Safeagle HP-SE5030C is built with cutting-edge dual-energy technology that enables precise identification of concealed objects based on their atomic numbers. Whether it's metallic objects like guns and knives or organic items like plastics and paper, the scanner displays these in distinct colors, making it easier to identify threats. Its ability to detect hazardous liquids, explosives, and narcotics ensures heightened security across all applications. This scanner is ideal for locations requiring fast and reliable screening such as border crossings, railway stations, shopping malls, and hotels.
Designed for ease of use, the Safeagle HP-SE5030C allows operators to switch between different screen modes. This offers a customizable experience that meets diverse scanning needs. The system’s high-resolution imaging and enhanced threat detection features make it one of the most effective tools for modern security screening.
Safeagle HP-SE5030C X-Ray Baggage Scanner Specifications
| Specification |
Details |
| Tunnel Size |
510(W) x 310(H) mm |
| Dimensions |
1359(L) x 831(W) x 1180(H) mm |
| Conveyor Max Load |
150 kg |
| Belt Speed |
0.23m/s Bidirectional |
| X-ray Generator Voltage |
140kV |
| Wire Detectability |
40 AWG |
| Spatial Resolution |
1.0 mm Horizontal, 1.0 mm Vertical |
| Steel Penetration |
36 mm steel Typical |
| Tube Current |
0.7 mA |
| Cooling |
Sealed Oil Bath with Forced Air |
| Beam Direction |
Diagonally Upward |
| Dual-energy |
Yes |
| Operating Temperature |
0°C- 40°C \ 32ºF – 104°F |
| Storage Temperature |
-20°C- 60°C \ -4ºF- 140ºF |
| Humidity |
Up to 95% Non-Condensing |
| Power Requirements |
220VAC±10%, 50/60Hz, 10A Max |
Key Features
- High-throughput capability: Allows for faster scanning of multiple objects, improving security efficiency.
- Switchable 4/7-color imaging: Enables optimal material identification by color-coding based on atomic numbers.
- Real-time image processing: Offers accurate and instant results during the scanning process.
- Dual-energy technology: Differentiates between metallic, organic, and mixed materials, highlighting potential threats.
- Hazardous materials detection: Identifies explosives, drugs, and hazardous liquids with precision.
- Bidirectional belt: Ensures smooth, efficient scanning with a belt speed of 0.23m/s.
- User-friendly interface: Supports multiple split-screen and full-screen modes for better viewing.
Applications
- Border crossings
- Railway stations
- Airports
- Shopping malls
- Hotels
- Government buildings
- Event venues
