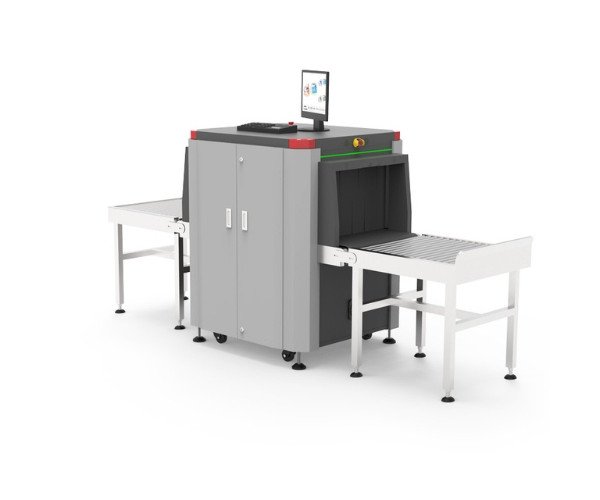

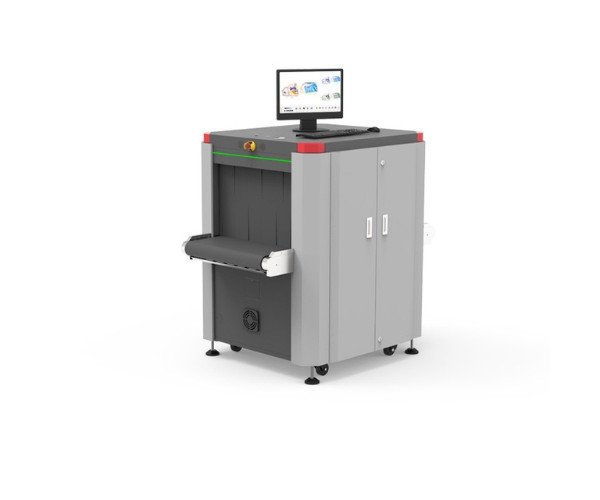

The
Safeagle HP-SE6550C X-ray Baggage Scanner is a compact, high-performance scanner designed to meet today’s rigorous security standards across various environments. This advanced scanner features innovative switchable 4/7-color imaging, ensuring accurate detection of a wide range of materials and potential threats, from organic and inorganic substances to hazardous liquids and narcotics. With its Zeff-assisted threat detection and real-time color-coding for material differentiation, the HP-SE6550C delivers unparalleled inspection precision.
Designed for high-traffic areas like
airports, railway stations, and shopping malls, this scanner provides dual-energy technology that classifies objects based on atomic number, enabling effective color-coded detection for items like metals, explosives, and drugs. The split-screen and full-screen viewing options give operators flexibility in adjusting display modes for optimal screening efficiency.
Safeagle HP-SE6550C X-ray Baggage Scanner Specifications
| Feature |
Details |
| Tunnel Size |
654 mm (W) x 508 mm (H) |
| Dimensions |
1691 mm (L) x 985 mm (W) x 1275 mm (H) |
| Conveyor Max Load |
165 kg |
| Belt Speed |
0.23 m/s, bidirectional |
| X-ray Generator Voltage |
140 kV |
| Wire Detectability |
40 AWG |
| Resolution |
1.0 mm (horizontal & vertical) |
| Steel Penetration |
36 mm typical |
| Tube Current |
0.7 mA |
| Cooling System |
Sealed oil bath with forced air |
| Beam Direction |
Diagonally upward |
| Detector Type |
L-shaped array |
| Operating Temperature |
0°C to 40°C (32°F to 104°F) |
| Storage Temperature |
-20°C to 60°C (-4°F to 140°F) |
| Humidity |
Up to 95% non-condensing |
| Power Requirements |
220VAC ±10%, 50/60Hz, 10A max |
Key Features
- Dual-Energy X-ray Detection: Enables material classification and color-coded threat detection for metal, organic, and inorganic items.
- Switchable 4/7-Color Imaging: Provides customizable color views, allowing users to accurately differentiate between materials based on atomic properties.
- Zeff-Assisted Explosive Detection: Automatically highlights potential threats based on atomic number characteristics, enhancing narcotics and explosives identification.
- Bidirectional Belt Speed: Offers 0.23 m/s scanning in both directions, ensuring continuous and efficient inspection.
- High-Resolution Wire Detection: Achieves a fine wire detectability of up to 40 AWG with a 1.0 mm spatial resolution.
Applications
- Airports and Border Crossings: Provides rapid, accurate threat detection for passenger baggage and cargo.
- Railway and Bus Stations: Supports high passenger flow, minimizing inspection time while ensuring maximum security.
- Malls, Hotels, and Events: Enhances public safety in high-traffic, large-scale venues.
- Government Buildings and Schools: Assists in keeping secure areas free of prohibited items with reliable scanning.
Price of Safeagle HP-SE6550C X-ray Baggage Scanner in Bangladesh (BD)
The
X-Ray Baggage Scanner ensures thorough and efficient security screening, making it essential for airports, government buildings, and high-security environments. Designed for precision, it quickly detects hidden threats while maintaining fast, reliable operation.
When you buy an X-Ray Baggage Scanner from
Crystal Vision Solutions, you receive authentic, high-quality products, competitive pricing, and expert customer support. Crystal Vision Solutions provides fast shipping and tailored advice, ensuring you find the best security solution for your needs.
