The

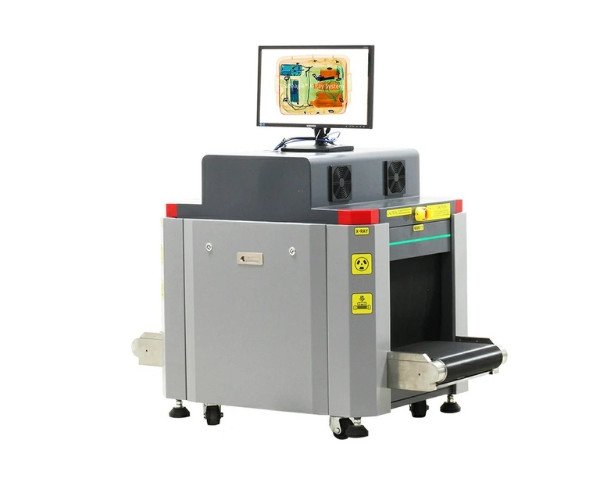

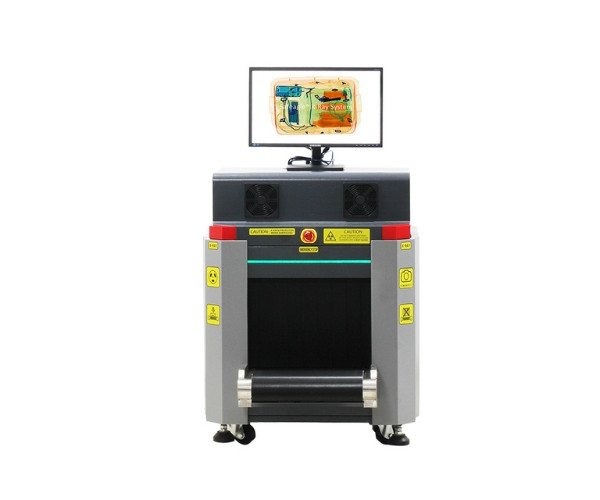

Safeagle HP-SE4333C Mini X-ray Scanner is designed to provide a compact, high-performance solution for screening small packages, documents, and envelopes. This lightweight, portable scanner is ideal for mobile and temporary security checks, especially at facility entrances. Therefore, making it a reliable asset for office mailrooms, small offices, and restricted spaces. With a tunnel opening of 43 x 33 cm, it fits easily through most doorways, thus allowing easy relocation and setup wherever it’s needed.
The HP-SE4333C scanner uses advanced 7-color imaging technology, assigning colors based on atomic numbers. This enables precise material differentiation for faster threat detection. Real-time processing and 30+ image enhancement options offer operators a clear and accurate view of scanned objects. Equipped with dual-energy imaging, it highlights organic, inorganic, and mixed materials for quick identification. Designed with user-friendly software and customizable keyboards, the scanner ensures an efficient user experience, enhancing detection accuracy and speed.
Safeagle HP-SE4333C Mini X-ray Scanner Specifications
| Feature |
Details |
| Tunnel Size |
436 mm (W) x 331 mm (H) |
| Dimensions |
1344 mm (L) x 781 mm (W) x 983 mm (H) |
| Conveyor Max Load |
150 kg |
| Belt Speed |
0.23 m/s, bidirectional |
| X-ray Generator Voltage |
100 kV |
| Wire Detectability |
38 AWG |
| Resolution |
1.0 mm (horizontal and vertical) |
| Steel Penetration |
16 mm typical |
| Tube Current |
0.7 mA |
| Cooling System |
Sealed oil bath with forced air |
| Beam Direction |
Diagonally upward |
| Operating Temperature |
0°C to 40°C (32°F to 104°F) |
| Storage Temperature |
-20°C to 60°C (-4°F to 140°F) |
| Humidity |
Up to 95% non-condensing |
| Power Requirements |
220 VAC ±10%, 50/60 Hz, 10A max |
Key Features
- 7-Color Imaging Technology: Differentiates materials based on atomic number, enabling clear color-coding for effective detection.
- Dual-Energy Detection: Identifies organic, inorganic, and mixed materials, making it easier to detect potential threats.
- Portable and Lightweight: Compact design with a 43 x 33 cm tunnel opening allows easy relocation and is ideal for smaller spaces.
- Real-Time Image Processing: Enables rapid analysis, improving screening efficiency with 30+ enhancement options.
- Compliance and Safety: Leaded structure and hermetic radiation system keep X-ray dose near background levels, meeting international safety standards.
Applications
- Office Mailrooms: Quickly scans parcels and envelopes to prevent prohibited items from entering.
- Small Office Entrances: Screens documents and small packages, enhancing security at facility entrances.
- Temporary Security Checks: Perfect for short-term security setups due to its portable design.
- Public Spaces: Ideal for use at high-traffic venues where small parcel checks are essential.
