The

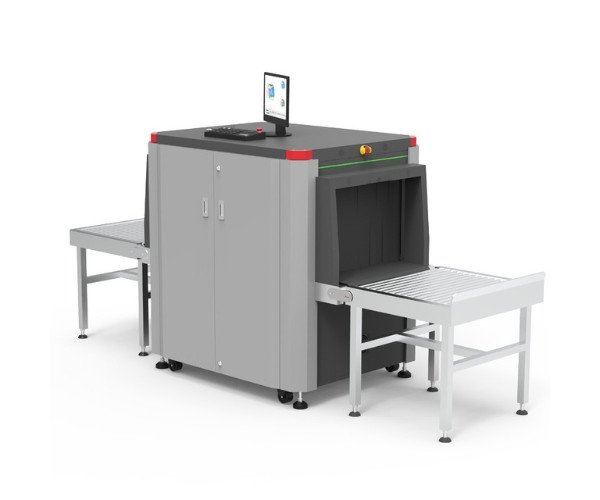

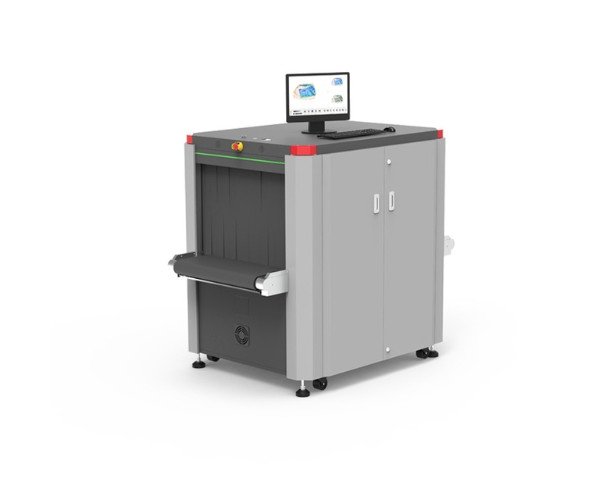

Safeagle HP-SE7550C X-ray Baggage Scanner is a cutting-edge security solution crafted to meet the stringent demands of high-traffic environments such as airports, railway stations, and malls. Equipped with dual-energy technology and advanced 4/7-color imaging, this high-performance scanner effectively distinguishes between organic, inorganic, and mixed materials. The HP-SE7550C utilizes an innovative Zeff-scan function, allowing operators to identify potential threats like explosives and narcotics, highlighting them in real-time with distinct colors based on atomic properties.
This scanner’s dual-energy X-ray technology assigns colors to various materials based on their atomic numbers, making it easier for operators to distinguish items like metals and organics. It also supports customizable split-screen and full-screen views for optimal flexibility, allowing operators to modify main and auxiliary screen color modes to improve screening efficiency. Designed for ease of use and equipped with real-time imaging processing, the HP-SE7550C is ideal for fast-paced security screening applications.
Safeagle HP-SE7550C X-ray Baggage Scanner Specifications
| Feature |
Details |
| Tunnel Size |
755 mm (W) x 555 mm (H) |
| Dimensions |
1723 mm (L) x 1080 mm (W) x 1425 mm (H) |
| Conveyor Max Load |
165 kg |
| Belt Speed |
0.23 m/s, bidirectional |
| X-ray Generator Voltage |
140 kV (optional 160 kV) |
| Wire Detectability |
40 AWG |
| Resolution |
1.0 mm (horizontal & vertical) |
| Steel Penetration |
36 mm typical |
| Tube Current |
0.7 mA |
| Cooling System |
Sealed oil bath with forced air |
| Beam Direction |
Diagonally upward |
| Operating Temperature |
0°C to 40°C (32°F to 104°F) |
| Storage Temperature |
-20°C to 60°C (-4°F to 140°F) |
| Humidity |
Up to 95% non-condensing |
| Power Requirements |
220 VAC ±10%, 50/60 Hz, 10A max |
Key Features
- Dual-Energy Detection: Differentiates materials and enhances visibility of hidden threats through color-coded imaging.
- Zeff-Scan Detection: Highlights potential explosives and narcotics based on atomic characteristics, improving threat identification.
- Switchable 4/7-Color Imaging: Customizable color modes for advanced material differentiation and precise threat detection.
- Flexible Viewing Options: Supports both split-screen and full-screen configurations for enhanced operator efficiency.
- High Penetration and Precision: Capable of penetrating up to 36 mm of steel with a spatial resolution of 1.0 mm, making it suitable for high-security settings.
Applications
- Airports and Border Security: Ensures swift, accurate threat detection in high-security environments.
- Railway and Bus Stations: Efficiently scans passenger luggage, identifying potential threats in seconds.
- Commercial Centers and Events: Enhances public safety by identifying prohibited items in dense, high-traffic areas.
- Government Buildings and Corporate Offices: Provides secure, reliable screening for restricted environments.
Price of Safeagle HP-SE7550C X-ray Baggage Scanner in Bangladesh (BD)
The
X-Ray Baggage Scanner ensures thorough and efficient security screening, making it essential for airports, government buildings, and high-security environments. Designed for precision, it quickly detects hidden threats while maintaining fast, reliable operation.
When you buy an X-Ray Baggage Scanner from
Crystal Vision Solutions, you receive authentic, high-quality products, competitive pricing, and expert customer support. Crystal Vision Solutions provides fast shipping and tailored advice, ensuring you find the best security solution for your needs.
