The

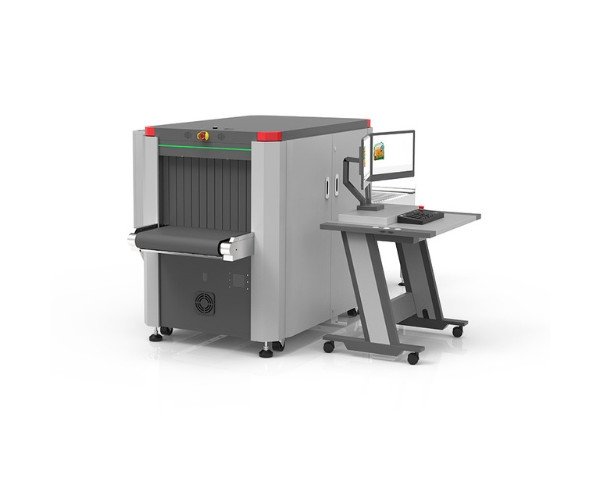

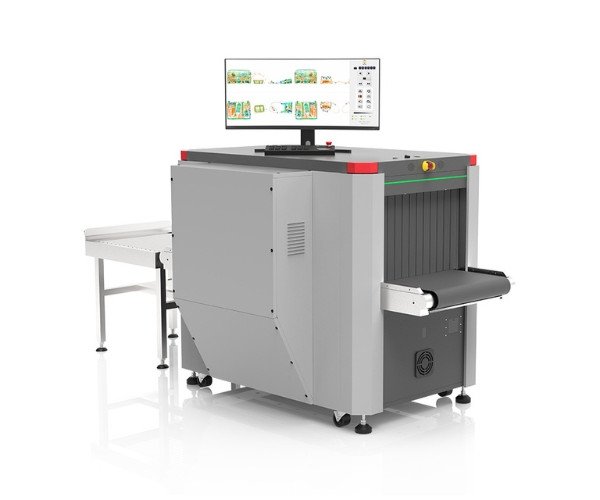

Safeagle HP-SE6550D Dual View X-ray Baggage Scanner combines precision with high-performance scanning for optimal security. This advanced scanner leverages dual-view technology with two X-ray generators to capture detailed images from both horizontal and vertical angles, significantly reducing the chance of missed items due to overlap or occlusion. Designed for high-traffic environments such as airports, border crossings, and railway stations, this scanner provides unmatched detection accuracy.
The HP-SE6550D’s
switchable 4/7-color imaging technology enables operators to customize color views for precise material identification, with each color corresponding to a specific atomic range. The scanner’s innovative Zeff-assisted detection highlights potential explosives and narcotics in real time, distinguishing high-risk items such as hazardous liquids and drugs using dual-energy differentiation. With a spacious tunnel size and an advanced L-shaped detector array, the HP-SE6550D supports high throughput and maximum security.
Safeagle HP-SE6550D Dual View X-ray Baggage Scanner Specifications
| Feature |
Details |
| Tunnel Size |
654 mm (W) x 508 mm (H) |
| Dimensions |
2391 mm (L) x 1685 mm (W) x 1775 mm (H) |
| Conveyor Max Load |
165 kg |
| Belt Speed |
0.23 m/s, bidirectional |
| X-ray Generators |
Dual 140 kV |
| Wire Detectability |
40 AWG |
| Resolution |
1.0 mm (horizontal & vertical) |
| Steel Penetration |
36 mm typical |
| Tube Current |
0.7 mA |
| Cooling System |
Sealed oil bath with forced air |
| Beam Direction |
Diagonally upward |
| Detector Type |
L-shaped array |
| Operating Temperature |
0°C to 40°C (32°F to 104°F) |
| Storage Temperature |
-20°C to 60°C (-4°F to 140°F) |
| Humidity |
Up to 95% non-condensing |
| Power Requirements |
220VAC ±10%, 50/60Hz, 10A max |
Key Features
- Dual-View X-ray Imaging: Scans objects from two angles, eliminating blind spots and ensuring comprehensive inspection.
- Switchable 4/7-Color Imaging: Distinguishes between materials by assigning specific colors for organics, inorganics, and mixtures.
- Zeff-Assisted Threat Detection: Highlights potential explosive or narcotic items in real-time, enhancing threat identification.
- Dual-Energy Differentiation: Distinguishes between metallic and organic items, automatically adjusting for optimal clarity.
- High Resolution and Penetration: Achieves wire detectability up to 40 AWG with 36 mm steel penetration, providing clear images of dense objects.
- Customizable Display Modes: Offers split-screen and full-screen viewing options for better image analysis.
Applications
- Airport Security and Customs Checkpoints: Reduces inspection times and ensures accurate identification of concealed items.
- Public Venues and Events: Manages large volumes of baggage with high-resolution, bidirectional scanning.
- Railway Stations and Border Security: Enhances screening effectiveness with dual-view imaging and split-screen options for clear material differentiation.
- Hotels and Commercial Spaces: Provides high-performance threat detection for public safety in large, busy environments.
Price of Safeagle HP-SE6550D Dual View X-ray Baggage Scanner in Bangladesh (BD)
The
X-Ray Baggage Scanner ensures thorough and efficient security screening, making it essential for airports, government buildings, and high-security environments. Designed for precision, it quickly detects hidden threats while maintaining fast, reliable operation.
When you buy an X-Ray Baggage Scanner from
Crystal Vision Solutions, you receive authentic, high-quality products, competitive pricing, and expert customer support. Crystal Vision Solutions provides fast shipping and tailored advice, ensuring you find the best security solution for your needs.
