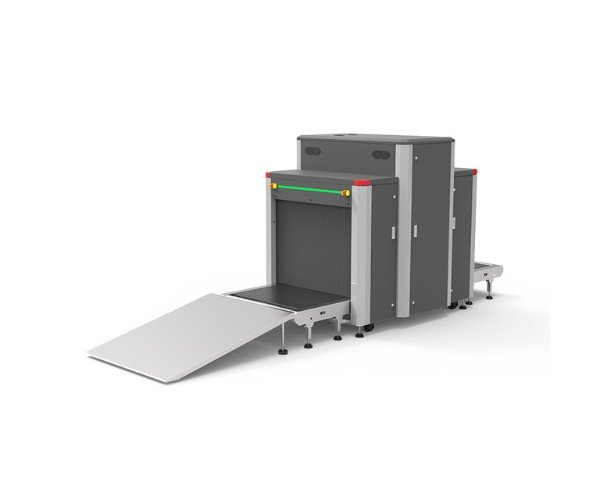

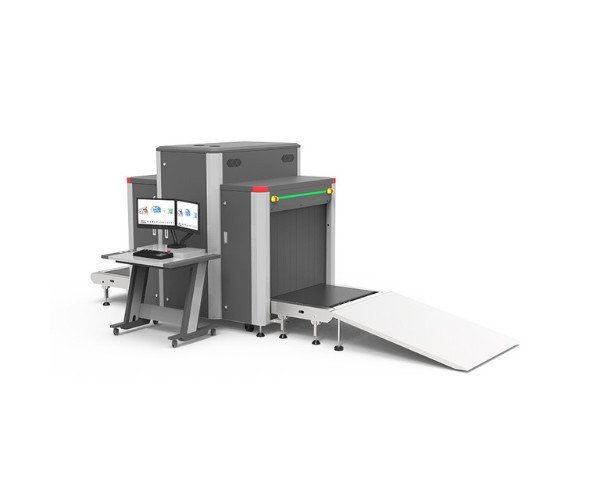

Safeagle HP-SE8065C Large X-ray Detector combines advanced imaging capabilities with high efficiency, therefore making it the ideal solution for thorough cargo and parcel screening. With a tunnel size of 801 mm x 660 mm, it’s engineered to handle large packages and high-volume environments. This includes cargo facilities, border crossings, and high-security installations.
The HP-SE8065C features innovative 4/7-color switchable imaging technology that assigns colors based on atomic number, helping operators quickly differentiate between materials. Real-time processing and Zeff-scan function assist in detecting hazardous liquids, explosives, and narcotics by color-coding these threats based on atomic composition. Equipped with dual-energy X-ray, the system provides a clear distinction between organic materials, which appear in orange, and metallic objects, in blue, to improve the efficiency and accuracy of inspections.
This scanner's split and full-screen viewing options, along with customizable image modes. This allows operators to monitor cargo details from various angles. The scanner’s robust build, advanced software, and intuitive operation are tailored for rigorous inspection requirements in high-traffic and high-security environments.
Safeagle HP-SE8065C Large X-ray Detector Specifications
| Feature |
Details |
| Tunnel Size |
801 mm (W) x 660 mm (H) |
| Dimensions |
2736 mm (L) x 1050 mm (W) x 1465 mm (H) |
| Conveyor Max Load |
200 kg |
| Belt Speed |
0.23 m/s, bidirectional |
| X-ray Generator Voltage |
140 kV (optional: 160 kV) |
| Wire Detectability |
40 AWG |
| Spatial Resolution |
1.0 mm (horizontal and vertical) |
| Steel Penetration |
36 mm steel, typical |
| Tube Current |
0.7 mA |
| Cooling System |
Sealed oil bath with forced air |
| Beam Direction |
Diagonally upward |
| Dual-Energy |
Yes |
| Operating Temperature |
0°C to 40°C (32°F to 104°F) |
| Storage Temperature |
-20°C to 60°C (-4°F to 140°F) |
| Humidity |
Up to 95% non-condensing |
| Power Requirements |
220 VAC ±10%, 50/60 Hz, 10A max |
Key Features
- 4/7-Color Imaging Technology: Enables precise material differentiation with color-coded atomic range, aiding rapid threat detection.
- Dual-Energy Imaging: Differentiates organic, inorganic, and mixed objects to help identify potential threats with high accuracy.
- Real-Time Hazard Detection: Zeff-scan function highlights explosives, narcotics, and hazardous liquids, alerting operators to potential threats.
- High Throughput: Supports bidirectional screening with a 0.23 m/s conveyor speed for efficient, high-volume inspections.
- Customizable Viewing Options: Split and full-screen views with switchable screen modes to enhance operational convenience.
Applications
- Border Security: Inspects large packages at checkpoints to ensure safe transport.
- Airports and Cargo Hubs: Screens baggage and cargo for prohibited items.
- High-Security Facilities: Suitable for government buildings, military installations, and logistics centers.
- Commercial Venues: Monitors parcels and packages in shopping malls, hotels, and public venues.
Price of Safeagle HP-SE8065C Large X-ray Detector in Bangladesh (BD)
The
X-Ray Baggage Scanner ensures thorough and efficient security screening, making it essential for airports, government buildings, and high-security environments. Designed for precision, it quickly detects hidden threats while maintaining fast, reliable operation.
When you buy an X-Ray Baggage Scanner from
Crystal Vision Solutions, you receive authentic, high-quality products, competitive pricing, and expert customer support. Crystal Vision Solutions provides fast shipping and tailored advice, ensuring you find the best security solution for your needs.
