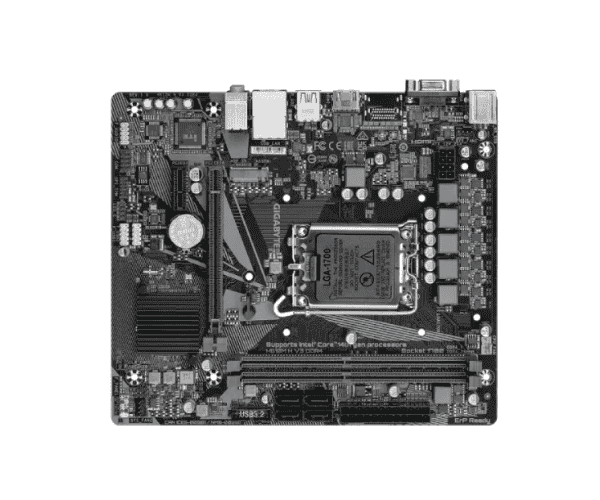

About the GIGABYTE H610M H V3 DDR4 Micro ATX Motherboard
The
GIGABYTE H610M H V3 DDR4 Micro ATX Motherboard will not be the weakest link in the creation of any Intel modern system. Its processor supported series ranges from the high-end desk models to the budget-conscious ones, namely: Intel 12th, 13th, and 14th generations. DDR4 support, PCIe 4.0, HDMI 2.1, Realtek audio-inclusive performance for everyday computing and casual gaming are at one's disposal with this board.
Specification
| Feature |
Details |
| Brand |
GIGABYTE |
| Model |
H610M H V3 |
| Chipset |
Intel® H610 Chipset |
| Socket Type |
LGA 1700 |
| CPU Support |
Intel® 12th, 13th, and 14th Gen Core i9, i7, i5, i3, Pentium®, Celeron® processors |
| L3 Cache |
Varies with CPU |
| Memory Type |
DDR4 |
| Memory Slots |
2 x DDR DIMM sockets |
| Maximum Memory Support |
Up to 64GB (32GB per DIMM) |
| Graphics |
Intel® HD Graphics, HDMI 2.1, D-Sub |
| Expansion Slots |
1 x PCIe x16 (PCIe 4.0), 1 x PCIe x1 (PCIe 3.0) |
| USB Ports |
4 x USB 3.2 Gen 1, 4 x USB 2.0/1.1 |
| Networking |
Realtek GbE LAN (1Gbps/100Mbps/10Mbps) |
| Storage |
1 x M.2 connector, 4 x SATA 6Gb/s |
| Audio |
Realtek Audio CODEC, High Definition Audio (2/4/5.1/7.1-channel) |
| Form Factor |
Micro ATX |
| Power Connectors |
24-pin ATX, 8-pin ATX 12V power connector |
Description
Availability of GIGABYTE H610M H V3 DDR4 Micro ATX Motherboard in Bangladesh
The
GIGABYTE H610M H V3 Micro ATX Motherboard is available in Bangladesh through various online portals like Daraz and also in some computer hardware shops. This motherboard becomes the best option for those seeking an affordable but powerful motherboard to build Intel-based PCs that provide good performance during regular use and light gaming.
User Experience of GIGABYTE H610M H V3 DDR4 Micro ATX Motherboard
Users loved
GIGABYTE H610M H V3 Micro ATX Motherboard because it is stable and has an ideal price-to-value ratio. It's working very smoothly with the 12th, 13th, and 14th generation processors of Intel, making performance smooth enough for office work, browsing, and even some gaming. The installation is not too difficult, and the motherboard is very smooth in its running.
Why Choose the GIGABYTE H610M H V3 Micro ATX Motherboard?
The
GIGABYTE H610M H V3 Micro ATX Motherboard offers reliability for building modern PCs. It supports Intel 12th, 13th, and 14th Gen processors, DDR4 RAM for excellent multitasking, and PCIe 4.0 for strong graphical performance. The integrated graphics motherboard features HDMI 2.1 with plenty of storage options for significant cost savings.
Key Features
- Intel Processor Support: The chipset supports Intel Core i9, i7, i5, i3, Pentium®, Celeron, and 12th, 13th, and 14th Gen Core™ processors.
- DDR4 Memory Support: Up to 64GB of DDR4 RAM ensures fast processing of data and smooth multitasking.
- PCIe 4.0: For a high-speed data transfer of a graphics card and expansion device
- Graphics Options: Intel HD Graphics, HDMI 2.1 and D-Sub, video output
- USB Ports: Four USB 3.2 Gen 1 ports and four USB 2.0/1.1 ports
- Realtek Audio: High-Definition Audio with 2/4/5.1/7.1 channels.
- M.2 and SATA Support: Fast storage options with 1 x M.2 connector and 4 x SATA 6Gb/s connectors.
- Compact Micro ATX Form Factor: perfect for smaller, more efficient builds
How to Install GIGABYTE H610M H V3 DDR4 Micro ATX Motherboard
- Preparation: Anti Static assembly surface shall be prepared for PC assembling
- CPU Installation: The Intel processor shall be fitted in the LGA 1700 socket carefully.
- Installing the RAM: DDR4 memory modules are to be installed into the DIMM slots.
- Mount the motherboard: It is to be aligned to the case's mounting holes using screws.
- Connect GIGABYTE H610M H V3 Micro ATX Motherboard: attached 24-pin ATX power connector and an 8-pin CPU power connector.
-
Install Storage: Connect your SSDs or hard drives to the M.2 and SATA connectors.
- Installing the graphics card: Your graphics card will go in a PCIe x16 slot.
- Hook up peripherals: Using USB ports, connect the keyboard and mouse, among others.
- Power On & OS installation: Switch it on and install your operating system.
Why Buy From Crystal Vision Solution?
Crystal Vision Solution offers the
GIGABYTE H610M H V3 DDR4 Micro ATX Motherboard at competitive prices with excellent customer service and expert support. We ensure timely delivery, secure payments, and hassle-free returns, making it easy to purchase with confidence from a trusted supplier for your PC build.
What is the Price of the GIGABYTE H610M H V3 DDR4 Micro ATX Motherboard in Bangladesh?
The latest price of
Gigabyte H610M H V3 DDR4 Micro ATX Motherboard in Bangladesh depends on quantity.
Crystal Vision Solution ensures this motherboard has the best market price in Bangladesh. Our product is 100% original and lowest price in Bangladesh. All kinds of services are the best in Bangladesh, and contact us for any information and latest price.
