About of Toa D-921F Mic Input Module
The Toa D-921F Mic Line Input Module is versatile in a range of audio systems. Created for professional use, this module serves both microphone and line-level inputs. Suitable for public address systems, it ensures high-quality audio processing along with efficient integration.
Specification
| Feature |
Details |
| Model |
Toa D-921F |
| Type |
Mic/Line Input Module |
| Inputs |
4x Microphone, 4x Line |
| Audio Channels |
8 |
| Input Impedance |
10kΩ (Microphone), 10kΩ (Line) |
| Output Impedance |
1kΩ |
| Gain Control |
Yes |
| Audio Response |
20 Hz – 20 kHz |
| Mounting Type |
Rack Mount |
| Power Supply |
24V DC |
| Weight |
1.3 kg |
| Dimensions (WxHxD) |
482 x 44 x 242 mm |
Description

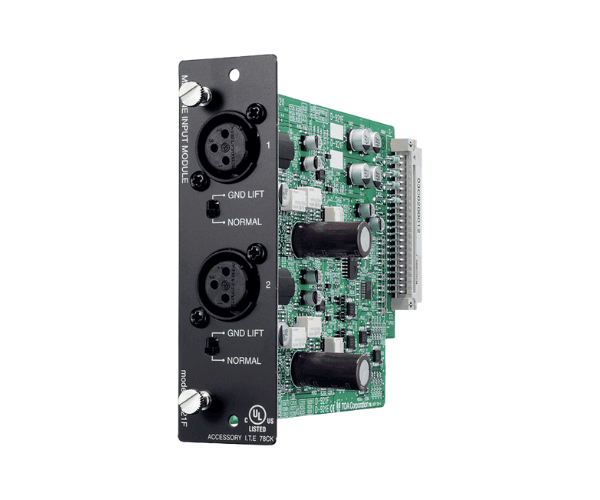

Toa D-921F Mic Line Input Module in BD
The TOA D-921F MIC LINE MODULE offers an interface with high-quality, clean sound reproduction for a professional effect. It operates on both microphone and line-level signals, making the device ideal for use in various aspects of PA Installation, Recording, and Broadcasting. This unit usually finds a wider field of application on account of having eight channels that include variable gains for generality.
User Experience
The Toa D-921F Mic Input Module serves easily and well in the provision of crystal-clear audio. Its design makes the unit easily installable in an existing sound system, and the gain control allows the user to fine-tune the input levels for optimum sound quality. Be it a conference room or a big auditorium, Toa D-921F will always provide reliable high-performance audio. With its solid construction and compact design, installation becomes easy while the balanced inputs actively reduce unwanted noise for professional-grade sound. In sum, the Toa D-921F excels in most situations and adapts to a variety of installation environments.
Why Choose the Toa D-921F Mic Input Module?
- Multi-purpose Inputs: Suitable for microphone and line-level signals.
- High Audio Quality: Clear and balanced audio with wide frequency response.
- Ease of Installation: The module is rack mountable and easily fitted into systems.
- Flexible Gain Control: The volume can be set with great precision.
- Reliable: Durable construction with real value in performance.
Installation Step
- Unpacking the Toa D-921F Module carefully.
- Mount in a normal 19-inch audio rack.
- Connect the microphone or line-level input cables to the respective ports.
- Attach securely, to the unit, the power supply to be used; 24V DC
- Set the gain control to your desired audio levels.
- Verify connections and turn power on.
- Assure clarity, test module for proper signal processing.
- Do the fine adjustments needed for best performance.
