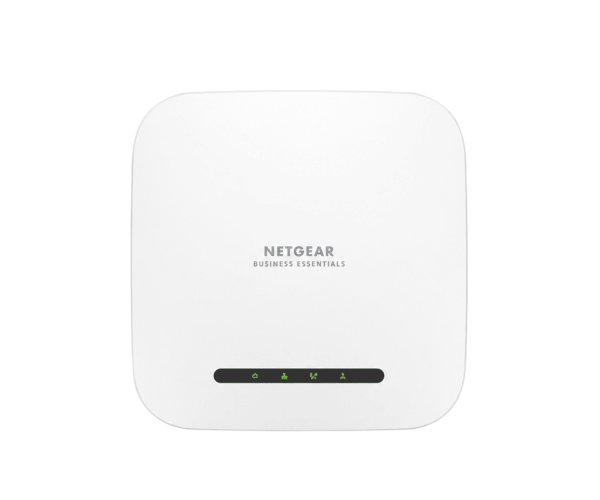

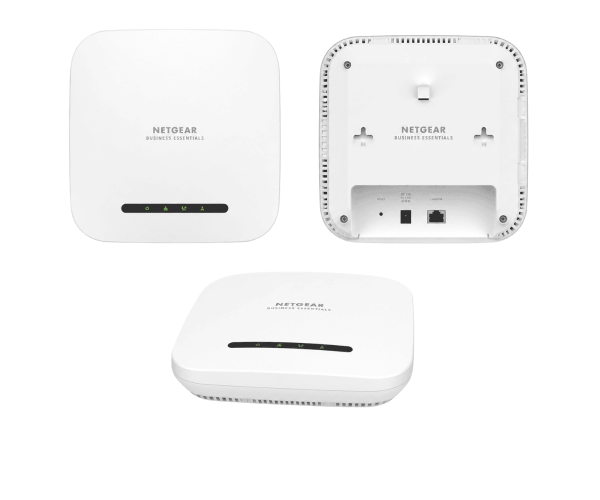

Netgear WAX220 Wi-Fi 6 AX4200 PoE Access Point

  • Product id:  25414
  • Stock: In Stock
  • Brand: NETGEAR
  • Model: WAX220
WhatsApp Inquiry

Key Features

    • Frequency Bands: Dual-Band (2.4 GHz and 5 GHz)
    • Spatial Streams: 4×4 MU-MIMO (5 GHz), 2×2 MU-MIMO (2.4 GHz)
    • Maximum Power Consumption: 15W
    • Security: WPA, WPA2, WPA3, MAC Address Filtering, Up to 4 SSIDs
    • Management: Local Web-Based Management
    • Installation: Ceiling or Wall Mount

Please confirm availability before completing your purchase by calling us.

The actual product may vary in size, color, and layout compared to the website display images. Claims will not be accepted for image discrepancies.

We reserve the right to change the price of any product at any time due to the volatile nature of technology prices.

We cannot guarantee that the information on this page is 100% accurate. Crystal Vision Solutions not responsible for any results obtained from using this information.

Main Features
Mounting Type Ceiling / Wall Mount (Hardware harness included)
Type Business Essentials Standalone Wireless Access Point
Wi-Fi Standard Wi-Fi 6 (IEEE 802.11ax)
Use Case Home Office, SOHO, Retail Shops, Lobbies, Medical Offices
Management Standalone Local Web GUI (No app or subscription required)
Wireless Bands Dual-Band Concurrent (2.4GHz + 5GHz)
Performance
Antenna Gain 2.4GHz: 5 dBi | 5GHz: 5 dBi
MIMO Configuration 5GHz: 4×4 MU-MIMO | 2.4GHz: 2×2 MIMO
Channel Width Support 5GHz: 20/40/80/160 MHz | 2.4GHz: 20/40 MHz
Maximum Data Rate Combined up to 4.2 Gbps (AX4200)
Physical Specification
Weight 523 g (1.15 lbs)
Coverage Area Up to 2,000 sq\ ft(185 m^2)
Dimensions (H x W x D) 196 × 196 × 44.4 mm (7.71 × 7.71 × 1.74 inches)
Ethernet Port 1 × 100/1000/2500 Mbps Multi-Gigabit Ethernet (RJ-45) PoE+ Port with Auto MDI-X
Antennas Internal Antennas
LED Indicators 4 × Status LEDs (Power, LAN, 2.4GHz, 5GHz)
Power Source
Power Input IEEE 802.3at PoE+ (Power over Ethernet) OR External DC 12V / 2.5A Power Adapter
Power Consumption 15.2 Watts (MAX)
Temperature
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)

About Netgear WAX220 Wi-Fi 6 AX4200 PoE Access Point

The Netgear WAX220 Wi-Fi 6 AX4200 PoE Access Point is a state-of-the-art dual-band wireless access point that has been created to offer next-generation connectivity in high-density situations. The access point makes use of Wi-Fi 6 technology and is part of the Business Essentials product range from Netgear, ensuring efficient multi-gigabit wireless performance tailored specifically for device-centric networks without any expensive software subscription. Equipped with a slim design, flexible placement capabilities within the structure, and standalone architecture, the access point ensures high capacity coverage of Bangladesh’s business structures and offices through a centralized application system.

Netgear WAX220 Wi-Fi 6 AX4200 PoE Access Point In BD

The Netgear WAX220 Wi-Fi 6 AX4200 PoE Access Point is a highly speedy and advanced dual band Wi-Fi access point that has been engineered for future network connectivity in crowded areas. With the help of next generation Wi-Fi 6 (802.11ax) technology, this access point offers an amazing aggregate throughput speed capacity of 4.2 Gbps (4200 Mbps), which is distributed on dual-band radios with 3.6 Gbps on 5 GHz and 600 Mbps on 2.4 GHz bands. This access point is designed to perform perfectly in crowded networks using a dedicated 2.5G Multi-Gigabit Ethernet port and 160MHz channel bandwidth for wireless uplinks and low latency data transfer. This access point comes in sleek design with ceiling and wall mount installation flexibility and a highly efficient heatsink hardware chassis for its operation.

Why Choose Netgear WAX220 Wi-Fi 6 AX4200 PoE Access Point?

The Netgear WAX220 Access Point provides ultra-fast, consistent, and very efficient wireless networking for difficult IT environments which cater to enormous client numbers. The access point is optimized with advanced Wi-Fi 6 technologies such as OFDMA and MU-MIMO (including Release 2 uplink mapping) so that even if there are enormous amounts of clients connected, one gets an interference-free Internet connection. This device also has the capability to ensure enterprise-level guest traffic isolation and advanced security protocols for a safe environment, and also comes with a highly scalable software controller.

Key Features

  • Blazing Wi-Fi 6 Speeds: Delivers dual-band AX4200 aggregate speeds up to 4.2 Gbps (3.6 Gbps on 5 GHz and 600 Mbps on 2.4 GHz).
  • Multi-Gigabit Wired Port: Equipped with one 2.5 Gbps Ethernet port to eliminate network bottlenecks at the switch level.
  • 160 MHz Channel Width: Supports ultra-wide 160 MHz channels on the 5 GHz radio for maximum data throughput capabilities.
  • Optimized Antenna Design: Integrated 4x4 MIMO on 5 GHz and 2x2 MIMO on 2.4 GHz with high-gain 5 dBi internal antennas.
  • Massive Client Support: Safely manages up to 256 maximum users and 75 concurrent active devices over a 2,000 sq ft area.
  • Power over Ethernet (PoE+): Convenient deployment using standard 802.3at PoE+ power drawing a low 15.2W via a single LAN drop.
  • Robust Enterprise Security: Implements secure WPA3 authentication alongside MAC address filtering and up to 4 isolated SSIDs.
  • Subscription-Free Management: Simple standalone setup configured in under 10 minutes via a secure local web browser GUI.
  • Premium Thermal Build: Engineered with a finned metal back plate acting as a heavy-duty heatsink for continuous high-load operations.

Why Buy Netgear WAX220 Wi-Fi 6 AX4200 PoE Access Point?

Netgear WAX220 Wi-Fi 6 AX4200 PoE Access Point can be called a perfect choice of equipment for those enterprises which have to provide fast and reliable coverage of their premises with the help of wireless networking technologies. The equipment offers a reliable performance of gigabit speeds, easy-to-install floor mounting, and automatic integration into the ecosystem. No matter whether you want to install this equipment in a corporate office, a hotel, or in your zero-compromise home, you will get no downtime of the network.

Where Can You Use Netgear WAX220 Wi-Fi 6 AX4200 PoE Access Point?

The Netgear WAX220 Wi-Fi 6 AX4200 PoE Access Point is ideal for a wide range of networking environments, including:

  • High-density corporate offices and open collaborative workspaces.
  • Modern university campuses, classrooms, training facilities, and lecture halls.
  • Device-heavy smart homes and sprawling luxury residential estates.
  • Hospitality venues including hotels, convention centers, cafes, and restaurants.
  • Medical clinics and hospital wards requiring reliable wireless data transmission links.
  • High-traffic retail storefronts, malls, and public business lounges.
  • Multi-switch IT infrastructure layouts seeking a unified wireless management layer.

Why Choose Crystal Vision Solutions?

The Crystal Vision Solutions is a trustworthy supplier of enterprise level IT hardware and networking solutions in Bangladesh. We offer genuine products from leading international brands with competitive pricing, accompanied by professional technical assistance, fast delivery all over the country and excellent after sales service. Our commitment to quality and customer satisfaction helps businesses build efficient, secure, and scalable IT infrastructure with confidence.

Review

Get specific details about this product from customers who own it.

Questions

Have question about this product? Get specific details about this product from expert.

No questions have been asked about this product.
