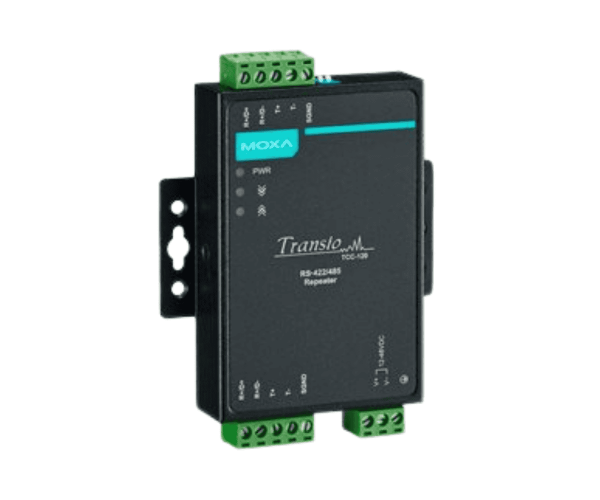

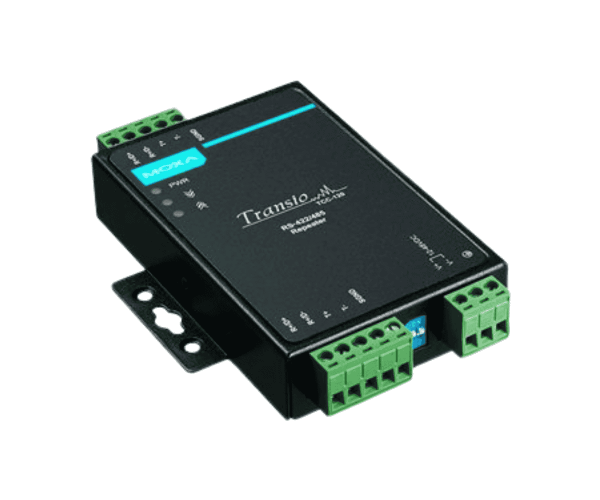

Overview of the Moxa TCC-120 Industrial RS-422/485 Converter
Moxa TCC-120 Industrial RS-422/485 Converter is a high-speed serial signal converter for industrial uses requiring strong, long-distance RS-422 or RS-485 communications. The TCC-120 offers extended transmission distance, improved signal quality, and data transfer reliability in harsh environments. The TCC-120 is equipped with simple wiring using terminal block connectors and is wall-mountable or mountable on DIN rails. For additional protection, the TCC-120I model offers 2 kV optical isolation against surges and ground loops. The converter is suitable for use in factories, SCADA, utilities, and transportation networks where serial communication is important.
Moxa TCC-120 Industrial RS-422/485 Converter in Bangladesh
The Moxa TCC-120 is widely employed in Bangladesh by utility operators, SCADA integrators, and industrial automation engineers. It is particularly sought after in water and power plants, factories, and transport infrastructures where there is a need for serial communication over long distances. Local distributors provide configuration support, installation services, and warranty services and are thus a reliable solution for industrial serial networks.
User Experience of Moxa TCC-120 Industrial RS-422/485 Converter
The Moxa TCC-120 is simple to install and configure based on customers. Its DIP switches allow easy internal terminators activation for RS-422/485 communications. Terminal block connections ease wiring, and LED indicators provide instant visual indication of power and signal activity. The 2 kV isolation version protects equipment from voltage surges and ground loops and permits continuous communication in electrically hostile industrial environments.
Why Choose Moxa TCC-120 Industrial RS-422/485 Converter
The Moxa TCC-120 excels with its balance of ruggedness, versatility, and performance. It has a rich set of serial device support, expands RS-422/485 communication distances, and avoids signal degradation. The 2 kV isolation shields attached devices, while its metal housing in small size allows for secure mounting on DIN-rail or on a wall. Its industrial-grade design delivers reliable performance under tough temperature extremes and industrial environments, making it perfect for mission-critical applications.
Key Features
- Extends RS-422/485 communication distance and signal quality
- 2kV optical isolation option (TCC-120I model)
- Terminal block connectors for easy wiring
- Internal 120-ohm terminator selectable by DIP switch
- DIN-rail or wall mounting
- High data rate: 50 bps – 921.6 kbps
- Power and data transmit LEDs
- Heavy-duty metal enclosure for ruggedness
- Power input: 12–48 VDC
- Operating temperature: –20°C to +60°C
Where Moxa TCC-120 Industrial RS-422/485 Converter Can Be Used?
- Industrial automation systems
- SCADA and remote monitoring networks
- Factory floor process control
- Water, gas, and electric power utilities
- Transportation signaling and control systems
- Building and infrastructure management
Why Buy From Crystal Vision Solution?
Crystal Vision Solutions offers the MOXA TCC-120 Industrial RS-422/485 Converter at competitive prices with excellent customer service and expert support. We ensure timely delivery, secure payments, and hassle-free returns, making it easy to purchase with confidence from a trusted supplier.
