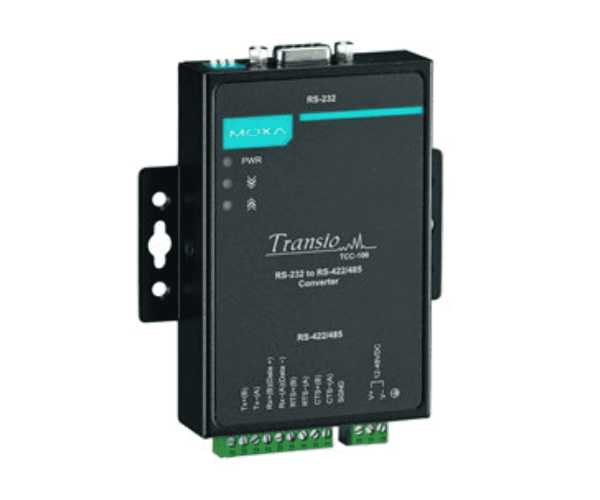

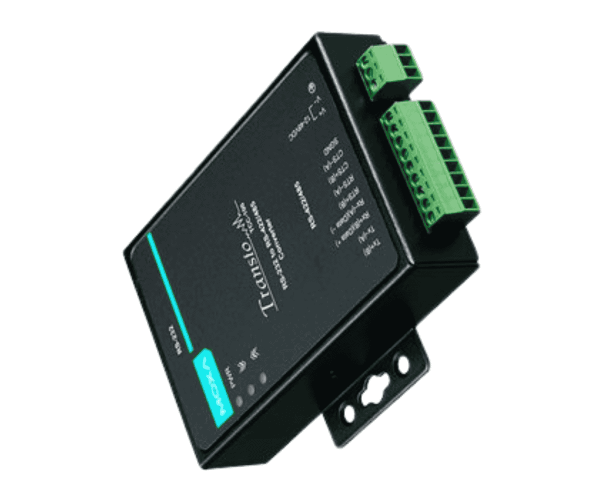

Moxa TCC-100I Industrial RS-232 to RS-422/485 Converter

Moxa TCC-100I Industrial RS-232 to RS-422/485 Converter

Product id: 23655
Stock: In Stock
Brand: MOXA
Model: TCC-100I

Based on 0 reviews. - Write a review

WhatsApp Inquiry

This product has a minimum quantity of 100

Key Features

- Ports: 2 (RS-232 + RS-422/485)
- Data Rate: 50 bps to 921.6 kbps
- Socket Mode: DB9 and Terminal Block
- Supported Protocols: RS-232, RS-422, RS-485

View more info

DISCLAIMER

Please confirm availability before completing your purchase by calling us.

The actual product may vary in size, color, and layout compared to the website display images. Claims will not be accepted for image discrepancies.

We reserve the right to change the price of any product at any time due to the volatile nature of technology prices.

We cannot guarantee that the information on this page is 100% accurate. Crystal Vision Solutions not responsible for any results obtained from using this information.

Main Features
Data Rate	Up to 921.6 kbps
Power Consumption	150 mA @ 12 VDC
Configuration Options	DIP switches, termination options
Isolation	2kV
Data Bits	5, 6, 7, 8
Management	LED indicators
Baud Rate	50 bps – 921.6 kbps
Flow Control	ADDC (auto direction for RS-485), RTS/CTS support
Basic Information
Supported Protocols	RS-232, RS-422, RS-485
Socket Mode	DB9 (RS-232), Terminal block (RS-422/485)
Performance
Ports	2 serial ports
Physical Specification
Dimensions	67 × 100.4 × 22 mm
Weight	0.148 kg
Power Source
Power Input	12 – 48 VDC
Temperature
Operating Temperature	–20 °C to 60 °C (standard)
Storage Temperature	–40 °C to 85 °C

About MOXA TCC-100I Industrial RS-232 to RS-422/485 Converter

MOXA TCC-100I Industrial RS-232 to RS-422/485 Converter is an industrial-grade serial media converter for industrial environments. It converts RS-232 signals to RS-422 or RS-485 modes, has 2 kV optical isolation, wide voltage input, and metal housing. It features automatic data direction control and long-range serial links in harsh environments.

MOXA TCC-100I Industrial RS-232 to RS-422/485 Converter in Bangladesh

In Bangladesh, the MOXA TCC-100I is used by automation firms, SCADA integrators, and utility networks. It's also favored in factories, power plants, and infrastructure projects where reliable serial communication is critical. Technical service partners and local distributors provide support, installation advice, and warranty for this industrial-strength converter.

User Experience of MOXA TCC-100I Industrial RS-232 to RS-422/485 Converter

Users have reported that MOXA TCC-100I is simple to install and service. The DIP switches simplify RS-422/RS-485 mode setup, and the LED indicators (Power, Tx, Rx) offer instant feedback. With 2 kV isolation, it handles electrical interference and ground loops smoothly. Users run it continuously in industrial environments with zero downtime.

Why Choose MOXA TCC-100I Industrial RS-232 to RS-422/485 Converter?

Choose the MOXA TCC-100I if you need serial protection as well as conversion. Its 2 kV isolation protects your devices against surges and ground faults. It supports a vast array of serial communications, auto direction control (ADDC), and preserves signal integrity over long cable lengths. With metal housing and industrial-grade construction, it's built to perform in rugged environments.

Key Features

Converts RS-232 to RS-422 or RS-485 (2-wire or 4-wire)
2 kV optical isolation (on "I" model)
Auto data direction control (ADDC) for RS-485
Wide serial rate: 50 bps to 921.6 kbps
Metal case IP30 rated
DB9 female on RS-232, terminal block on RS-422/485
LED indicators: Power, Tx, Rx
Wall mount or DIN-rail mounting
Wide-voltage input 12–48 VDC
Work at –20 °C to 60 °C (normal), optionally –40 to 85 °C

Where MOXA TCC-100I Industrial RS-232 to RS-422/485 Converter Can Be Used?

Industrial automation systems linking legacy RS-232 devices
SCADA/telemetry and process control networks
Factory floor device communications
Remote instrumentation and data logging
Utility networks (water, gas, energy)
