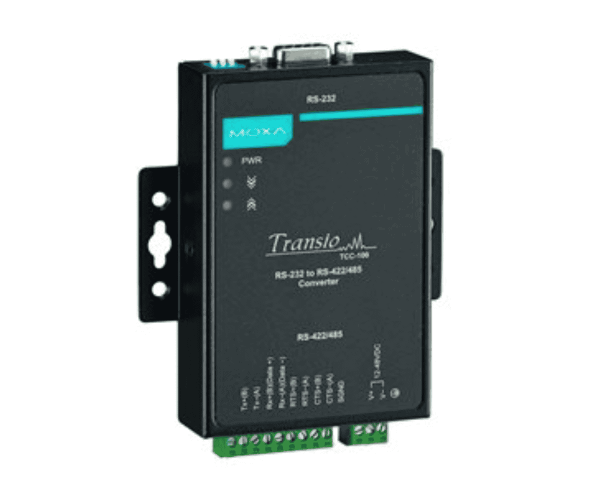

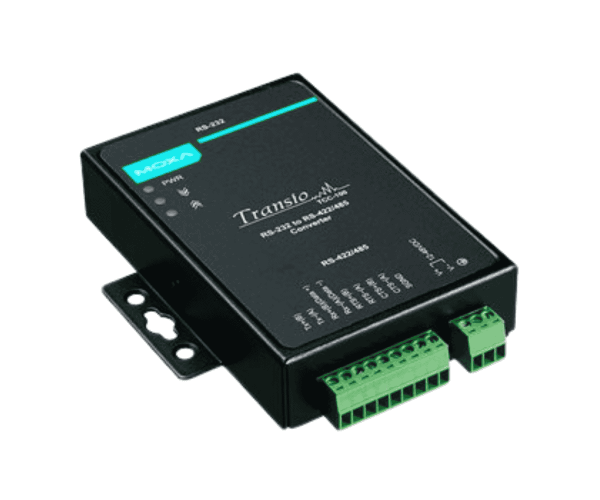

About MOXA TCC-100 Industrial RS-232 to RS-422/485 Converter
MOXA TCC-100 Industrial RS-232 to RS-422/485 Converter is a durable serial converter that translates RS-232 signals into either RS-422 or RS-485. It supports both 2-wire and 4-wire RS-485, wide input voltage range, optional optical isolation, and metal case, and is appropriate for industrial deployment with long-distance reliable serial connection.
MOXA TCC-100 Industrial RS-232 to RS-422/485 Converter in Bangladesh
In Bangladesh, MOXA TCC-100 Industrial RS-232 to RS-422/485 Converter is supplied by major automation, control, and networking equipment distributors. System integrators across factory, power plant, water treatment plant, and telecom/SCADA sites utilize it widely. Locally, users find it to be rugged, to have high-temperature models, and to be supported by local representatives from MOXA for spares and service.
User Experience of MOXA TCC-100 Industrial RS-232 to RS-422/485 Converter
Users say that the MOXA TCC-100 Industrial RS-232 to RS-422/485 Converter is simple to install and set up due to its terminal block wiring and DIP-switch options. The power, Tx, and Rx LED indicators assist in speedy diagnostic troubleshooting. Several state that it handles tough conditions (electrical noise, temperature fluctuations) without breakdown. The automatic data direction control (ADDC) of the converter eliminates the inconvenience of manual flow direction adjustment, easing RS-485 communication.
Why Choose MOXA TCC-100 Industrial RS-232 to RS-422/485 Converter
Choose the MOXA TCC-100 Industrial RS-232 to RS-422/485 Converter because it offers flexibility (RS-232 ↔ RS-422/RS-485), rugged construction (metal housing, optional isolation), and high performance (bauds up to 921.6 kbps). The 2 kV isolation option (in TCC-100I model) protects your devices in ground loop or surge area environments. Its wide-temperature versions (as low as -40 °C) accommodate harsh environments. All these features make it an ideal choice for industrial communication.
Key Features
- Serial-to-RS-422, serial-to-2-wire and 4-wire RS-485 translation support
- Automatic Data Direction Control (ADDC) for RS-485
- TCC-100I models with 2 kV isolation protection (optional)
- Wide baud rate support from 50 bps to 921.6 kbps (non-standard baud rates supported)
- DB9 female connector on RS-232 side and terminal block on RS-422/RS-485 side
- Power, Tx, Rx activity LED indicator
- Metal housing and IP30 rated
- Wall mount or DIN-rail mountable (mounting kit provided)
- Standard operating temperature -20 to 60 °C, extended temperature model -40 to 85 °C
- Level of ESD protection up to 15 kV
Where MOXA TCC-100 Industrial RS-232 to RS-422/485 Converter Can Be Used?
- Factory control networks interconnecting legacy RS-232 controllers and RS-485/422 networks.
- SCADA and telemetry applications like water, power, and gas utilities.
- Transportation infrastructure and signal control systems.
- Severe industrial environments with electrical noise, surge, and temperature extremes.
- Remote monitoring or instrumentation with long cable runs.
- Replaces legacy serial devices in production, process, or building management systems.
Why Buy From Crystal Vision Solution?
Crystal Vision Solutions offers the MOXA TCC-100 Industrial RS-232 to RS-422/485 Converter at competitive prices with excellent customer service and expert support. We ensure timely delivery, secure payments, and hassle-free returns, making it easy to purchase with confidence from a trusted supplier.
