Buy the Broadcom MegaRAID 9560-16i 16x 12Gb/s SAS
The

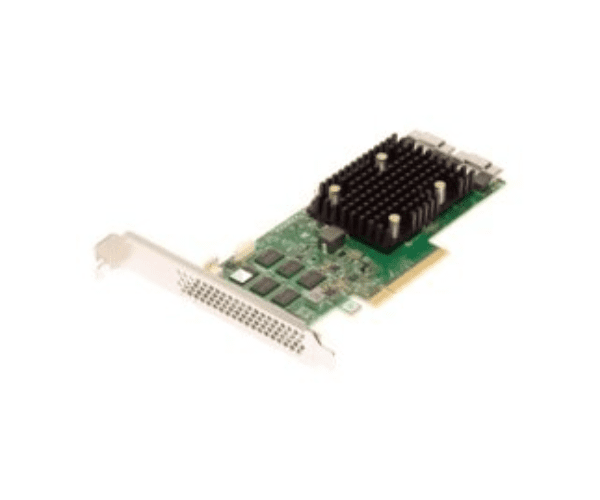

Broadcom MegaRAID 9560-16i 16x 12Gb/s SAS (2x SFF-8654) is a high-performance RAID controller designed to deliver speed, reliability, and security for modern enterprise storage systems. With support for up to 16 internal SAS or SATA drives, it’s ideal for businesses looking to maximize their storage capabilities while ensuring data integrity. Featuring PCIe Gen 4 support, this controller is built to provide optimal performance for demanding workloads.
Key Features:
- 16x 12Gb/s SAS/SATA drive support
- PCIe Gen 4 interface for faster data transfer
- 8GB DDR4 cache for improved performance
- RAID levels 0, 1, 5, 6, 10, 50, and 60 supported
- Secure Boot and hardware RAID for enhanced data security
Detailed Breakdown of Features
The
Broadcom MegaRAID 9560-16i 16x 12Gb/s SAS offers unparalleled storage management with features tailored to both small businesses and large enterprises.
- High-speed Interface: Utilizing PCIe Gen 4, the controller boosts data transfer rates, which makes it perfect for data-intensive applications such as databases and virtualization.
- Advanced RAID Support: With support for a wide range of RAID levels (0, 1, 5, 6, 10, 50, 60), you can choose the configuration that best fits your needs for performance, redundancy, or a balance of both.
- Data Security and Integrity: Secure Boot ensures that only authorized firmware is executed, preventing malicious attacks. The built-in hardware RAID controller also ensures consistent data protection and recovery.
- Caching and Data Offload: Equipped with 8GB of DDR4 onboard cache, the Broadcom MegaRAID 9560-16i optimizes system performance and reduces I/O bottlenecks, providing efficient caching for frequently accessed data.
User Experience:
Users will appreciate the
Broadcom MegaRAID 9560-16i 16x 12 Gb/s SAS for its easy setup and powerful performance. Whether handling large databases, file servers, or high-end computing tasks, this controller offers smooth and fast operation. IT professionals can rest assured knowing their data is safe and their storage systems run optimally, even under heavy loads.
Why Choose the Broadcom MegaRAID 9560-16i 16x 12Gb/s SAS (2x SFF-8654)?
This RAID controller is perfect for those who require top-tier performance and reliable data management. The
Broadcom MegaRAID 9560-16i 16x 12 Gb/s SAS is ideal for data centers, cloud computing, and businesses needing scalable and secure storage solutions. With advanced RAID support and easy scalability, it’s the go-to solution for growing enterprises.
Installation Steps:
- Power down your server and unplug it.
- Insert the Broadcom MegaRAID 9560-16i into an available PCIe slot.
- Connect the SFF-8654 connectors to your SAS or SATA drives.
- Power on the system and install the necessary drivers.
- Access the RAID configuration utility to set up your RAID array.
- Once configured, verify the RAID setup in the operating system.
Uses of the Broadcom MegaRAID 9560-16i 16x 12Gb/s SAS:
- Enterprise Data Centers: Manage large-scale storage arrays with ease.
- Cloud Computing: Provide fast, redundant storage for cloud applications.
- High-Performance Computing: Optimize data throughput for resource-intensive applications.
- Virtualization Environments: Ensure data integrity and speed for virtual machines.
