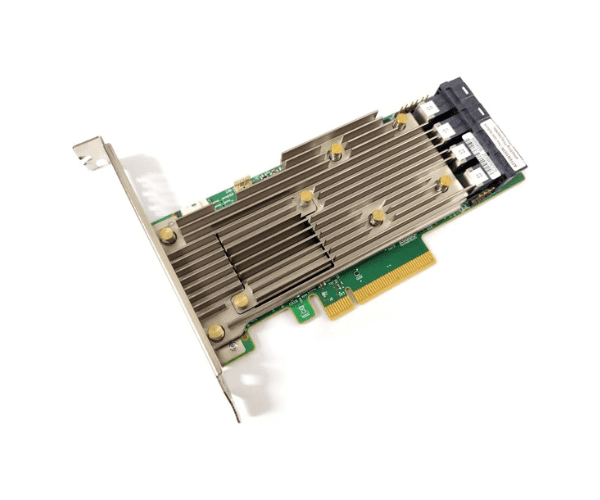

Buy the Broadcom MegaRAID 9460-16i - Storage controller (RAID)
Broadcom MegaRAID 9460-16i is a high-performance storage controller designed to manage up to 16 SAS/SATA drives, making it an excellent choice for enterprise environments requiring speed, data protection, and scalability. It delivers superior RAID management with support for various RAID levels and is built to handle the most demanding storage applications. Whether you need fast access to data or robust redundancy, this controller offers a blend of both.
Key Features:
- 16x 12Gb/s SAS/SATA drive support
- PCIe Gen 3 interface for fast data transfer
- RAID levels 0, 1, 5, 6, 10, 50, 60 supported
- 4GB DDR4 onboard cache for efficient data management
- Secure Boot and hardware RAID for enhanced data protection
Detailed Breakdown of Features:
The
Broadcom MegaRAID 9460-16i provides advanced features tailored for modern storage needs:
- High-Speed PCIe Gen 3 Interface: This storage controller utilizes a PCIe Gen 3 interface, ensuring fast data transfer rates, perfect for applications that demand high throughput and low latency.
- Flexible RAID Support: With support for RAID levels 0, 1, 5, 6, 10, 50, and 60, users can configure their system based on the needs for speed, redundancy, or a balance of both. This flexibility allows businesses to optimize their storage according to application requirements.
- Efficient Caching: The 4GB DDR4 onboard cache ensures that frequently accessed data is stored closer to the processor, improving performance and reducing the load on the drives themselves.
- Secure Boot and Enhanced Data Protection: The controller includes Secure Boot, ensuring that only trusted firmware is loaded during startup, reducing the risk of security vulnerabilities.
User Experience:
The
Broadcom MegaRAID 9460-16i provides a smooth and user-friendly experience for IT professionals and enterprises. Installation is straightforward, and it supports intuitive management tools to simplify RAID setup and monitoring. Its robust data protection features give peace of mind to users, especially those managing critical business data in industries like finance, healthcare, or cloud services.
Why Choose the Broadcom MegaRAID 9460-16i - Storage Controller (RAID)?
The
Broadcom MegaRAID 9460-16i stands out as an ideal solution for organizations that require fast, reliable, and scalable storage solutions. Its flexibility in RAID configurations, combined with high-speed data access and advanced protection mechanisms, make it a perfect choice for businesses that can't compromise on performance or data security. If you need a RAID controller that balances speed and reliability, this is the product to choose.
Installation Step:
- Turn off the server and unplug it from the power source.
- Insert the Broadcom MegaRAID 9460-16i into an available PCIe Gen 3 slot on the motherboard.
- Connect your SAS or SATA drives to the controller using the SFF-8643 connectors.
- Power on the system and install the necessary drivers from the Broadcom website.
- Use the RAID management utility to configure your RAID array (select RAID level, drives, etc.).
- Once configured, verify the setup and begin utilizing the drives.
Uses of the Broadcom MegaRAID 9460-16i - Storage Controller (RAID)
- Enterprise Data Centers: Manage large-scale storage systems with ease.
- Database Management: Provide fast, redundant storage for large databases.
- High-Performance Computing: Handle massive amounts of data efficiently in performance-critical applications.
- Virtualization: Securely store data for virtual machines and other critical service.
