Buy the Broadcom LSI MegaRAID SAS 9361-24I RAID

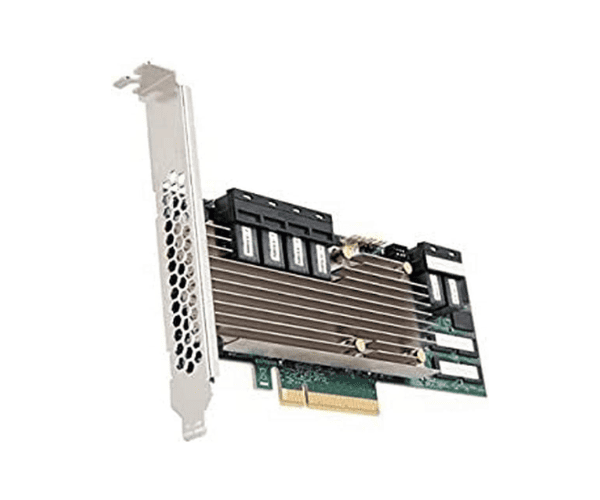

Broadcom LSI MegaRAID SAS 9361-24i is a high-capacity and high-performance RAID controller designed to handle large-scale storage environments. With support for up to 24 internal SAS/SATA drives and advanced RAID configurations, this controller is perfect for enterprises requiring scalable storage solutions. The 12Gb/s SAS interface ensures fast data transfers, making it ideal for data centers, cloud computing, and other high-performance applications.
Key Features:
- 24 internal SAS/SATA ports supporting 12Gb/s SAS and 6Gb/s SATA
- PCIe Gen 3 interface for high-speed data transfers
- Advanced RAID levels 0, 1, 5, 6, 10, 50, and 60 supported
- 2GB onboard DDR3 cache for optimized performance
- Support for over 200 drives via SAS expander, providing massive scalability
Detailed Breakdown of Features
The
Broadcom LSI MegaRAID SAS 9361-24i is designed to meet the most demanding enterprise storage needs, offering a wide range of features:
- 24 Internal Ports: With support for up to 24 internal drives, the Broadcom LSI MegaRAID SAS 9361-24i allows businesses to scale their storage infrastructure easily, offering both SAS and SATA connectivity for greater flexibility.
- PCIe Gen 3 Interface: The controller utilizes a PCIe Gen 3 interface to ensure faster data transfers and minimize latency, which is crucial for high-demand applications such as virtualization, databases, and cloud services.
- Advanced RAID Support: Supporting RAID levels 0, 1, 5, 6, 10, 50, and 60, this controller allows businesses to configure their storage to balance performance, redundancy, and capacity according to their specific needs.
- Onboard Cache: The 2GB DDR3 cache improves read and write performance by caching frequently accessed data, which enhances system responsiveness and reduces drive wear.
- Scalability: With support for SAS expanders, the controller can scale up to 240 drives, making it ideal for large enterprises with growing storage requirements.
User Experience
Users of the
Broadcom LSI MegaRAID SAS 9361-24i will appreciate its ease of use and high-performance capabilities. The controller’s flexibility, scalability, and advanced RAID support make it perfect for IT administrators managing large storage arrays. The performance boost from the 12Gb/s SAS interface and onboard cache ensures that even under heavy loads, the system remains responsive and reliable.
Why Choose the Broadcom LSI MegaRAID SAS 9361-24i RAID?
The
Broadcom LSI MegaRAID SAS 9361-24i is an excellent choice for enterprises that require a high-performance, scalable RAID controller. Its ability to support up to 24 internal drives, advanced RAID configurations, and expansion capabilities make it ideal for data centers, large databases, and virtualized environments. With its combination of speed, flexibility, and reliability, it’s the perfect solution for businesses needing robust data protection and performance.
Installation Steps
- Turn off the system and disconnect the power source.
- Insert the Broadcom LSI MegaRAID SAS 9361-24i into an available PCIe Gen 3 slot on your server’s motherboard.
- Connect the internal drives using the SFF-8643 mini-SAS HD connectors.
- Power up the system and install the necessary drivers from Broadcom’s support page.
- Configure your RAID setup using the MegaRAID management utility, choosing the appropriate RAID level for your storage environment.
- Verify the configuration and begin using the connected drives.
Uses of the Broadcom LSI MegaRAID SAS 9361-24i RAID
- Data Centers: Ideal for managing large-scale, high-performance storage arrays with advanced RAID protection.
- Cloud Storage: Supports scalable and reliable storage for cloud-based services and virtualization.
- Enterprise Storage: Offers scalable storage management for businesses with high data throughput needs.
- Backup and Archiving: Provides secure and fast storage for long-term data retention and backup solutions.
