The

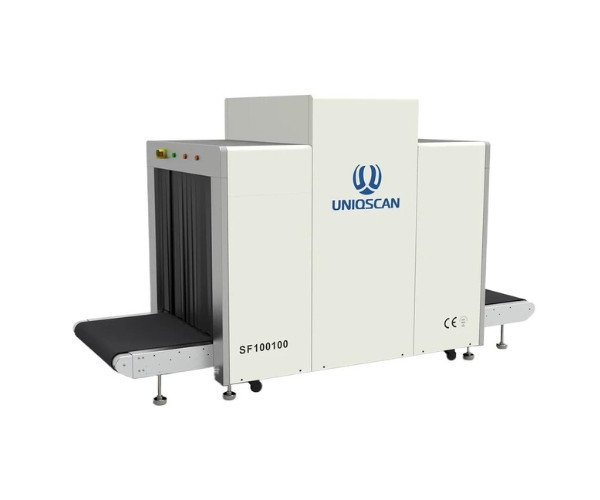

Uniqscan SF100100 X-ray Baggage Scanner offers powerful security screening with state-of-the-art features designed for high-volume environments like airports, train stations, government buildings, and other secure facilities. This advanced scanner boasts dual high-resolution 19-inch LCD monitors for detailed color and black-and-white imaging, providing clear visuals that facilitate precise threat detection.
Utilizing dual-energy technology with an L-shaped array detector, the SF100100 efficiently differentiates between materials, enhancing the detection of hidden objects. This innovative technology improves overall screening accuracy, ensuring comprehensive security in every scenario.
Safety is a top priority for the SF100100, which is equipped with safety interlocks and emergency stop buttons to protect both operators and passengers. With one-key shutdown controls conveniently placed at the console and entry/exit points of the tunnel, the machine can be quickly deactivated in case of emergencies.
Operators benefit from the brightness adjustment function, allowing them to fine-tune image clarity based on lighting conditions. The system also supports image storage of up to 100,000 pictures, ensuring real-time monitoring and customization options.
The SF100100 delivers reliability with a downward X-ray orientation and tube current ranging from 0.4 to 1.2mA, backed by 160KV anode voltage. Its durable build, coupled with a two-year warranty, ensures long-term performance, while CE, ISO, FCC, and RoHS certifications highlight its compliance with international quality and safety standards.
Uniqscan SF100100 X-ray Baggage Scanner Specifications
| Specification |
Details |
| Tunnel Size |
1000 (W) × 800 (H) mm |
| Conveyor Speed |
0.22m/s |
| Conveyor Max Load |
250kg |
| Single Inspection Dosage |
< 1.6μGy |
| Leakage Radiation |
< 0.2μGy/h |
| Wire Resolution |
40 AWG (0.0787mm metal line) |
| Steel Penetration |
36mm |
| Film Safety |
For ISO 1600 |
| X-ray Generator Orientation |
Downward |
| Tube Current |
0.4-1.2MA (adjustable) |
| Anode Voltage |
100-160KV |
| X-ray Divergence Angle |
80° |
| Generator Cooling |
Sealed oil bath with forced air/100% |
| X-ray Sensor |
L-shaped array detector, 24bit |
| Network Interface |
LAN-capable, supports multi-terminal checks |
| Safety Ray |
Automatic control with one-key shutdown feature |
| Eagle Eye Feature |
Expedient magnification for detailed area viewing |
| Self-Diagnosis |
Automatic messaging for prompt maintenance |
Features and Benefits
- Dual-Energy Technology: Provides superior material differentiation and enhances detection of hidden objects.
- High-Resolution Display: Equipped with two 19-inch LCD monitors for clear, detailed viewing.
- Safety and Security: Features safety interlocks, emergency stop buttons, and a one-key shutdown control for operator and passenger protection.
- Brightening and Dimming Function: Allows operators to adjust brightness for optimal viewing in various lighting conditions.
- Large Image Storage: Can store up to 100,000 pictures in real-time, supporting comprehensive monitoring.
- X-ray Efficiency: The 0.6mA tube current and 80KV anode voltage provide reliable and efficient scanning performance.
- Certifications: Backed by CE, ISO, FCC, and RoHS certifications, ensuring compliance with global standards.
Product Applications
- Airports and Train Stations: Perfect for screening larger baggage in high-traffic transportation hubs.
- Government Buildings: Ensures secure screening for sensitive locations with advanced threat detection.
- Public Venues: Ideal for enhancing security at large public events and venues.
Price of Uniqscan SF100100 X-ray Baggage Scanner in Bangladesh
Buy the
Uniqscan SF5030A X-Ray Baggage Scanner for its advanced security features, high-resolution imaging, and efficient threat detection. Designed for airports, offices, and public venues, this scanner ensures the safe and reliable screening of luggage and packages. When you purchase from
Crystal Vision Solutions, you receive genuine Uniqscan products, competitive pricing, and outstanding customer support. With fast delivery and expert guidance,
Crystal Vision Solutions guarantees a hassle-free buying experience for all your security needs.
