The

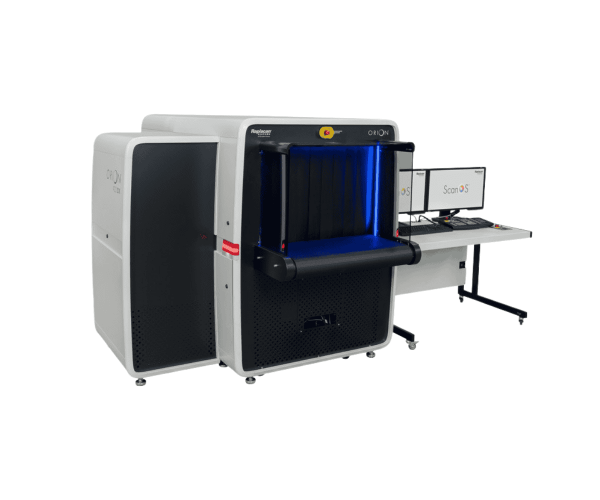

Rapiscan Systems Orion® 922DX X-Ray Baggage Scanner is a high-performance X-ray baggage scanner designed to meet evolving security needs with cutting-edge imaging and detection technologies. Equipped with Dual Mode Auto Zeff, the 922DX helps operators accurately identify organic materials by either highlighting areas. This feature ensures precise identification of threats such as explosives and narcotics, while the advanced ScanAI software enhances the detection of prohibited items like weapons.
Designed with best-in-class imaging capabilities, the system provides high-resolution images using a central under-belt generator and U-shaped detector array. Thus, ensuring clear, detailed scans for quick threat identification. With configurable color palettes like Classic 4-color, Spectrum-4, and Spectrum-7, the 922DX improves the operator’s ability to distinguish between different materials, thus enhancing threat visualization.
Geometric Distortion Correction further ensures accuracy by maintaining the correct aspect ratio for scanned objects, no matter their position on the belt, delivering the clearest and most accurate image possible.
Rapiscan Systems Orion® 922DX X-Ray Baggage Scanner Specifications
| Specification |
Details |
| Tunnel Size |
770 mm x 570 mm (30.3 in x 22.4 in) |
| Length |
2,450 mm (96.5 in) |
| Width |
1,616 mm (63.6 in) |
| Height |
1,566 mm (61.7 in) |
| Net Weight |
1,250 kg (2,755 lbs) |
| Conveyor Speed |
0.2m/s, 0.35m/s, 0.5m/s |
| Imaging Technology |
Spectrum-4, Spectrum-7, Classic 4-color |
| X-ray Tube Voltage |
160 kV |
| Resolution |
High resolution with geometric correction |
| Operating Temperature |
0°C to +40°C |
| Power Supply |
220-240 VAC, 50/60 Hz |
Key Features
- Dual Mode Auto Zeff: Accurate identification of organic materials with range or interactive modes.
- High-Speed Conveyor: Adjustable conveyor speeds for efficient baggage handling.
- ScanAI Software: AI-driven detection of weapons, explosives, and narcotics in real time.
- High-Resolution Imaging: Central under-belt generator and U-shaped detector array provide detailed images.
- Geometric Distortion Correction: Ensures objects are scanned with accurate aspect ratios.
- Configurable Color Palettes: Allows operators to switch between Classic 4-color, Spectrum-4, and Spectrum-7 for enhanced threat visualization.
Applications
- Airports: Provides efficient and accurate scanning for luggage and cargo.
- Train Stations: Enhances passenger safety by identifying potential threats quickly.
- Government Buildings: Delivers advanced detection capabilities for sensitive facilities.
- Public Venues: Ideal for screening attendees at large public events or stadiums.
- Customs & Border Control: Ensures comprehensive scanning for contraband at border crossings.
Price of Rapiscan Systems Orion® 922DX X-Ray Baggage Scanner in Bangladesh (BD)
The
X-Ray Baggage Scanner ensures thorough and efficient security screening. Therefore, making it essential for airports, government buildings, and high-security environments. Designed for precision, it quickly detects hidden threats while maintaining fast, reliable operation.
When you buy an X-Ray Baggage Scanner from
Crystal Vision Solutions, you receive authentic, high-quality products, competitive pricing, and expert customer support. Crystal Vision Solutions provides fast shipping and tailored advice, thus ensuring you find the best security solution for your needs.
