The

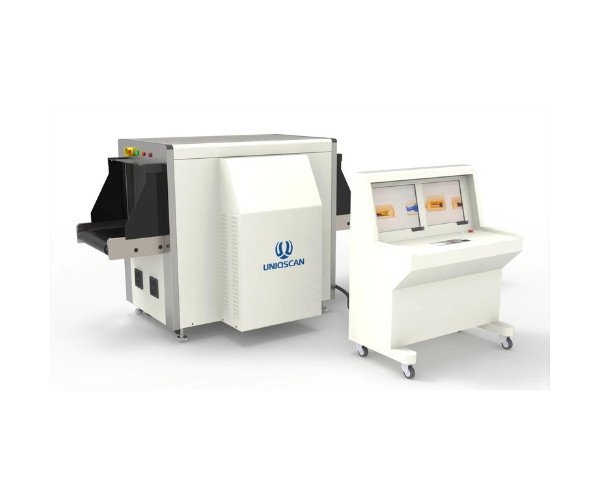

Uniqscan SF6550D X-ray Baggage Scanner is an advanced security screening solution, designed to meet the rigorous demands of high-traffic environments such as airports, train stations, and government buildings. Featuring dual-view capability, the SF6550D utilizes two X-ray generators for enhanced detection efficiency, thus offering comprehensive visibility of baggage contents from multiple angles. The spacious 650mm (W) x 500mm (H) tunnel can accommodate various baggage sizes, ensuring efficient screening operations without compromising security.
With dual-energy technology and L-shaped array detectors, the SF6550D distinguishes between organic and inorganic objects with precise color-coding for easy operator analysis. Its high-resolution 19-inch LCD display provides real-time, detailed images that allow for quick identification of potential threats. This scanner also includes advanced features such as drug and explosive powder detection, multi-energy scanning, and an image brightening/dimming function to enhance visibility in different lighting conditions.
Uniqscan SF6550D X-ray Baggage Scanner Specifications
| Specification |
Details |
| Tunnel Size |
650 (W) × 500 (H) mm |
| Conveyor Speed |
0.22m/s |
| Conveyor Max Load |
200kg |
| Single Inspection Dosage |
< 1.2μGy |
| Leakage Radiation |
<0.1μGy/h |
| Wire Resolution |
40AWG |
| Steel Penetration |
36mm |
| Film Safety |
ISO 1600 |
| X-ray Generator Orientation |
Upward and Sideward |
| Tube Current |
0.7~1.2MA (adjustable) |
| Anode Voltage |
140-160KV |
| X-ray Divergence Angle |
80° |
| Generator Cooling |
Sealed oil bath with forced air |
| X-ray Sensor |
L-shaped Array*2 |
| Network Interface |
LAN capable, multi-terminal baggage check support |
| Safety Ray Control |
Automatic control, one-key shutdown |
| Special Features |
Eagle Eye magnification, self-diagnosis function for maintenance |
Features and Benefits
- Dual-View Capability: Simultaneously captures images from two angles for comprehensive baggage analysis.
- Advanced X-ray Imaging: High-resolution images with 24-bit real colors for accurate object identification.
- Color-Coded Material Identification: Organic objects in orange, inorganic in blue, and mixtures in green for quick analysis.
- Drug and Explosive Detection: Additional features to enhance security and detect potential hazards.
- High-Speed Scanning: Operates at 0.22m/s for efficient baggage handling in high-volume areas.
- User-Friendly Interface: Intuitive controls make it easy for operators to navigate and analyze X-ray images.
- Safety Features: Equipped with automatic radiation control, one-key shutdown, and self-diagnosis for secure and error-free operation.
Product Applications
- Airports and Stations: Ensure rapid and reliable baggage screening to enhance security in high-traffic environments.
- Government Buildings: Monitor and detect threats in sensitive locations with precision and accuracy.
- Corporate Offices: Maintain security with advanced baggage screening for visitors and employees.
- Event Venues: Utilize dual-view scanning to provide thorough security screening for large crowds at public events.
Price of Uniqscan SF6550D X-ray Baggage Scanner in Bangladesh
Buy the
Uniqscan SF5030A X-Ray Baggage Scanner for its advanced security features, high-resolution imaging, and efficient threat detection. Designed for airports, offices, and public venues, this scanner ensures the safe and reliable screening of luggage and packages. When you purchase from
Crystal Vision Solutions, you receive genuine Uniqscan products, competitive pricing, and outstanding customer support. With fast delivery and expert guidance,
Crystal Vision Solutions guarantees a hassle-free buying experience for all your security needs.
