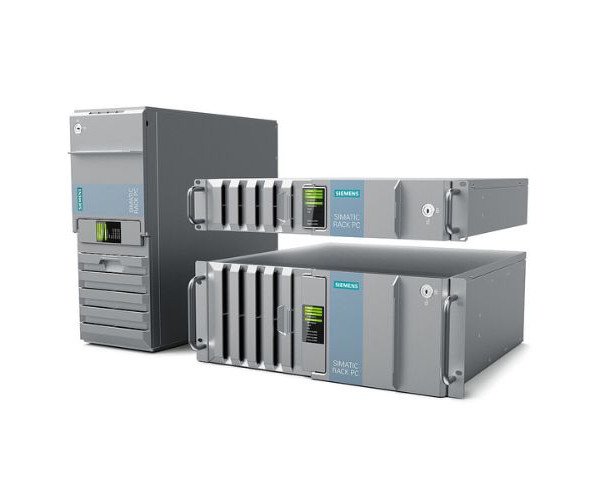

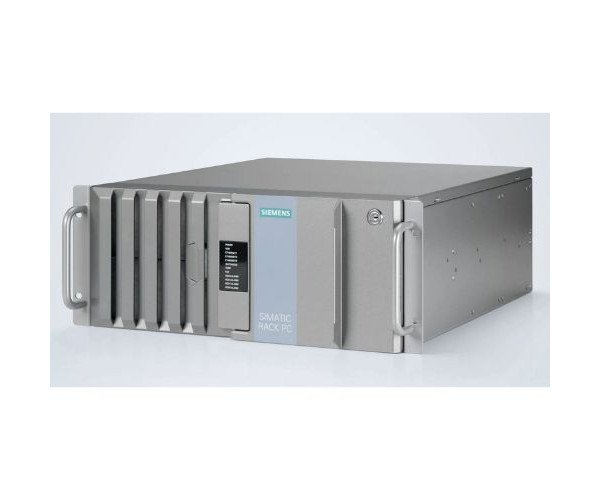

The
SIMATIC IPC847E Rack PC is a powerful and rugged industrial computer developed by Siemens to meet the rigorous demands of today's automation environments. Engineered for durability and high performance, the SIMATIC IPC847E is the ideal solution for industries requiring reliable and continuous operation. Whether your application involves complex data processing, machine control, or extensive monitoring, this Rack PC offers the scalability and flexibility necessary to handle the most challenging industrial tasks.
SIMATIC IPC847E Rack PC Specifications
| Category |
Specification |
| Product Type Designation |
IPC847E |
| Installation Type/Mounting |
Horizontal and vertical installation; telescopic rails; 19" mounting bracket removable externally; tower kit optional |
| Design |
Rack PC, 19", 4U |
| Supply Voltage |
100/240 V AC (autorange), 50/60 Hz; optional redundant 100/240 V AC |
| Line Frequency |
50 Hz, 60 Hz |
| Mains Buffering |
20 ms |
| Processor Types |
Intel Xeon E-2278GE (8C/16T, 3.3 (4.7) GHz, 16 MB Cache, Turbo Boost 2.0, VT-x/-d-Technology, iAMT); Intel Xeon E-2176G (6C/12T, 3.7 (4.7) GHz, 12 MB Cache, Turbo Boost 2.0, VT-x/-d-Technology, iAMT); Intel Core i7-8700 (6C/12T, 3.2 (4.6) GHz, 12 MB Cache, Turbo Boost 2.0, VT-x/-d-Technology, iAMT); Intel Core i5-8500 (6C/6T, 3.0 (4.1) GHz, 9 MB Cache, Turbo Boost 2.0, VT-x/-d-Technology, iAMT); Intel Core i3-8100 (4C/4T, 3.6 GHz, 6 MB Cache, VT-x/-d-Technology) |
| Chipset |
Intel C246 |
| Graphics Controller |
Onboard Intel UHD graphics P630/630; NVIDIA Quadro P400 PCIe (x16) triple head (optional) |
| Hard Disk |
1x 1 TB 3.5" SATA HDD, 2x 1 TB 3.5" SATA HDD, RAID1 configurations, optional RAID5 with hot spare |
| SSD |
1x 480 GB 2.5" SATA SSD, 1x 960 GB 2.5" SATA SSD, RAID1 configurations, 1x 512 GB M.2 NVMe SSD, 1x 1,024 GB M.2 NVMe SSD |
| Slot for Drives |
Internally in vibration/shock-absorbing drive cage Type B or removable trays (hot swap in RAID configurations) |
| Main Memory |
4 GB to 128 GB DDR4 2666 SDRAM DIMM, ECC optional |
| Capacity of Main Memory, Max |
128 GB |
| Hardware Configuration |
9 slots (7x PCI, 2x PCI Express (x16)); 11 slots (various configurations) |
| Interfaces/Buses |
1x COM1, 1x COM2 (optional), 2x DisplayPort, 1x DVI-D, audio (microphone in, line in, line out), 9x USB, 3x Gigabit Ethernet |
| PROFIBUS/MPI |
Can be implemented with plug-in card |
| USB Ports |
4x USB 3.1 Gen. 2 Type A, 2x USB 3.1 Gen. 2 Type C (rear); 1x USB 3.1 Gen. 2 Type A internally, 2x USB 3.1 Gen. 1 Type A (front) |
| Connection for Keyboard/Mouse |
USB |
| Serial Interface |
COM1: 1x RS 232, COM2 (optional): 1x RS 232 |
| Multimedia |
Audio In/Out, Microphone In |
| Video Interfaces |
2x DisplayPort, 1x DVI-D onboard; optional VGA via DP-VGA adapter cable, graphics card PCIe (x16), Triple Head (3x mini DisplayPort) |
| Industrial Ethernet |
3x Gigabit Ethernet (IE/PN), RJ45 |
| Monitoring Functions |
Temperature monitoring, Watchdog, Status LEDs (POWER, HDD, ETHERNET 1, ETHERNET 2, ETHERNET 3, WATCHDOG, TEMP, FAN, HDD3 ALARM, HDD2 ALARM, HDD1 ALARM, HDD0 ALARM), Fan, Optional network monitoring |
| EMC Interference Immunity |
±6 kV contact discharge, ±8 kV air discharge, 10 V/m for 80 ... 2,700 MHz, 80% AM, ±2 kV surge on supply cables, ±1 kV surge on signal cables < 30 m, ±2 kV surge asymmetric, ±1 kV surge symmetric, 100 A/m at 50 Hz magnetic fields |
| Degree and Class of Protection |
IP41 (front), IP20 (rear) |
| Standards, Approvals, Certificates |
CE, CSA, UL, cULus, RCM, KC, EAC |
| Dust Protection |
G2 EN 779, 99% of particles > 0.5 mm filtered |
| Ambient Conditions |
Operating temperature: 0 °C to 50 °C; Storage/transport: -20 °C to 60 °C; Relative humidity: 5% to 85% at 30 °C, 5% to 95% at 25/55 °C |
| Vibrations |
Tested according to IEC 60068-2-6: 10 cycles, 10 Hz to 58 Hz: 0.0375 mm, 58 Hz to 500 Hz: 4.9 m/s² (0.5 g) |
| Shock Testing |
Tested according to IEC 60068-2-27, IEC 60068-2-29: 50 m/s² (5 g), 30 ms, 100 shocks per axis |
| Operating Systems |
Pre-installed: Windows 10 Enterprise 2016 LTSB, Windows 10 IoT Enterprise 2019 LTSC, Windows Server 2016/2019 Standard Edition; Without OS: Yes |
| Software |
Optional SIMATIC WinCC |
| Dimensions |
Width: 430 mm, Height: 177 mm (4U), Depth: 444 mm |
Key Features of the SIMATIC IPC847E Rack PC
Advanced Processing Capabilities
Powered by the latest Intel® Core™ and Xeon® processors, the SIMATIC IPC847E delivers exceptional processing power for real-time data processing, control tasks, and other demanding industrial applications.
Rugged Industrial Design
The SIMATIC IPC847E is built to withstand the harshest industrial environments. Its robust construction allows it to operate reliably in extreme temperatures, high vibration, and dusty conditions.
Extensive Connectivity and Expansion
With numerous Ethernet ports, USB interfaces, and PCI/PCIe expansion slots, the SIMATIC IPC847E offers extensive connectivity options, enabling seamless integration with a wide range of industrial devices and systems.
Customizable Configuration
You can configure the SIMATIC IPC847E with various memory, storage, and interface options, customizing it to suit specific industrial requirements, whether for simple monitoring tasks or complex automation processes.
Energy-Efficient Operation
Designed with energy efficiency in mind, the SIMATIC IPC847E helps reduce operational costs while supporting environmentally sustainable industrial practices.
Long-Term Availability and Siemens Support
Siemens ensures the long-term availability of the SIMATIC IPC847E, providing ongoing access to spare parts, firmware updates, and expert technical support, ensuring that your investment remains secure over time.
Why Choose the SIMATIC IPC847E Rack PC?
The
SIMATIC IPC847E Rack PC stands out as a top choice for industrial professionals due to its superior performance, extensive connectivity options, and unmatched durability. Here’s why this Rack PC is a preferred choice for industrial automation:
- Exceptional Processing Power: The SIMATIC IPC847E leverages the latest Intel® processors to handle complex automation processes efficiently.
- Designed for Harsh Environments: The robust design of the SIMATIC IPC847E withstands extreme temperatures, vibrations, and dust, ensuring reliable performance in tough industrial conditions.
- Highly Scalable and Flexible: The SIMATIC IPC847E features multiple expansion slots and a variety of interface options, allowing you to tailor it to meet the specific needs of your automation systems.
- Long-Term Availability and Support: Siemens guarantees long-term availability and comprehensive support services for the SIMATIC IPC847E, protecting your investment over time.
Price of SIMATIC IPC847E Rack PC in Bangladesh ?
When it comes to acquiring advanced computing solutions, choosing the right supplier is just as important as selecting the right equipment. As an authorized dealer of
Siemens products, Crystal Vision Solutions ensures that you receive only
genuine, high-quality industrial computing devices, directly sourced from the manufacturer. This guarantees optimal performance, longevity, and the peace of mind that comes with knowing your equipment is authentic.
With
years of industry experience, Crystal Vision Solutions possesses deep expertise in industrial computing. Our team of professionals is equipped to provide you with
tailored advice and
technical support. Whether you’re upgrading or building a new infrastructure, their guidance can help you achieve the best results.
Moreover, Crystal Vision Solutions is known for offering
competitive pricing. They understand the importance of cost-effectiveness in business operations. This is why they strive to provide value through
affordable pricing, discounts, and bundled deals that enhance your purchasing power.
Customer satisfaction is a top priority at Crystal Vision Solutions. Our commitment to delivering
excellent after-sales service and
comprehensive warranty coverage means that you can rely on us long after your purchase is complete. Should you encounter any issues, our responsive support team is there to assist, ensuring your network runs smoothly.
For businesses seeking to integrate cutting-edge Siemens technology into their operations,
Crystal Vision Solutions offers not just products, but a
partnership built on trust, expertise, and a commitment to your success.
