The

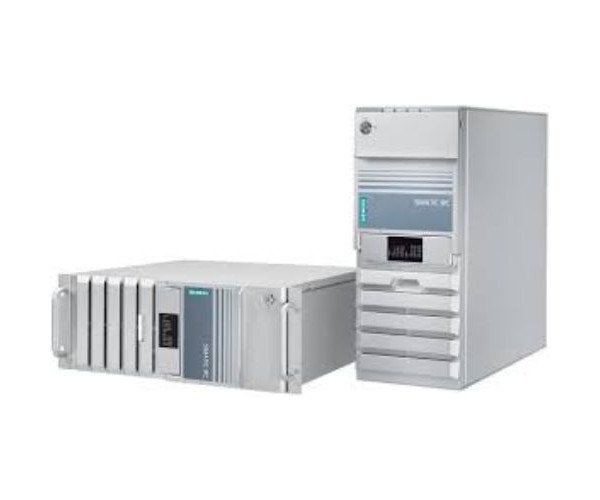

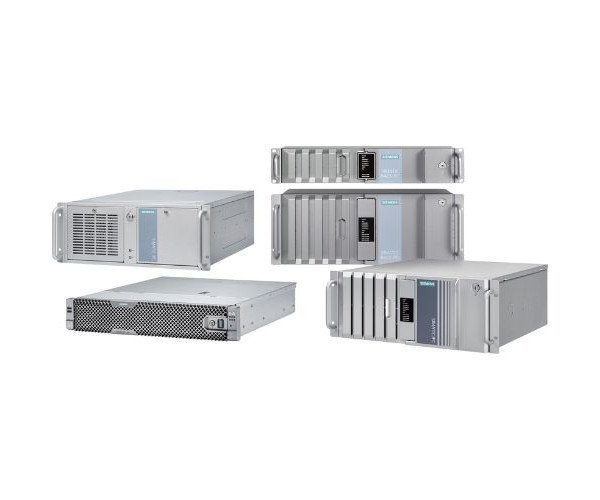

SIMATIC IPC RW-545A Rack PC is a cutting-edge industrial computer designed to meet the rigorous demands of modern automation environments. Built by Siemens, this Rack PC combines robust hardware with advanced features, making it an ideal choice for industries that require high performance, reliability, and scalability. Whether you’re working in manufacturing, energy, or transportation, the SIMATIC IPC RW-545A ensures seamless integration with your automation systems.
Specifications of SIMATIC IPC RW-545A Rack PC
| Parameter |
Specification |
| Product Type Designation |
SIMATIC IPC RW-545A |
| Installation Type/Mounting |
- For horizontal and vertical installation
- Prepared for telescopic rails
- 19" mounting bracket can be removed externally
- Tower kit (optional) |
| Design |
Rack PC, 19", 4U |
| Supply Voltage |
100/240 V AC (autorange) 50 / 60 Hz; optional redundant 100/240 V AC |
| Line Frequency |
- Rated value 50 Hz: Yes
- Rated value 60 Hz: Yes |
| Mains Buffering |
Mains/voltage failure stored energy time: 20 ms |
| Processor Type |
- Core i9-12900E 16C(8P+8E)/24T, 2.3 (5.0) GHz, 30 MB cache
- Core i7-12700E 12C(8P+4E)/20T, 2.1 (4.8) GHz, 25 MB cache
- Core i5-12500E 6C(4P)/12T, 2.9 (4.5) GHz, 18 MB cache
- Core i3-12100E 4C(4P)/8T, 3.2 (4.2) GHz, 12 MB cache |
| Chipset |
Intel R680E |
| Graphics Controller |
Intel® UHD Graphics 730 / 770 |
| Graphics Card |
Yes; NVIDIA T400, RTX A2000, RTX A4000, RTX A5000 |
| Hard Disk |
- 1x 2 TB HDD 3.5" SATA
- 2x 2 TB HDD 3.5" SATA
- RAID1 2x 2 TB HDD [Enterprise] 3.5" SATA
- RAID1 2x 4 TB HDD [Enterprise] 3.5" SATA |
| SSD |
- 480 GB 2.5" SATA SSD
- 1x 960 GB 2.5" SATA SSD
- 2x 960 GB 2.5" SATA SSD
- RAID1 2x 480 GB 2.5" SATA SSD
- RAID1 2x 960 GB 2.5" SATA SSD
- 1x 512 GB M.2 NVMe SSD
- 1x 1 024 GB M.2 NVMe SSD
- 2x 1 024 GB M.2 NVMe SSD |
| Slot for Drives |
Mounting internally in vibration/shock-absorbing drive cage Type B or mounting on the front in removable trays (hot swap in RAID configurations) in drive cage Type A; mounting internally on the fixed drive cage optional |
| Main Memory |
8 GB to 128 GB DDR5 4800 SDRAM DIMM |
| Capacity of Main Memory, Max. |
128 GB |
| Hardware Configuration - Slots |
- Free Slots: 7 free slots for expansions (all long)
- 2x PCIe x16 (1 x16 or 2 x8 lanes) Gen 4
- 1x PCIe x8 (4 lanes) Gen 3
- 1x PCIe x4 (4 lanes) Gen 3
- 1x PCIe x4 (4 lanes) Gen 4
- 1x PCIe x4 (4 lanes) Gen 4
- 1x PCI
- Number of PCI Slots: 1
- Number of PCIe Slots: 6 |
| Interfaces/Bus Type |
- 2x Gigabit Ethernet (IE/PN), RJ45, teaming-capable
- 1x 2.5 Gigabit Ethernet (IE/PN), RJ45, teaming-capable
- USB 3.2 Gen 2: 4x Type A
- USB 3.2 Gen 2x2: 2x Type C (rear)
- USB 3.1 Gen 1: 2x (front)
- USB 2.0: 2x internal (e.g., for software dongle with option interlock)
- 3x DisplayPort V1.4a
- 1x DVI-D
- 1x COM1 and 1x COM2 (optional)
- Audio: Line In, Line Out, Microphone |
| USB Port |
- USB 3.2 Gen 2: 4x Type A
- USB 3.2 Gen 2x2: 2x Type C (rear)
- USB 3.1 Gen 2: 2x Type A internal (e.g., for software dongle with optional interlock)
- USB 3.1 Gen 1: 2x Type A (front, usable with door closed) |
| Connection for Keyboard/Mouse |
USB |
| Serial Interface |
- COM1 (optional): 1x RS232 or RS485
- COM2 (optional): 1x RS232 |
| Multimedia |
- Audio In/Out: Yes
- Microphone In: Yes |
| Video Interfaces |
- 3x DisplayPort
- 1x DVI-D |
| Industrial Ethernet |
- 3x Ethernet (RJ45)
- 100 Mbps: Yes
- 1000 Mbps: Yes |
| Integrated Functions - Monitoring |
- Temperature Monitoring: Yes
- Watchdog: Yes
- Status LEDs: POWER, HDD, ETHERNET 1, ETHERNET 2, ETHERNET 3, WATCHDOG, TEMP, FAN, HDD3 ALARM, HDD2 ALARM, HDD1 ALARM, HDD0 ALARM
- Fan: Yes |
| EMC - Interference Immunity Against Discharge of Static Electricity |
- ±4 kV contact discharge according to IEC 61000-4-2
- ±8 kV air discharge according to IEC 61000-4-2 |
| EMC - Interference Immunity Against High-Frequency Electromagnetic Fields |
- 10 V/m for 80 ... 2,700 MHz, 80% AM according to IEC 61000-4-3
- 3 V/m for 2.7 to 6 GHz, 80% AM according to IEC 61000-4-3
- 10 V for 10 kHz to 80 MHz, 80% AM according to IEC 61000-4-6 |
| EMC - Interference Immunity to Cable-Borne Interference |
- Supply Cables: ±2 kV (IEC 61000-4-4, Burst); ±1 kV (IEC 61000-4-5, Surge Symmetric); ±2 kV (IEC 61000-4-5, Surge Asymmetric)
- Signal Cables >30m: ±2 kV (IEC 61000-4-5, Surge)
- Signal Cables <30m: ±1 kV (IEC 61000-4-4, Burst) |
| EMC - Interference Immunity Against Voltage Surge |
- Asymmetric Interference: ±2 kV (IEC 61000-4-5, Surge Asymmetric)
- Symmetric Interference: ±1 kV (IEC 61000-4-5, Surge Symmetric) |
| EMC - Interference Immunity to Magnetic Fields |
30 A/m at 50 Hz according to IEC 61000-4-8 |
| EMC - Emission of Conducted and Non-Conducted Interference |
EN 61000-6-3; EN 61000-6-4, CISPR 32, EN 55032 Class B; FCC Class A; KS C 9832; EN 61000-3-2 Class D; EN 61000-3-3 |
| Compliance with Line Harmonic Distortion Limits |
Yes; EN 61000-3-2 Class D; EN 61000-3-3 |
| Degree and Class of Protection |
- IP (Front): IP30
- IP (Rear): IP20 |
| Standards, Approvals, Certificates |
- CE Mark: Yes
- CSA Approval: Yes; CAN/CSA-C22.2 No. 61010-2-201 Second Edition
- UL Approval: UL 61010-2-201 Second Edition, File E85972
- cULus: Yes; UL 61010-2-201 Second Edition; CAN/CSA-C22.2 No. 61010-2-201 Second Edition
- RCM (formerly C-TICK): Yes
- KC Approval: Yes
- EAC (formerly Gost-R): Yes
- FCC: Yes
- EMC: EN 61000-6-3; EN 61000-6-4, CISPR 32, EN 55032 Class B; FCC Class A; KS C 9832; EN 61000-3-2 Class D; EN 61000-3-3
- Dust Protection: With front door closed: G2 EN 779, 99% of particles > 0.5 mm are filtered |
| Ambient Conditions - Operating Temperature |
- Minimum: 0 °C (Max. 10 °C/h, no condensation)
- Maximum: 40 °C |
| Ambient Conditions - Storage/Transportation Temperature |
- Minimum: -20 °C
- Maximum: 60 °C |
| Relative Humidity |
Tested according to IEC 60068-2-78, IEC 60068-2-30:
- Operation: 0 °C to 31 °C: 5-85%; decreasing linearly to 5-50% at 40 °C (no condensation)
- Storage/Transportation: 5% to 95% at 25 °C to 55 °C (gradient: ≤ 20 K/h; no condensation) |
| Vibrations |
Tested according to IEC 60068-2-6, 10 cycles:
- 20 to 58 Hz: 0.015 mm
- 58 to 200 Hz: 2 m/s² (0.2 g) |
| Shock Testing |
Tested according to IEC 60068-2-27; half-sine:
- 9.8 m/s² (1 g), 20 ms, 100 shocks per axis |
| Operating Systems |
- Pre-installed: Windows 10 IoT Enterprise 2021 LTSC
- Additional Info: Multi-Language User Interface (MUI) with 5 languages (English, German, French, Spanish, Italian)
- Without Operating System: Yes |
| Software |
Optional package with SIMATIC WinCC |
| Dimensions |
- Width: 430 mm
- Height: 177 mm (4U)
- Depth: 446 mm |
Key Features of the SIMATIC IPC RW-545A Rack PC
Advanced Processing Power
The SIMATIC IPC RW-545A is powered by Intel® processors that deliver fast processing speeds and efficient multitasking capabilities, making it suitable for complex industrial processes.
Robust Design for Industrial Use
Built to withstand extreme temperatures, vibrations, and dust, this Rack PC is perfect for deployment in challenging industrial environments.
Extensive Connectivity
Featuring multiple Ethernet ports, USB interfaces, and expansion slots, the SIMATIC IPC RW-545A offers versatile connectivity options to integrate with a wide range of industrial devices and networks.
Customizable Configuration
Whether you need additional storage, memory, or specific interface cards, the SIMATIC IPC RW-545A can be customized to match your specific industrial application requirements.
Long-Term Availability and Support
Siemens offers long-term availability of the SIMATIC IPC RW-545A, along with comprehensive support services, ensuring that your investment is secure for the long haul.
Energy-Efficient Operation
With its optimized power consumption, the SIMATIC IPC RW-545A not only reduces energy costs but also supports sustainable industrial practices.
Applications of the SIMATIC IPC RW-545A Rack PC
The
SIMATIC IPC RW-545A is designed to meet the needs of various industrial sectors:
- Manufacturing: Ideal for machine control, data acquisition, and monitoring systems.
- Energy: Suitable for power generation and distribution control systems.
- Transportation: Perfect for traffic management, signaling, and control systems.
- Process Industries: Supports complex processes in chemical, pharmaceutical, and food industries.
Price of SIMATIC IPC RW-545A Rack PC in Bangladesh ?
When it comes to acquiring advanced computing solutions, choosing the right supplier is just as important as selecting the right equipment. As an authorized dealer of
Siemens products, Crystal Vision Solutions ensures that you receive only
genuine, high-quality industrial computing devices, directly sourced from the manufacturer. This guarantees optimal performance, longevity, and the peace of mind that comes with knowing your equipment is authentic.
With
years of industry experience, Crystal Vision Solutions possesses deep expertise in industrial computing. Our team of professionals is equipped to provide you with
tailored advice and
technical support. Whether you’re upgrading or building a new infrastructure, their guidance can help you achieve the best results.
Moreover, Crystal Vision Solutions is known for offering
competitive pricing. They understand the importance of cost-effectiveness in business operations, which is why they strive to provide value through
affordable pricing, discounts, and bundled deals that enhance your purchasing power.
Customer satisfaction is a top priority at Crystal Vision Solutions. Our commitment to delivering
excellent after-sales service and
comprehensive warranty coverage means that you can rely on us long after your purchase is complete. Should you encounter any issues, our responsive support team is there to assist, ensuring your network runs smoothly.
For businesses seeking to integrate cutting-edge Siemens technology into their operations,
Crystal Vision Solutions offers not just products, but a
partnership built on trust, expertise, and a commitment to your success.
