The

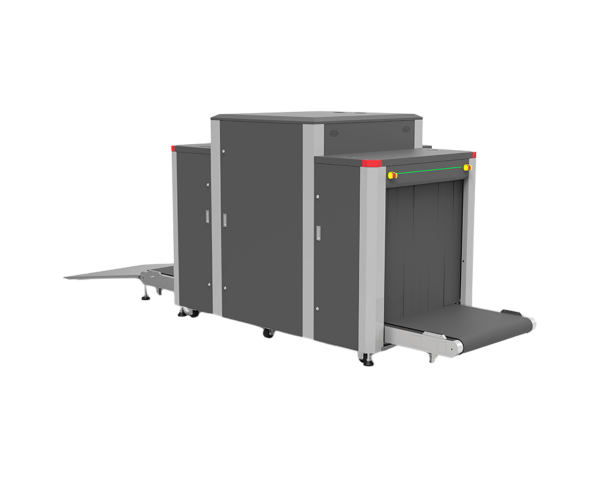

Zorpro HP-SE100100D X-Ray Baggage Scanner is a high-performance, dual-view scanner designed to meet the most demanding security needs at checkpoints like airports, railway stations, border crossings, and other high-risk locations. With
dual X-ray generators, the HP-SE100100D can scan and image objects from both horizontal and vertical angles simultaneously, ensuring no threats are missed due to overlapping or occlusion. This dual-view system significantly enhances the accuracy and efficiency of the screening process, making it a trusted solution for critical infrastructure.
This system also features advanced
switchable 4/7-color imaging technology, allowing operators to view objects in up to 7 colors, each corresponding to a specific range of atomic numbers. This feature enhances material identification, enabling operators to easily distinguish between metallic and organic substances. With the
Zeff-scan function, the HP-SE100100D can highlight potential threats such as explosives and narcotics in real-time during the scanning process, improving detection capabilities.
Zorpro HP-SE100100D X-Ray Baggage Scanner Specifications
| Feature |
Specification |
| Tunnel Size |
1001 mm (W) x 1001 mm (H) |
| Dimensions |
3036 mm (L) x 1420 mm (W) x 2015 mm (H) |
| Conveyor Max Load |
250 kg |
| Belt Speed |
0.23 m/s (Bidirectional) |
| X-Ray Generator Voltage |
140kV x2 |
| Wire Detectability |
40 AWG |
| Spatial Resolution |
1.0 mm (Horizontal & Vertical) |
| Steel Penetration |
36 mm (typical) |
| Tube Current |
0.7 mA |
| Cooling System |
Sealed Oil Bath with Forced Air |
| Duty Cycle |
100% (No Warm-Up Required) |
| Operating Temperature |
0°C – 40°C (32°F – 104°F) |
| Storage Temperature |
-20°C – 60°C (-4°F – 140°F) |
| Humidity |
Up to 95% non-condensing |
| Power Requirements |
220VAC ±10%, 50/60Hz, 10A Max |
Key Features
- Dual-View Imaging: Scans objects from both horizontal and vertical angles to prevent missed threats.
- 4/7-Color Imaging Technology: Allows operators to see objects in 7 different colors based on their atomic composition.
- Zeff-Scan Function: Highlights potential threats like explosives and narcotics in real-time for faster threat identification.
- Dual-Energy Technology: Differentiates between metallic and organic materials, enhancing detection accuracy.
- Customizable Viewing Modes: Supports split-screen and full-screen options for optimal operator viewing.
- No Warm-Up Time Required: Operates continuously without the need for warm-up, ensuring immediate functionality.
Applications
- Airports: Enhances luggage screening to ensure passenger safety.
- Government Buildings: Prevents unauthorized items from entering sensitive locations.
- Border Crossings: Identifies hidden weapons, explosives, and contraband.
- Hotels and Malls: Adds an extra layer of security by screening baggage and parcels.
- Military Installations: Protects high-risk areas from potential threats.
Price of Zorpro HP-SE100100D X-Ray Baggage Scanner in Bangladesh (BD)
The price of
Zorpro X-Ray Baggage Scanner varies from time to time depending on the market. The
X-Ray Baggage Scanner ensures thorough and efficient security screening, making it essential for airports, government buildings, and high-security environments. Designed for precision, it quickly detects hidden threats while maintaining fast, reliable operation.
When you buy an X-Ray Baggage Scanner from
Crystal Vision Solutions, you receive authentic, high-quality products, competitive pricing, and expert customer support. Crystal Vision Solutions provides fast shipping and tailored advice, thus ensuring you find the best security solution for your needs.
