The

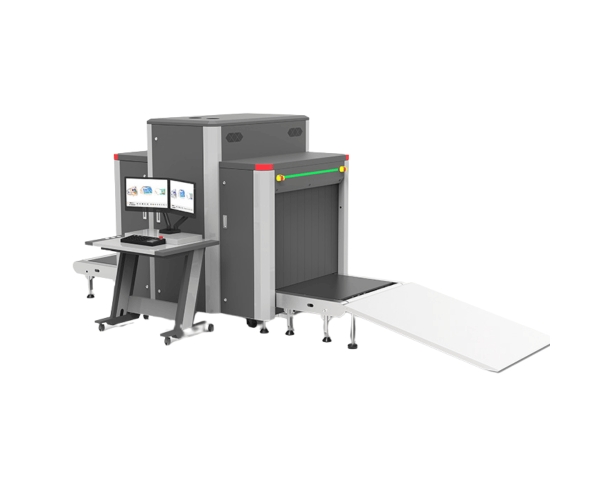

Zorpro HP-SE100100S X-Ray Baggage Scanner is a cutting-edge security solution designed to address the most challenging threat inspection needs across a variety of high-security environments. Equipped with
innovative 3D Perspective Technology and a
7-color imaging system, this scanner enables screeners to see threats from a holistic view, making it highly effective for identifying hidden or dangerous objects. Its versatile detection tools include
Organic Stripping, Mixture Stripping, and Inorganic Stripping, providing enhanced material discrimination for better accuracy during inspections.
This powerful scanner also features the
Zeff 7.8.9 scan function, which automatically highlights potential threats such as explosives and narcotics in real-time. It supports dual-energy technology, which differentiates between metallic and organic materials, allowing for clearer identification of items concealed in bags.
Zorpro HP-SE100100S X-Ray Baggage Scanner Specifications
| Feature |
Specification |
| Tunnel Size |
1001 mm (W) x 1001 mm (H) |
| Dimensions |
3036 mm (L) x 1420 mm (W) x 2015 mm (H) |
| Conveyor Max Load |
250 kg |
| Belt Speed |
0.23 m/s Bidirectional |
| X-Ray Generator Voltage |
140kV (optional 160kV) |
| Wire Detectability |
40 AWG |
| Spatial Resolution |
1.0 mm (Horizontal and Vertical) |
| Steel Penetration |
36 mm typical |
| Cooling System |
Sealed oil bath with forced air |
| Operating Temperature |
0°C – 40°C (32°F – 104°F) |
| Storage Temperature |
-20°C – 60°C (-4°F – 140°F) |
| Humidity |
Up to 95% non-condensing |
| Power Requirements |
220VAC ±10%, 50/60Hz, 10A Max |
Key Features
- 3D Perspective Technology: Offers a comprehensive view of threats by displaying objects from multiple angles.
- 7-Color Imaging System: Displays scanned objects in 7 distinct colors, each representing a specific atomic number range.
- Zeff 7.8.9 Scan Function: Highlights potential threats such as explosives and narcotics during the scanning process in real-time.
- Dual-Energy Technology: Differentiates between metallic and organic materials by color-coding them for easier detection.
- Real-Time Image Processing: Allows operators to enhance and process images without pausing the conveyor belt, improving throughput.
- Customizable Viewing Options: Split-screen and full-screen options enable optimal viewing for security operators.
Applications
- Airports: Ensures the safety of passengers by providing efficient luggage screening.
- Border Crossings: Detects concealed items such as weapons and narcotics at high-security checkpoints.
- Government Buildings: Protects sensitive environments with advanced threat detection capabilities.
- Hotels and Shopping Malls: Secures public spaces by scanning bags and parcels for potential threats.
- Military Installations: Provides enhanced security for high-risk areas.
Price of Zorpro HP-SE100100S X-Ray Baggage Scanner in Bangladesh (BD)
The price of
Zorpro X-Ray Baggage Scanner varies from time to time depending on the market. The
X-Ray Baggage Scanner ensures thorough and efficient security screening, making it essential for airports, government buildings, and high-security environments. Designed for precision, it quickly detects hidden threats while maintaining fast, reliable operation.
When you buy an X-Ray Baggage Scanner from
Crystal Vision Solutions, you receive authentic, high-quality products, competitive pricing, and expert customer support. Crystal Vision Solutions provides fast shipping and tailored advice, thus ensuring you find the best security solution for your needs.
