The

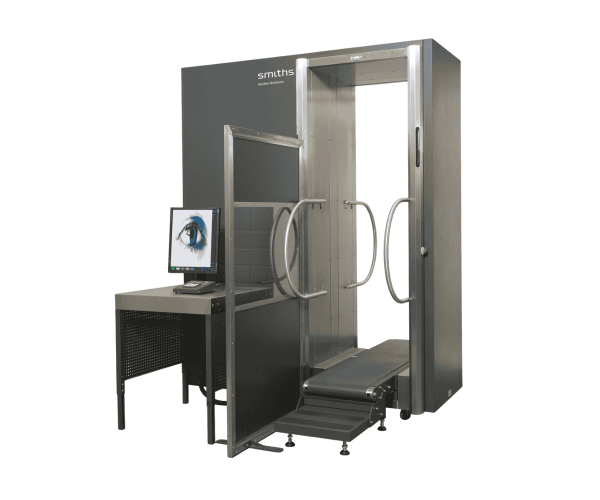

Smiths Detection B-SCAN™ 16HR-DV X-Ray Scanner is an advanced X-ray people screening system designed to detect contraband and threats both externally on the body and internally in body cavities. This dual-view system provides full body imaging and high-resolution torso scans simultaneously, ensuring a thorough inspection in less than seven seconds. It is engineered for high-throughput environments, including prisons, customs, and border crossings, making it a fast and effective tool for detecting hidden weapons, explosives, narcotics, and other illicit items.
Smiths Detection B-SCAN™ 16HR-DV X-Ray Scanner Specifications
| Specification |
Details |
| Detection Capability |
Metals, ceramics, plastics, powders, explosives, narcotics |
| Scan Type |
Full body scan with dual view |
| Scan Time |
< 7 seconds |
| Conveyor Load Capacity |
> 220 kg (485 lb) |
| Dimensions |
2585 mm (L) x 2525 mm (H) x 2350 mm (W) (101.8" x 99.4" x 92.5") |
| Weight |
990 kg |
| Operating Temperature |
0°C to 40°C |
| Storage Temperature |
-20°C to 60°C |
| Power Consumption |
< 1.0 kVA |
| Radiation Dose per Inspection |
< 4.5 µSv |
| Image Display |
Dual images: Full body and high-resolution torso |
| Monitor |
Special color TFT monitor |
| Noise Level |
< 70 dB |
Key Features
- Dual-View Imaging: Generates two simultaneous images—full body and high-resolution torso—for enhanced detection.
- Non-Intrusive Screening: Detects contraband hidden inside the body, beneath clothing, or in artificial limbs using low-dose transmission X-ray technology.
- Fast Scanning: Each scan takes less than 7 seconds, allowing for high throughput in busy security checkpoints.
- High Sensitivity: Detects a wide range of materials, including metals, ceramics, plastics, powders, and narcotics.
- Low Radiation Dose: Less than 4.5μSv per inspection, ensuring safety while delivering clear, accurate images.
- Easy-to-Use Interface: Equipped with advanced image processing software and zoom functions, making image evaluation efficient for operators.
- State-of-the-Art Safety: Built with robust safety systems to monitor radiation generation and dose levels in real-time.
- Proven Reliability: With over 10 years of field experience, the B-SCAN™ is a well-engineered and reliable solution.
Applications
- Prisons: Detects weapons, drugs, and other contraband hidden on or inside the body.
- Customs and Border Crossings: Ensures no illegal items are smuggled into or out of a country.
- Government Buildings: Enhances security for high-profile personnel and visitors.
- Transportation Hubs: Provides fast, thorough screening for airports, seaports, and train stations.
Price of Smiths Detection B-SCAN™ 16HR-DV X-Ray Scanner in Bangladesh
Buy an
Archway Metal Detector for its high accuracy, fast detection, and reliable security screening. Ideal for airports, schools, and large events, this detector ensures efficient walkthrough inspections and enhanced safety. When you purchase from
Crystal Vision Solutions, you get authentic products, competitive pricing, and exceptional customer service. With fast delivery and expert support, Crystal Vision Solutions provides a seamless buying experience for all your security needs.
