The

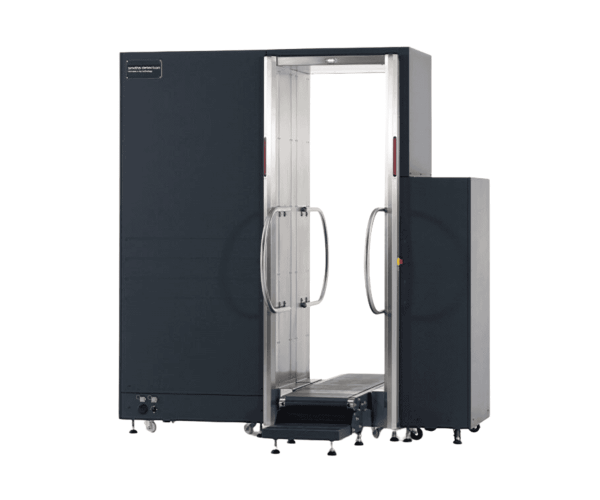

Smiths Detection B-SCAN™ 16HR-FB X-Ray Scanner is an advanced security solution designed for screening individuals to detect concealed items both inside and outside the body. With its low-dose transmission X-ray technology, this system provides a non-intrusive, thorough full-body scan that reveals hidden contraband and threats such as weapons, explosives, narcotics, electronic devices, precious metals, and more. The scanner's high-resolution imaging enables fast, accurate analysis in high-security environments like prisons, customs checkpoints, and border crossings.
Smiths Detection B-SCAN™ 16HR-FB X-Ray Scanner Specifications
| Specification |
Details |
| Detection Capability |
Metal, ceramic, plastics, powders, explosives, narcotics |
| Scan Type |
Full body scan in a single inspection pass |
| Scan Time |
< 7 seconds |
| Conveyor Load Capacity |
> 220 kg (485 lb) |
| Dimensions |
2585 mm (L) x 2525 mm (H) x 1955 mm (W) (101.8” x 99.4” x 76.9”) |
| Weight |
820 kg |
| Operating Temperature |
0°C to 40°C |
| Storage Temperature |
-20°C to 60°C |
| Power Consumption |
< 0.9 kVA |
| Radiation Dose per Inspection |
< 2.0 µSv |
| Noise Level |
< 70 dB |
| Image Display |
High-resolution, full-body image |
| Monitor |
Special color TFT monitor |
Key Features
- Full Body Scan: Provides a complete head-to-toe inspection in a single pass, detecting objects concealed internally or externally on the body.
- High Throughput: The B-SCAN™ system ensures fast scanning, with a cycle time of less than 7 seconds. Therefore, making it ideal for busy security checkpoints.
- Low Dose Radiation: Delivers a safe, minimal dose rate of less than 2.0 µSv per inspection. Thus, ensuring safe use while providing clear, detailed images.
- Enhanced Image Processing: State-of-the-art image enhancement software with zoom and filter functions facilitates efficient and precise threat evaluation.
- Proven Reliability: Backed by over ten years of field experience, the B-SCAN™ 16HR-FB is a reliable and well-engineered solution for security needs.
- Adaptability: The system can be configured as a standalone unit or networked with central data storage. This allows seamless integration into existing security operations.
Applications
- Prisons: Detects contraband like drugs, weapons, and other forbidden items hidden inside or on the body.
- Customs and Border Crossings: The scanner thoroughly screens individuals. Thus, ensuring no illegal items are smuggled across borders.
- Government Facilities: Enhances security in sensitive locations by detecting hidden objects and contraband.
- Transportation Hubs: Improves safety by screening individuals for concealed weapons or other prohibited items.
Price of Smiths Detection B-SCAN™ 16HR-FB X-Ray Scanner in Bangladesh
Buy an
Archway Metal Detector for its high accuracy, fast detection, and reliable security screening. Ideal for airports, schools, and large events, this detector ensures efficient walkthrough inspections and enhanced safety. When you purchase from
Crystal Vision Solutions, you get authentic products, competitive pricing, and exceptional customer service. With fast delivery and expert support, Crystal Vision Solutions provides a seamless buying experience for all your security needs.
