The

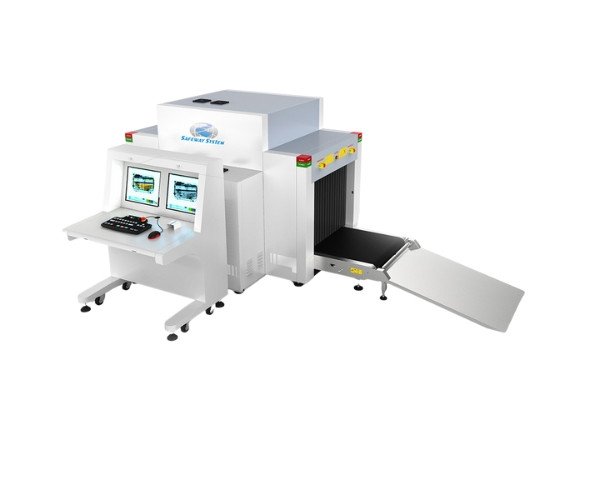

SecuScan AT8065D Industrial X-Ray Machine is designed to enhance security screening for large baggage, luggage, and cargo. It features dual-view scanning with two 140KV X-ray generators. Displaying images from top-to-bottom and left-to-right perspectives on separate screens, this powerful scanner provides a comprehensive inspection angle for superior detection of concealed threats. Engineered with global standard components like Japan’s Hammatsu detection technology and the UK’s Sens-tech board, the AT8065D ensures reliable, precise imaging.
Built to function in high-traffic environments like airports, bus stations, and logistics hubs, this machine provides multilingual operation, efficient energy-saving design, and a threat alert system for explosive and narcotics detection. Equipped for continuous operation up to 10,000 hours, the AT8065D optimizes throughput in busy settings, ensuring fast, accurate, and reliable scanning.
SecuScan AT8065D Industrial X-Ray Machine Specifications
| Feature |
Specification |
| Tunnel Size |
813 mm (L) x 650.5 mm (W) |
| X-Ray Generators |
2 x 140KV, oil cooling, dual-view |
| Conveyor Speed |
0.22 m/s |
| Conveyor Max Load |
200 kg |
| Conveyor Height |
306 mm |
| Unit Dimensions |
4278 mm (L) x 1481 mm (W) x 1190.7 mm (H) |
| Penetration Capability |
Typical 34mm steel for both perspectives |
| Wire Resolution |
Typical AWG36 (top); AWG40 (lateral) |
| Image Enhancement |
1-64x enlargement, color/BW, high/low penetration |
| Image Storage Capacity |
Up to 50,000 images; supports JPG, BMP, PNG, etc. |
| Additional Functions |
Time/date display, dual-direction scanning, diagnostic tools |
Key Features
- Dual-View Imaging: Enhanced dual perspectives (top-to-bottom, left-to-right) for better inspection accuracy.
- High-Penetration Capabilities: Typical 34mm steel penetration ensures thorough scans, even through dense objects.
- Advanced Threat Detection: Classifies materials and detects explosives, narcotics, and other contraband.
- High-Capacity Image Storage: Archive up to 50,000 images, with support for six file formats.
- Multilingual & User-Friendly: Operate in multiple languages, with a secure access key and simple user management.
Applications
- Airports: Ensures passenger and cargo safety with effective large luggage screening.
- Logistics Centers: Ideal for inspecting parcels and cargo in transit.
- Transportation Hubs: Widely used in bus and subway stations to increase public safety.
- Hospitality: Hotels can utilize it for screening incoming baggage.
Price of SecuScan AT8065D Industrial X-Ray Machine in Bangladesh (BD)
The
X-Ray Baggage Scanner ensures thorough and efficient security screening, making it essential for airports, government buildings, and high-security environments. Designed for precision, it quickly detects hidden threats while maintaining fast, reliable operation.
When you buy an X-Ray Baggage Scanner from
Crystal Vision Solutions, you receive authentic, high-quality products, competitive pricing, and expert customer support. Crystal Vision Solutions provides fast shipping and tailored advice, thus ensuring you find the best security solution for your needs.
