The

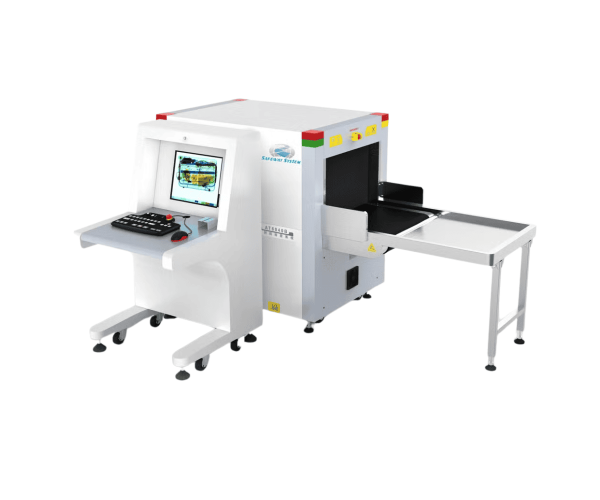

SecuScan AT6040B X-Ray Baggage Scanner is a high-performance security system designed for the inspection of small baggage, parcels, suitcases, and handbags. This scanner is specifically tailored for international markets where this dimension is more frequently required. Equipped with a 160kV X-ray generator, the AT6040B ensures high-quality image resolution and deep penetration for accurate threat detection.
This model is widely used in diverse public and commercial infrastructures, including shopping malls, schools, subways, and factories. The system includes multilingual functionality and advanced features such as automatic self-diagnosis, continuous 10,000-hour operation, and an energy-efficient design. It also incorporates secure access keys and a simple, one-key shutdown for easy operation.
SecuScan AT6040B X-Ray Baggage Scanner Specifications
| Feature |
Specification |
| Tunnel Size |
615 mm (L) x 418 mm (W) |
| Conveyor Speed |
0.22 m/s |
| Conveyor Max Load |
150 kg |
| Conveyor Height |
680 mm |
| Unit Weight |
455 kg |
| Unit Dimensions |
2648 mm (L) x 844 mm (W) x 1234 mm (H) |
| Penetration |
Typical 38 mm steel, guaranteed 34 mm steel |
| Wire Resolution |
Typical AWG40, guaranteed AWG38 |
| X-Ray Generator |
140KV or 160KV, oil-cooled, from bottom to top |
| Image Enhancement |
1-64x enlargement, Color/BW, high/low penetration, pseudo-color |
| Image Archive Capacity |
Up to 50,000 images stored automatically |
| Additional Functions |
Time/date display, counters, system logs, dual-direction scanning |
Key Features
- Dual Power X-Ray Generator: Equipped with either a 140kV or 160kV X-ray generator for deep penetration and excellent threat detection.
- 600 x 400 mm Tunnel Size: Ideal for screening small baggage, parcels, and suitcases, meeting international security requirements.
- High-Resolution Imaging: Provides 1-64x enlargement, with multiple imaging modes such as color/BW, negative, and pseudo color, ensuring high-quality image inspection.
- Energy-Efficient Design: Reduces energy consumption while delivering continuous performance, making it an eco-friendly choice for high-traffic areas.
- Advanced Threat Detection: Alerts for drugs and explosives, as well as material classification for quick identification of potential hazards.
- Multilingual Operation: Supports multiple languages, making it suitable for international deployment.
- Continuous Operation: Can operate continuously for over 10,000 hours without performance degradation, ensuring reliability in high-demand environments.
Applications
- Retail & Shopping Malls: Enhances security by screening handbags, shopping bags, and other small items at entry points.
- Public Transit & Subways: Ensures the safety of passengers by detecting potential threats in luggage and handbags.
- Schools & Universities: Screens student bags for concealed items, providing a safer educational environment.
- Factories & Industrial Facilities: Inspects deliveries and employee belongings to prevent contraband or hazardous materials from entering the premises.
