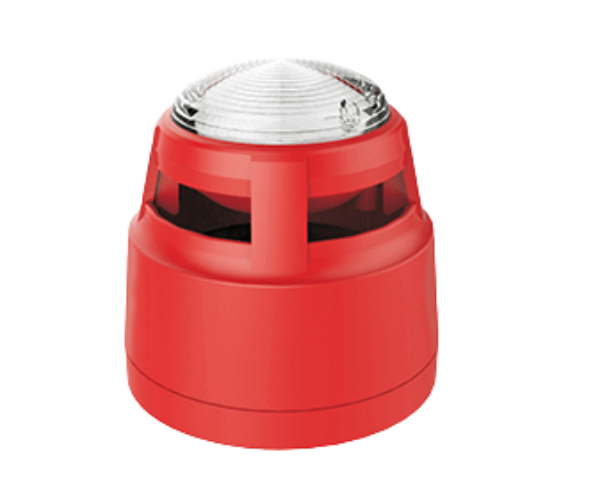

About the SANJIANG A9091T Loop Powered Sounder Visual Indicator
The
SANJIANG A9091T Loop Powered Sounder Visual Indicator is an advanced signaling device that combines an audible alarm and a visual light to deliver clear emergency notifications. With 16 tone options and a synchronized light output, it ensures both auditory and visual alerts in various environments. Its loop-powered design makes installation simple, while its IP65 rating ensures durability.
Specification
| Feature |
Specification |
| Brand |
SANJIANG |
| Model |
A9091T |
| Type |
Loop Powered Sounder with Visual Indicator |
| Operating Voltage |
20-30V DC |
| Current Consumption |
5-25mA |
| Sound Output |
105dB at 1 meter |
| Frequency Range |
2.5kHz +/- 10% |
| Tone Type |
Continuous, Pulse, 16 Tones Available |
| Visual Indicator |
Flashing LED Light |
| Sounder Type |
Piezo Electric |
| Material |
ABS Plastic |
| Mounting |
Surface Mount (Wall and Ceiling) |
| Temperature Range |
-10°C to +55°C |
| Ingress Protection |
IP65 |
| Dimensions |
120mm x 120mm x 60mm |
| Certification |
CE, UL, ROHS, EN54-3, EN54-23 compliant |
| Light Output Synchronization |
Yes |
| Design |
Upper and Lower Covers with Independent Base for Easy Installation |
Description
SANJIANG A9091T Loop Powered Sounder Visual Indicator in Bangladesh
The
SANJIANG A9091T Loop Powered Sounder Visual Indicator is available for purchase in Bangladesh, offering a reliable, energy-efficient solution for fire and emergency alarm systems. Its dual alerting system, including 16 selectable tones and a synchronized LED visual indicator, ensures clear, effective communication in both residential and industrial settings.
User Experience of SANJIANG A9091T Loop Powered Sounder Visual Indicator
Customers report high satisfaction with the
SANJIANG A9091T Loop Powered Sounder Visual Indicator, especially for its ease of installation and effective alerting system. The device is praised for its clear, loud sound output (105dB) and visible flashing LED light, which ensures alarms are both seen and heard, even in noisy environments. Users also appreciate the 16 tone options and the ability to synchronize the light output, offering flexibility in meeting specific alarm system needs. Additionally, the product's IP65 rating makes it suitable for use in both indoor and outdoor environments, providing reliable performance in diverse conditions.
Why Choose the SANJIANG A9091T Loop Powered Sounder Visual Indicator?
The
SANJIANG A9091T Loop Powered Sounder Visual Indicator offers an exceptional combination of features, making it a versatile and reliable choice for any alarm system. With its loop-powered design, it simplifies installation and reduces wiring complexity. The 105dB sound output and synchronized flashing LED light ensure that the alarm is both audible and visible. The device offers 16 selectable tones, allowing customization to suit various environments and applications. It meets the rigorous standards of
EN54-3 and
EN54-23, ensuring compliance with fire alarm regulations. With a durable, IP65-rated housing and a design that allows for easy installation, debugging, and maintenance, the
SANJIANG A9091T is the ideal solution for fire, security, and emergency signaling.
Key Features
- EN54-3 and EN54-23 Compliant: Meets European standards for fire alarm signaling systems.
- Loop Powered: Directly powered by the alarm system loop, reducing the need for extra power sources.
- Dual Alerting System: Combines 105dB sound output with a flashing LED visual indicator.
- 16 Tone Options: Offers flexibility with 16 different tones, including continuous and pulse sounds.
- Light Output Synchronization: Ensures that multiple devices flash in sync for a coordinated visual alert.
- Efficient LED Technology: High-efficiency LEDs and specially designed lenses provide bright and visible alerts.
- Durable Design: IP65-rated for protection against dust and water, making it suitable for both indoor and outdoor use.
- Easy Installation: Upper and lower covers with independent base for simple installation, debugging, and maintenance.
- Temperature Range: Operates between -10°C to +55°C, ensuring reliability in diverse environments.
- Energy Efficient: Low current consumption (5-25mA) for prolonged use without draining the system.
- Certified: CE, UL, and ROHS compliant for safety and environmental standards.
Setup the SANJIANG A9091T Loop Powered Sounder Visual Indicator
- Select Installation Location: Choose a visible and audible spot for the SANJIANG A9091T, easily accessible for future maintenance.
- Prepare Mounting Surface: Clean and level the surface to ensure stability during installation.
- Mount the Device: Secure the device to the wall or ceiling using the provided screws and brackets.
- Connect the Wiring: Follow the wiring diagram, ensuring correct polarity and secure connections.
- Test the Device: Power on the system and verify both sound and visual indicators are functioning.
- Adjust Settings: Adjust tone and volume as needed.
- Final Inspection: Check wiring for security and clean the installation area.
Where It Can Be Used?
The
SANJIANG A9091T Loop Powered Sounder Visual Indicator is ideal for use in a variety of applications:
- Fire Alarm Systems: For fire emergency signaling with clear audio and visual alerts.
- Security Systems: Suitable for intruder alarms or other security notifications.
- Industrial Environments: For signaling hazards, machine malfunctions, or safety issues in factories and warehouses.
- Outdoor Applications: With an IP65 rating, it’s perfect for use in harsh weather conditions.
- General Emergency Signaling: Useful in any emergency or evacuation scenario where both visual and audible alerts are needed.
What is the Price of SANJIANG A9091T Loop Powered Sounder Visual Indicator in Bangladesh?
The latest price of
SANJIANG A9091T Loop Powered Sounder Visual Indicator in Bangladesh depends on quantity.
Crystal Vision Solution ensure this product has the best market price in Bangladesh. Our product is 100% original and lowest price in Bangladesh. All kinds of services are the best in Bangladesh, and contact us for any information and latest price.
