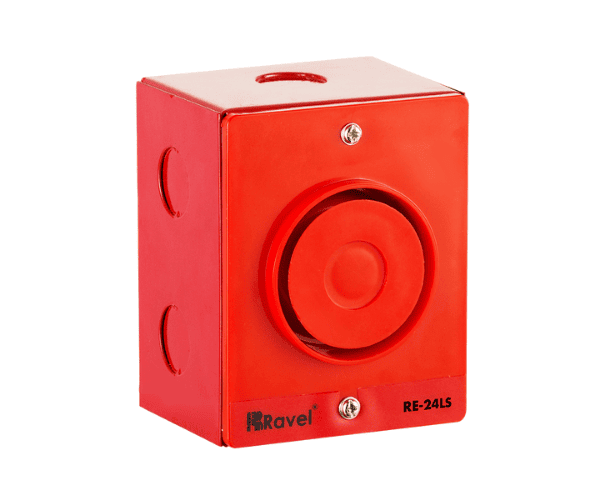

About the Ravel RE-24LS Loop Powered Sounder
The
Ravel RE-24LS Loop Powered Sounder is a high-performance audio signaling device designed for alarm and emergency systems. It operates directly from the loop, making it energy-efficient and easy to install. This sounder provides clear, loud notifications and is built to last in both indoor and outdoor environments.
Specification
| Feature |
Specification |
| Brand |
Ravel |
| Model |
RE-24LS |
| Type |
Loop Powered Sounder |
| Operating Voltage |
20-30V DC |
| Current Consumption |
3-25mA |
| Sound Output |
100dB at 1 meter |
| Frequency Range |
2.5kHz +/- 10% |
| Mounting |
Surface Mount |
| Temperature Range |
-25°C to +70°C |
| Ingress Protection |
IP65 |
| Dimensions |
105mm x 105mm x 57mm |
| Certification |
CE, UL, ROHS compliant |
Description
Ravel RE-24LS Loop Powered Sounder in Bangladesh
The
Ravel RE-24LS Loop Powered Sounder is available for purchase in Bangladesh, providing customers with a cost-effective and reliable solution for alarm systems. It's commonly used in fire, security, and industrial signaling systems to enhance safety and compliance.
User Experience of Ravel RE-24LS Loop Powered Sounder
Customers who use the
Ravel RE-24LS Loop Powered Sounder report satisfaction with its clear, high-volume sound output, especially in noisy environments. The loop-powered design reduces installation complexity and cost, while its durability ensures long-term performance. The IP65 rating ensures that it is resilient in harsh outdoor conditions, making it a preferred choice for various safety applications.
Why Choose the Ravel RE-24LS Loop Powered Sounder?
The
Ravel RE-24LS Loop Powered Sounder is an excellent choice for those seeking a dependable and cost-effective signaling solution. It stands out due to its loop-powered design, eliminating the need for an external power supply and ensuring energy efficiency. The high sound output, wide temperature range, and durable construction make it a versatile option for both indoor and outdoor use. With CE, UL, and ROHS compliance, this sounder meets high standards of safety and quality.
Key Features
- Loop Powered: Works directly from the system loop, reducing the need for additional wiring and power sources.
- Loud Sound Output: Emits a 100dB sound at 1 meter, ensuring that alerts are heard clearly in noisy environments.
- Durability: Rated IP65 for ingress protection, allowing for use in both indoor and outdoor environments.
- Wide Operating Temperature: Can operate in temperatures ranging from -25°C to +70°C, making it suitable for diverse climates.
- Compact and Easy to Install: Its small design ensures that it fits easily into a variety of spaces without compromising on performance.
- Compliance: Meets CE, UL, and ROHS standards for safety and environmental compatibility.
Setup the RE-24LS Loop Powered Sounder
- Choose the Mounting Location: Select a location close to your control panel or alarm system for easy wiring.
- Mount the Sounder: Attach the RE-24LS Loop Powered Sounder to the wall or surface using the mounting screws provided.
- Connect the Wiring: Connect the sounder to the system loop according to the provided wiring diagram, ensuring correct polarity.
- Test the Sounder: Power the system and test the sounder by triggering a test alarm to confirm it functions properly.
- Adjust Settings if Necessary: If applicable, adjust the volume or tone settings as per your system’s requirements.
Where It Can Be Used?
The
Ravel RE-24LS Loop Powered Sounder can be used in:
- Fire Alarm Systems: To provide clear audio alerts during fire emergencies.
- Security Systems: As a signaling device for intruder detection and other security alerts.
- Industrial Settings: To warn of equipment malfunctions, safety hazards, or machinery failures.
- Outdoor Signaling: Perfect for use in outdoor safety systems due to its IP65 weatherproof rating.
- Emergency Notification Systems: To alert people of critical situations like gas leaks or system faults.
What is the Price of Ravel RE-24LS Loop Powered Sounder in Bangladesh?
The latest price of
Ravel RE-24LS Loop Powered Sounder in Bangladesh depends on quantity.
