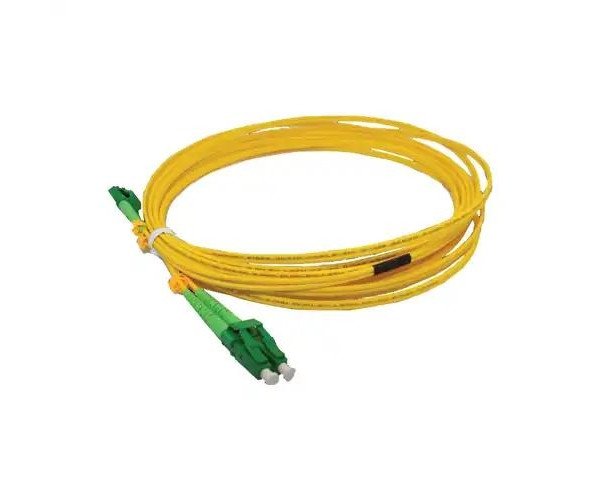

Safenet 5 Meter SM Duplex Fiber LC/APC Patch Cord (Model: 2422-3051YL) is designed to deliver superior performance in fiber optic connectivity. Whether you’re linking two LC/APC-equipped devices or ensuring high-speed data transmission, this patch cord ensures optimal signal quality with minimal attenuation. Made with a
9/125μm single-mode fiber, it is ideal for long-distance communication, thus offering exceptional reliability for both
static and
dynamic applications.
Specifications of the Safenet 5 Meter SM Duplex Fiber LC/APC Patch Cord (Model: 2422-3051YL)
| Specification |
Details |
| Brand |
Safenet |
| Model |
2422-3051YL |
| Length |
5 meters |
| Fiber Type |
Single-mode 9/125μm |
| Connector Type |
LC/APC |
| Buffer Diameter |
0.9 ± 0.05 mm |
| Cladding Diameter |
125 ± 1.0 μm |
| Attenuation (1310nm) |
≤ 0.4 dB/km |
| Attenuation (1550nm) |
≤ 0.3 dB/km |
| Tensile Strength (Short Term) |
120N |
| Crush Resistance |
500N/100mm |
| Bending Radius (Dynamic) |
60 mm |
| Bending Radius (Static) |
30 mm |
| Color |
White |
| Sheave Material |
Four sheaves of china yarn for added durability |
Key Features
- High-Performance Fiber Core: Features a 9/125μm single-mode fiber core, ideal for long-distance, high-speed data transmission.
- Low Attenuation: Offers low signal loss with 0.4 dB/km at 1310nm and 0.3 dB/km at 1550nm for superior signal quality over long distances.
- Durability and Strength: It is constructed with four sheaves of china yarn for additional strength. Therefore, providing resistance to loads up to 120N and crush resistance of 500N/100mm.
- Tight Buffer Fiber: The tight buffer fiber with a diameter of 0.9mm ensures enhanced protection and flexibility.
- Flexible Bending Radius: It can support a bending radius of 60mm for dynamic applications and 30mm for static installations. Therefore, offering versatility in various environments.
- Robust Construction: Designed for long-term reliability with durable materials that withstand demanding conditions in telecommunications, data centers, and enterprise networks.
Benefits of the Safenet 5 Meter SM Duplex Fiber LC/APC Patch Cord
- Superior Signal Quality: With low attenuation rates, this patch cord ensures excellent signal integrity, even over long distances. Thus, making it perfect for high-performance networking environments.
- Durable Construction: It is built with four sheaves of china yarn. The patch cord offers resistance to crushing and tensile loads, thus ensuring long-lasting performance.
- Flexible and Versatile: The tight buffer fiber design and flexible bending radius make this patch cord easy to install without compromising performance.
- Enhanced Connectivity: The LC/APC connectors are optimized to reduce signal loss. Therefore, providing reliable and efficient fiber optic communication.
