The

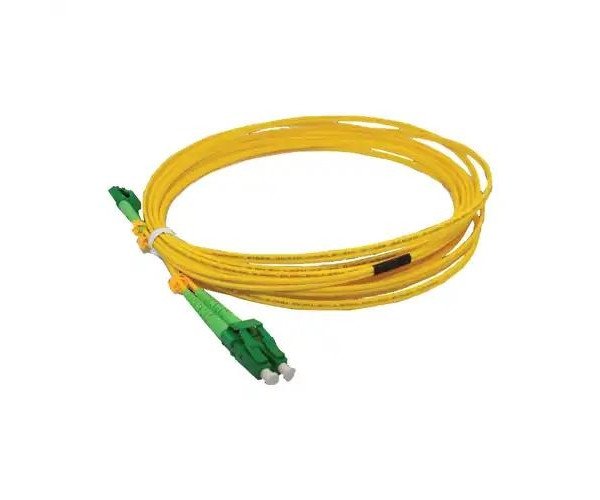

Safenet 1 Meter SM Duplex Fiber LC/APC Patch Cord (Model: 2422-3011YL) delivers high-quality fiber optic connectivity for LC/APC-equipped devices, thus ensuring reliable and efficient signal transmission. Designed with a 9/125μm single-mode fiber core, it supports long-distance data transmission with minimal signal loss. The LC/APC connectors are precisely engineered to ensure low insertion loss and excellent signal performance. It has a tight buffer fiber and reinforced by four sheaves of china yarn. This patch cord offers long-term durability in both dynamic and static environments.
Specifications of the Safenet 1 Meter SM Duplex Fiber LC/APC Patch Cord (Model: 2422-3011YL)
| Specification |
Details |
| Brand |
Safenet |
| Model |
2422-3011YL |
| Length |
1 meter |
| Fiber Type |
Single-mode 9/125μm |
| Connector Type |
LC/APC |
| Buffer Diameter |
0.9 ± 0.05 mm |
| Cladding Diameter |
125 ± 1.0 μm |
| Attenuation (1310nm) |
≤ 0.4 dB/km |
| Attenuation (1550nm) |
≤ 0.3 dB/km |
| Tensile Strength (Short Term) |
120N |
| Crush Resistance |
500N/100mm |
| Bending Radius (Dynamic) |
60 mm |
| Bending Radius (Static) |
30 mm |
| Color |
White |
| Sheave Material |
Four sheaves of china yarn for added strength |
Key Features
- High-Quality Fiber Core: Features a 9/125μm single-mode fiber core, perfect for long-distance, high-speed data transmission.
- Low Attenuation: Ensures excellent signal quality with attenuation levels of 0.4 dB/km at 1310nm and 0.3 dB/km at 1550nm.
- Durable Construction: Built with four sheaves of china yarn for enhanced strength and endurance, providing long-lasting performance.
- Flexible Installation: It has a tight buffer fiber and a bending radius of 60mm (dynamic) and 30mm (static). This offers flexibility in different environments.
- Compact Length: The 1-meter length is perfect for shorter runs. Therefore, minimizing clutter in server rooms or data centers while providing efficient connectivity.
- Crush Resistance: Offers a crush resistance of 500N/100mm, ensuring durability under high pressure, ideal for industrial and enterprise environments.
Benefits of the Safenet 1 Meter SM Duplex Fiber LC/APC Patch Cord
- Reliable Signal Quality: The low attenuation of 0.4 dB/km at 1310nm and 0.3 dB/km at 1550nm ensures high-performance, long-distance data transmission.
- Durable Design: With crush resistance and tensile strength, this patch cord can withstand demanding conditions, ensuring longevity and reliability.
- Flexible Installation Options: The 1-meter length and flexible bending radius make it easy to install in tight spaces while maintaining excellent performance.
- Optimized for Short-Distance Runs: This patch cord’s length makes it perfect for efficient cable management in data centers, reducing clutter and ensuring high-speed connectivity.
Price of Safenet 1 Meter SM Duplex Fiber LC/APC Patch Cord in Bangladesh
Safenet cables are renowned for their superior performance and reliability in both residential and commercial network setups. Designed for high-speed data transmission, these cables minimize signal interference, ensuring seamless connectivity for your devices. Safenet UTP cables deliver unmatched quality, durability, and enhanced protection against electromagnetic interference (EMI).
When purchasing Safenet cables,
Crystal Vision Solutions is your trusted partner. With a reputation for offering high-quality products and exceptional customer service,
Crystal Vision Solutions ensures you receive genuine Safenet cables at competitive prices. Their knowledgeable team provides expert advice, helping you choose the right products for your specific needs. Additionally,
Crystal Vision Solutions guarantees fast delivery, secure transactions, and ongoing support for all your networking requirements.
Buying from
Crystal Vision Solutions not only ensures the reliability of your network but also provides peace of mind with every purchase.
