Fortinet FG-501E-BDL NGFW Middle-Range Series FortiGate 501E BDL

Product id: 1457
Stock: In Stock
Model: Model

Based on 0 reviews. - Write a review

WhatsApp Inquiry

Key Features

- Brand: Fortinet
- Model: FG-501E-BDL
- Firewall: 36 Gbps
- IPS: 5.5 Gbps
- NGFW: 5 Gbps
- Threat Protection: 4.7 Gbps

View more info

DISCLAIMER

Please confirm availability before completing your purchase by calling us.

The actual product may vary in size, color, and layout compared to the website display images. Claims will not be accepted for image discrepancies.

We reserve the right to change the price of any product at any time due to the volatile nature of technology prices.

We cannot guarantee that the information on this page is 100% accurate. Crystal Vision Solutions not responsible for any results obtained from using this information.

Main Features
DRAM (RAM)	Not specified
Flash Memory	2 × 240 GB SSD (total 480 GB)
Physical Specification
Dimensions	44.45 × 432 × 380
Weight	7.5 kg (16.6 lb)
Form Factor	1 RU rack-mountable
Performance
Firewall Throughput	36 Gbps (1518/512 byte, UDP)
VPN Throughput	20 Gbps (IPsec, 512 byte)
Maximum Concurrent Sessions	8,000,000 TCP sessions
Power Source
Power Supply	Internal (hot-swappable, optional redundant)
Power Input	100–240 V AC, 50/60 Hz
Temperature
Operating Temperature	0 °C to 40 °C

Parameter	Details
Type	FortiGate-501E Hardware plus FortiCare and FortiGuard Unified (UTM) Protection
Interfaces and Modules
10 GE SFP+ Slots	2
GE SFP Slots	8
GE RJ45 Interfaces	8
GE RJ45 Management Ports	1
USB Ports	2
RJ45 Console Port	1
Local Storage	2 x 240 GB SSD
Included Transceivers	2 x SFP (SX 1 GE)
System Performance and Capacity
IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP)	36 / 36 / 22 Gbps
IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP)	36 / 36 / 22 Gbps
Firewall Latency (64 byte, UDP)	2 μs
Firewall Throughput (Packet per Second)	33 Mpps
Concurrent Sessions (TCP)	8 Million
New Sessions/Second (TCP)	300,000
Firewall Policies	10,000
IPsec VPN Throughput (512 byte)	5 Gbps
Client-to-Gateway IPsec VPN Tunnels	50,000
SSL-VPN Throughput	5 Gbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode)	10,000
SSL Inspection Throughput (IPS, avg. HTTPS)	5.7 Gbps
SSL Inspection CPS (IPS, avg. HTTPS)	3,500
Application Control Throughput (HTTP 64K)	14 Gbps
CAPWAP Throughput (1444 byte, UDP)	18 Gbps
Virtual Domains (Default / Maximum)	10 / 10
Maximum Number of FortiSwitches Supported	48
Maximum Number of FortiAPs (Total / Tunnel)	512 / 256
Maximum Number of FortiTokens	5,000
Maximum Number of Registered FortiClients	2,000
High Availability Configurations	Active-Active, Active-Passive, Clustering
System Performance — Enterprise Traffic Mix
IPS Throughput	5.2 Gbps
NGFW Throughput	5 Gbps
Threat Protection Throughput	4.7 Gbps
Dimensions and Power
Height x Width x Length	1.75 x 17.0 x 15.0 inches
	44.45 x 432 x 380 mm
Form Factor	1 RU
AC Power Supply	100–240V AC, 60–50 Hz
Power Consumption (Average / Maximum)	105 W / 200 W
Current (Maximum)	6A
Heat Dissipation	613 BTU/h
Redundant Power Supplies	Optional
Operating Environment and Certifications
Operating Temperature	32–104°F (0–40°C)
Storage Temperature	-31–158°F (-35–70°C)
Humidity	10–90% non-condensing
Noise Level	43 dBA
Operating Altitude	Up to 7,400 ft (2,250 m)
Compliance	FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB
Certifications	ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; USGv6/IPv6

Fortinet FG-501E-BDL NGFW Middle-Range Series FortiGate 501E BDL

Overview

The FG-501E-BDL is part of Fortinet's Next-Generation Firewall (NGFW) middle-range series, designed for mid-sized to large enterprises. It includes the FortiGate-501E hardware and FortiCare and FortiGuard Unified (UTM) Protection services. This firewall offers flexibility for deployment at both the campus or enterprise branch level, delivering comprehensive security features.

Quick Spec

Parameter	Details
SKU	FG-501E-BDL
Firewall	36 Gbps
IPS	5.5 Gbps
NGFW	5 Gbps
Threat Protection	4.7 Gbps
Interfaces	2 x 10GE SFP+ slots
	8 x GE SFP slots
	8 x GE RJ45 ports
	1 x GE RJ45 management ports

Product Details

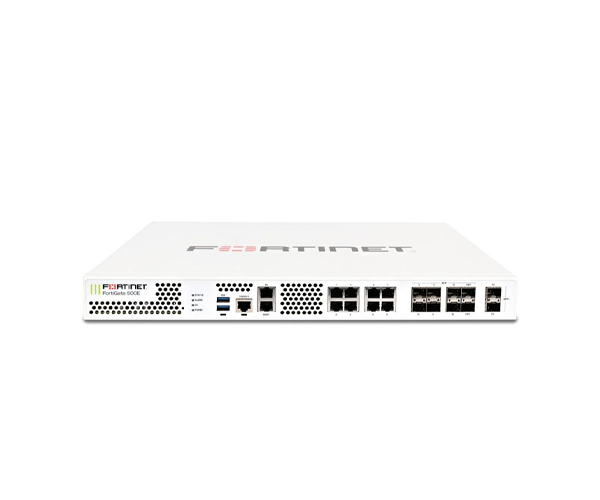

Front View:

2 USB Ports
1 Console Port
2 x GE RJ45 MGMT/HA Ports
8 x GE SFP Slots
8 x GE RJ45 Ports
2 x 10 GE SFP+ Slots

Rear View:

Similar to FG-500E with necessary components.

Optional Accessories & Spares

SKU	Description
FG-TRAN-LX	1 GE SFP LX transceiver module for all systems with SFP and SFP/SFP+ slots
FG-TRAN-GC	1 GE SFP RJ45 transceiver module for all systems with SFP and SFP/SFP+ slots
FG-TRAN-SX	1 GE SFP SX transceiver module for all systems with SFP and SFP/SFP+ slots
FG-TRAN-SFP+SR	10 GE SFP+ transceiver module, short range for all systems with SFP+ and SFP/SFP+ slots
FG-TRAN-SFP+LR	10 GE SFP+ transceiver module, long range for all systems with SFP+ and SFP/SFP+ slots
SP-CABLE-ADASFP+	10 GE SFP+ active direct attach cable, 10m / 32.8 ft for all systems with SFP+ and SFP/SFP+ slots
SP-FG300E-PS	AC power supply for FG-300/301E, FG-400/401E, FG-500/501E, FG-600/601E, FAZ-200F/300F/800F and FMG-200F/300F

Comparison with FG-501E

SKU	FG-501E	FG-501E-BDL
Firewall	36 Gbps	36 Gbps
IPS	5.5 Gbps	5.5 Gbps
NGFW	5 Gbps	5 Gbps
Threat Protection	4.7 Gbps	4.7 Gbps
Interfaces	2 x 10GE SFP+ slots	2 x 10GE SFP+ slots
	8 x GE SFP slots	8 x GE SFP slots
	8 x GE RJ45 ports	8 x GE RJ45 ports
	1 x GE RJ45 management ports	1 x GE RJ45 management ports
Local Storage	2 x 240 GB SSD	2 x 240 GB SSD
Bundle	N/A	FortiCare and FortiGuard Unified (UTM) Protection
