| Type |

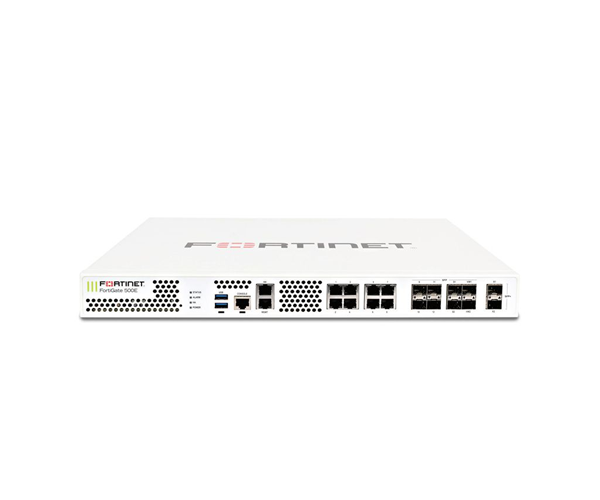

Fortinet FG-500E Hardware plus 1 Year 8x5 FortiCare and FortiGuard UTM Bundle |
| Interfaces and Modules |
|
| 10 GE SFP+ Slots |
2 |
| GE SFP Slots |
8 |
| GE RJ45 Interfaces |
8 |
| GE RJ45 Management Ports |
1 |
| USB Ports |
2 |
| RJ45 Console Port |
1 |
| Local Storage |
NIL |
| Included Transceivers |
2 x SFP (SX 1 GE) |
| System Performance and Capacity |
|
| IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) |
36 / 36 / 22 Gbps |
| IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP) |
36 / 36 / 22 Gbps |
| Firewall Latency (64 byte, UDP) |
2 μs |
| Firewall Throughput (Packet per Second) |
33 Mpps |
| Concurrent Sessions (TCP) |
8 Million |
| New Sessions/Second (TCP) |
300,000 |
| Firewall Policies |
10,000 |
| IPsec VPN Throughput (512 byte) |
5 Gbps |
| Client-to-Gateway IPsec VPN Tunnels |
50,000 |
| SSL-VPN Throughput |
5 Gbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) |
10,000 |
| SSL Inspection Throughput (IPS, avg. HTTPS) |
5.7 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) |
3,500 |
| Application Control Throughput (HTTP 64K) |
14 Gbps |
| CAPWAP Throughput (1444 byte, UDP) |
18 Gbps |
| Virtual Domains (Default / Maximum) |
10 / 10 |
| Maximum Number of FortiSwitches Supported |
48 |
| Maximum Number of FortiAPs (Total / Tunnel) |
512 / 256 |
| Maximum Number of FortiTokens |
5,000 |
| Maximum Number of Registered FortiClients |
2,000 |
| High Availability Configurations |
Active-Active, Active-Passive, Clustering |
| System Performance — Enterprise Traffic Mix |
|
| IPS Throughput |
5.2 Gbps |
| NGFW Throughput |
5 Gbps |
| Threat Protection Throughput |
4.7 Gbps |
| Dimensions and Power |
|
| Height x Width x Length |
1.75 x 17.0 x 15.0 inches |
|
44.45 x 432 x 380 mm |
| Form Factor |
1 RU |
| AC Power Supply |
100–240V AC, 60–50 Hz |
| Power Consumption (Average / Maximum) |
95 W / 193 W |
| Current (Maximum) |
6A |
| Heat Dissipation |
613 BTU/h |
| Redundant Power Supplies |
Optional |
| Operating Environment and Certifications |
|
| Operating Temperature |
32–104°F (0–40°C) |
| Storage Temperature |
-31–158°F (-35–70°C) |
| Humidity |
10–90% non-condensing |
| Noise Level |
43 dBA |
| Operating Altitude |
Up to 7,400 ft (2,250 m) |
| Compliance |
FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB |
| Certifications |
ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; USGv6/IPv6 |
